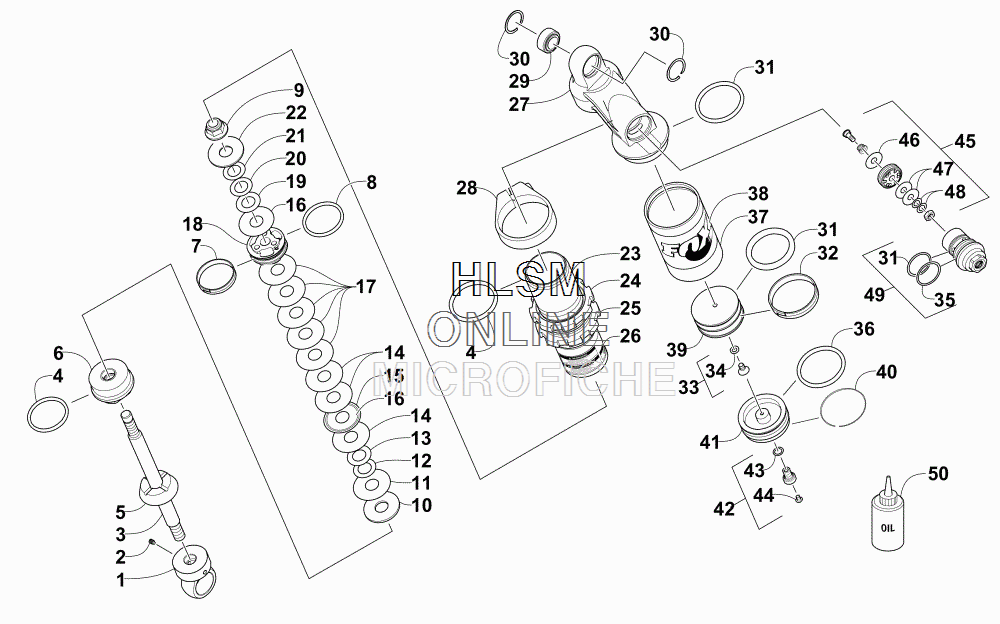

SUSPENSION FRONT - FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-311 SHOCK ABSORBER
    SHOCK ABSORBER
  • 1
    3604-842 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    1603-940 SCREW, SET
    SCREW, SET
  • 3
    3604-895 ROD, SHOCK
    ROD, SHOCK
  • 4
    2603-849 KIT, SEAL/REBUILD (INC. 5-9)
    KIT, SEAL/REBUILD (INC. 5-9)
  • 5
    3604-530 ...BUMPER
    ...BUMPER
  • 6
    2604-413 ...BEARING - ASSEMBLY
    ...BEARING - ASSEMBLY
  • 7
    2603-994 ...STRAP, PISTON
    ...STRAP, PISTON
  • 8
    2604-214 ...O-RING
    ...O-RING
  • 9
    0603-301 ...NUT, CAP - FOX SHOCK
    ...NUT, CAP - FOX SHOCK
  • 10
    0603-540 WASHER, TOP OUT-1.125OD X .378 ID X.093
    WASHER, TOP OUT-1.125OD X .378 ID X.093
  • 11
    0603-349 VALVE, (1.300 X 0.008 IN.)
    VALVE, (1.300 X 0.008 IN.)
  • 12
    0603-333 VALVE, (0.800 X 0.006 IN.)
    VALVE, (0.800 X 0.006 IN.)
  • 13
    0603-337 VALVE, (0.900 X 0.008 IN.)
    VALVE, (0.900 X 0.008 IN.)
  • 14
    0603-890 VALVE, (1.300 X 0.015 IN.)
    VALVE, (1.300 X 0.015 IN.)
  • 15
    3604-788 VALVE, RING - (1.250 X 0.012 IN.)
    VALVE, RING - (1.250 X 0.012 IN.)
  • 16
    0603-343 VALVE, (1.100 X 0.008 IN.)
    VALVE, (1.100 X 0.008 IN.)
  • 17
    0603-891 VALVE, (1.300 X 0.012 IN.)
    VALVE, (1.300 X 0.012 IN.)
  • 18
    2603-987 PISTON, HIGH FLOW
    PISTON, HIGH FLOW
  • 19
    3604-171 VALVE, (0.600 X 0.004 IN.)
    VALVE, (0.600 X 0.004 IN.)
  • 20
    0603-731 VALVE, (0.700 X 0.004 IN.)
    VALVE, (0.700 X 0.004 IN.)
  • 21
    0603-895 VALVE, (0.800 X 0.004 IN.)
    VALVE, (0.800 X 0.004 IN.)
  • 22
    3604-170 WASHER, TOP OUT
    WASHER, TOP OUT
  • 23
    3604-729 BODY, SHOCK
    BODY, SHOCK
  • 24
    2604-841 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 25
    2604-840 NUT, ADJUSTER
    NUT, ADJUSTER
  • 26
    3603-418 DECAL, WARNING
    DECAL, WARNING
  • 27
    3604-522 END CAP, SHOCK/RESERVOIR (INC. 28-30)
    END CAP, SHOCK/RESERVOIR (INC. 28-30)
  • 28
    3604-532 ...CLAMP, BODY/END CAP
    ...CLAMP, BODY/END CAP
  • 29
    3604-526 ...BEARING
    ...BEARING
  • 30
    3604-527 ...RING, RETAINING
    ...RING, RETAINING
  • 31
    3604-539 KIT, REBUILD - RESERVOIR (INC. 32-36 AND 42-44)
    KIT, REBUILD - RESERVOIR (INC. 32-36 AND 42-44)
  • 32
    1603-235 ...STRAP, PISTON
    ...STRAP, PISTON
  • 33
    1604-316 ...SCREW, MACHINE W/O-RING (INC. 34)
    ...SCREW, MACHINE W/O-RING (INC. 34)
  • 34
    1604-425 ......O-RING(FOX ONLY)
    ......O-RING(FOX ONLY)
  • 35
    2603-502 ......O-RING
    ......O-RING
  • 36
    0603-671 ......O-RING
    ......O-RING
  • 37
    3604-528 RESERVOIR
    RESERVOIR
  • 38
    3603-378 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 39
    3604-524 PISTON, INTERNAL FLOATING
    PISTON, INTERNAL FLOATING
  • 40
    0604-992 RING, RETAINING
    RING, RETAINING
  • 41
    2603-525 END CAP,RESERVOIR-ASSY 1.834 BORE (INC. 36 AND 42-43)
    END CAP,RESERVOIR-ASSY 1.834 BORE (INC. 36 AND 42-43)
  • 42
    0703-341 ...VALVE,PRESSURE-ASS Y (INC. 43)
    ...VALVE,PRESSURE-ASS Y (INC. 43)
  • 43
    1604-318 ......O-RING
    ......O-RING
  • 44
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 45
    3604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 46-48)
    PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 46-48)
  • 46
    0603-331 VALVE, (0.700 X 0.008 IN.)
    VALVE, (0.700 X 0.008 IN.)
  • 47
    2603-501 VALVE, (0.700 X 0.010 IN.)
    VALVE, (0.700 X 0.010 IN.)
  • 48
    3604-165 PLATE, BACKUP
    PLATE, BACKUP
  • 49
    2603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 35)
    CARTRIDGE, DAMPING ADJUSTER (INC. 35)
  • 50
    5639-530 OIL, SHOCK - (1 QT)
    OIL, SHOCK - (1 QT)
