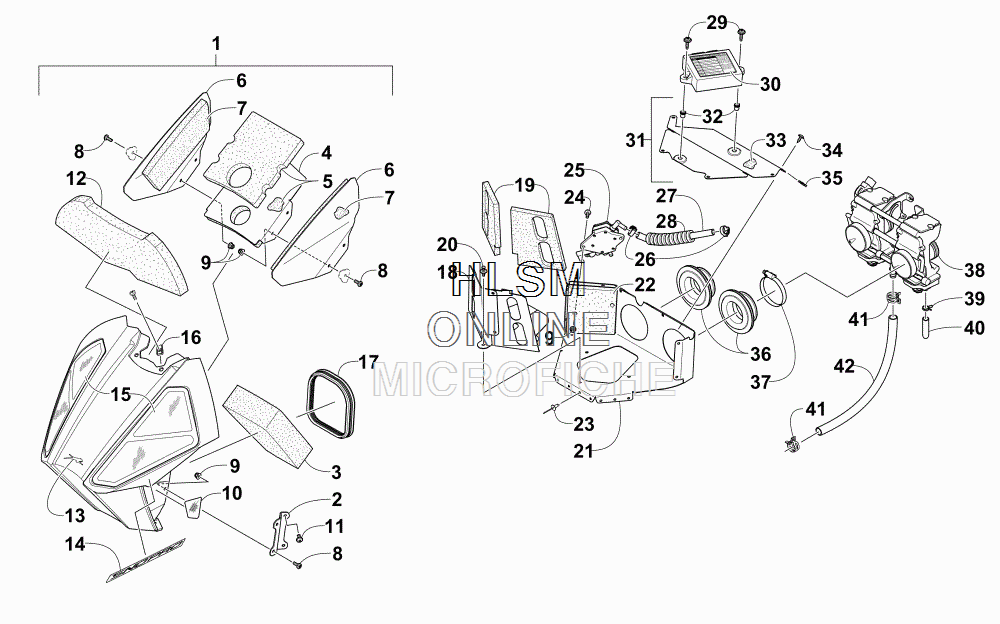

AIR SILENCER- CARBURETOR- AND FUEL PUMP ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска`

№

Артикул

Название
1

1770-063 BUMPER, FRONT/AIR SILENCER (INC. 2-10)

BUMPER, FRONT/AIR SILENCER (INC. 2-10)

70 300 ₽
2

1770-008 ...BRACKET, MOUNTING - RIGHT

...BRACKET, MOUNTING - RIGHT

2 700 ₽
2

1770-009 ...BRACKET, MOUNTING - LEFT

...BRACKET, MOUNTING - LEFT

3 110 ₽
3

0617-677 ...FOAM, AIR INTAKE - LOWER

...FOAM, AIR INTAKE - LOWER

3 740 ₽
4

2670-304 ...PLATE, BAFFLE

...PLATE, BAFFLE

2 490 ₽
5

0617-695 ...FOAM, BAFFLE PLATE

...FOAM, BAFFLE PLATE

2 070 ₽
6

2670-246 ...PLATE, AIR INTAKE

...PLATE, AIR INTAKE

2 910 ₽
7

0617-690 ...FOAM, INTAKE PLATE - RIGHT

...FOAM, INTAKE PLATE - RIGHT

1 240 ₽
7

0617-691 ...FOAM, INTAKE PLATE - LEFT

...FOAM, INTAKE PLATE - LEFT

1 240 ₽
8

8477-620 ...SCREW, MACHINE

...SCREW, MACHINE

110 ₽
9

8427-602 ...NUT, LOCK

...NUT, LOCK

440 ₽
10

9611-390 ...DECAL, REFLECTOR - RIGHT - AMBER

...DECAL, REFLECTOR - RIGHT - AMBER

3 320 ₽
10

9611-391 ...DECAL, REFLECTOR - LEFT - AMBER

...DECAL, REFLECTOR - LEFT - AMBER

3 320 ₽
11

0423-609 SCREW, MACHINE

SCREW, MACHINE

150 ₽
12

0617-679 FOAM, AIR INTAKE - UPPER

FOAM, AIR INTAKE - UPPER

7 480 ₽
13

4411-479 DECAL - "AIRCAT"

DECAL - "AIRCAT"

810 ₽
14

2621-314 DECAL, AIR SILENCER

DECAL, AIR SILENCER

770 ₽
15

6606-432 SCREEN, AIR INTAKE - RIGHT

SCREEN, AIR INTAKE - RIGHT

6 860 ₽
15

6606-433 SCREEN, AIR INTAKE - LEFT

SCREEN, AIR INTAKE - LEFT

6 860 ₽
16

0423-577 CLIP, U-NUT

CLIP, U-NUT

210 ₽
17

0617-603 SEAL, AIR INTAKE

SEAL, AIR INTAKE

2 070 ₽
18

2670-263 CLOSE-OFF, INTAKE

CLOSE-OFF, INTAKE

2 700 ₽
19

0617-150 FOAM, AIR INTAKE - RIGHT

FOAM, AIR INTAKE - RIGHT

980 ₽
19

0617-151 FOAM, AIR INTAKE - LEFT

FOAM, AIR INTAKE - LEFT

3 320 ₽
20

0623-362 CLIP, RETAINING

CLIP, RETAINING

110 ₽
21

2670-262 PLATE, INTAKE - UPPER

PLATE, INTAKE - UPPER

12 270 ₽
22

0617-139 FOAM, UPPER INTAKE PLATE

FOAM, UPPER INTAKE PLATE

980 ₽
23

8060-706 RIVET

RIVET

60 ₽
24

8476-625 SCREW, MACHINE

SCREW, MACHINE

270 ₽
25

1670-230 PUMP,FUEL W/O OIL INLET

PUMP,FUEL W/O OIL INLET

11 230 ₽
26

0124-045 CLAMP, HOSE

CLAMP, HOSE

400 ₽
27

0610-007 HOSE, IMPULSE 3/16 25

HOSE, IMPULSE 3/16 25

15 390 ₽
28

1619-359 CONDUIT, FLEXIBLE - (5 FT)

CONDUIT, FLEXIBLE - (5 FT)

3 110 ₽
29

0423-609 SCREW, MACHINE

SCREW, MACHINE

150 ₽
30

8611-706 DECAL, DIAGNOSTIC CODES

DECAL, DIAGNOSTIC CODES

1 870 ₽
31

0770-992 PLATE,AIR SILENCER-UPR W/INSERT (INC. 32-35)

PLATE,AIR SILENCER-UPR W/INSERT (INC. 32-35)

5 190 ₽
32

0423-391 ...INSERT

...INSERT

540 ₽
33

0617-171 ...FOAM, AIR INTAKE COVER

...FOAM, AIR INTAKE COVER

2 070 ₽
34

1623-129 ...SCREW, SELF-TAPPING

...SCREW, SELF-TAPPING

230 ₽
35

1623-052 ...CLIP, U-NUT

...CLIP, U-NUT

150 ₽
36

2670-247 BOOT, INTAKE

BOOT, INTAKE

4 150 ₽
37

0423-019 CLAMP

CLAMP

380 ₽
38

2670-335 CARBURETOR

CARBURETOR

130 ₽
39

0623-652 CLAMP, HOSE

CLAMP, HOSE

270 ₽
40

0610-442 HOSE, DRAIN (1.5")

HOSE, DRAIN (1.5")

670 ₽
41

1623-197 CLAMP, HOSE (14MM)

CLAMP, HOSE (14MM)

420 ₽
42

0410-143 HOSE, GASLINE - (25 FT)

HOSE, GASLINE - (25 FT)

32 440 ₽
