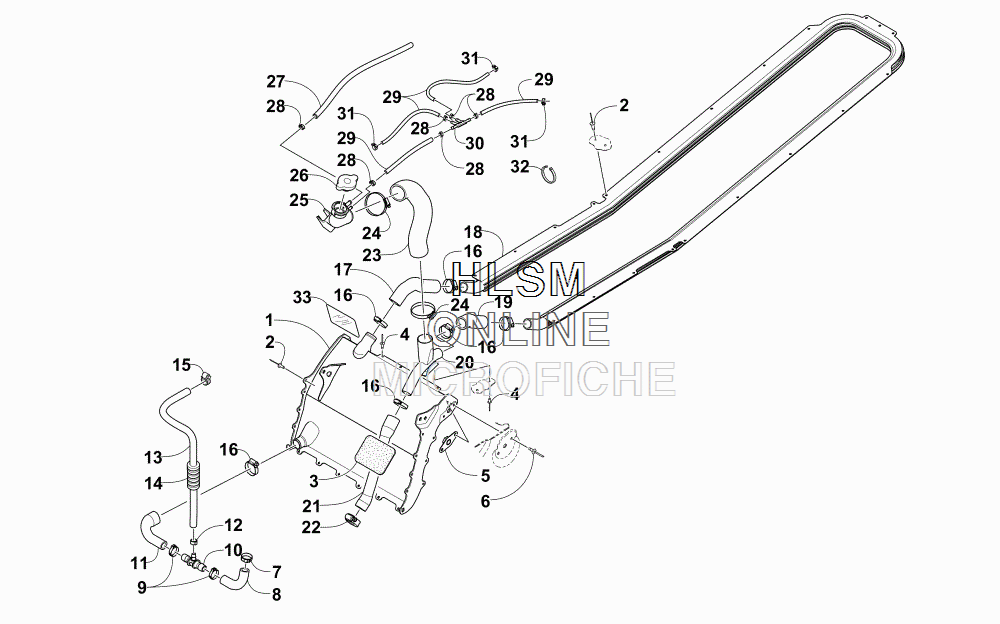

COOLING ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10713-103 EXCHANGER, HEAT - FRONTEXCHANGER, HEAT - FRONT
-
28060-706 RIVETRIVET
-
30617-498 PAD, FOAMPAD, FOAM
-
48060-702 RIVETRIVET
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVETRIVET
-
71623-418 CLAMP, HOSECLAMP, HOSE
-
80613-125 HOSE, COOLANT - ENGINE/T-FITTINGHOSE, COOLANT - ENGINE/T-FITTING
-
91623-350 CLAMP, HOSECLAMP, HOSE
-
101623-988 T-FITTINGT-FITTING
-
110613-126 HOSE, COOLANT - T-FITTING/FRONT HEAT EXCHANGERHOSE, COOLANT - T-FITTING/FRONT HEAT EXCHANGER
-
120610-581 CLAMP, HOSECLAMP, HOSE
-
130610-878 HOSE, COOLANTHOSE, COOLANT
-
140619-776 CONDUIT - (5 FT)CONDUIT - (5 FT)
-
150623-373 CLAMP, HOSECLAMP, HOSE
-
162623-088 CLAMP, HOSECLAMP, HOSE
-
170613-122 HOSE, COOLANT - FRONT/REAR HEAT EXCHANGERHOSE, COOLANT - FRONT/REAR HEAT EXCHANGER
-
180613-113 EXCHANGER, HEAT - REAREXCHANGER, HEAT - REAR
-
190613-123 HOSE, COOLANT - REAR HEAT EXCHANGER/COOLANT JUNCTIONHOSE, COOLANT - REAR HEAT EXCHANGER/COOLANT JUNCTION
-
200713-111 JUNCTION, COOLANTJUNCTION, COOLANT
-
210613-054 HOSE, COOLANT - COOLANT JUNCTION/THERMOSTATHOSE, COOLANT - COOLANT JUNCTION/THERMOSTAT
-
221623-229 CLAMP, HOSECLAMP, HOSE
-
230613-112 HOSE, COOLANT - FILLER NECK/COOLANT JUNCTIONHOSE, COOLANT - FILLER NECK/COOLANT JUNCTION
-
240423-317 CLAMP, HOSE - 32/50 (NORMA 962)CLAMP, HOSE - 32/50 (NORMA 962)
-
250613-030 NECK, FILLERNECK, FILLER
-
262606-284 CAPCAP
-
270610-692 HOSE, OIL/WATER - (25 FT)HOSE, OIL/WATER - (25 FT)
-
270610-693 HOSE, OIL - (100 FT)HOSE, OIL - (100 FT)
-
281623-655 CLAMP, HOSECLAMP, HOSE
-
290610-538 HOSE, VENT - (25 FT) (1054-152)HOSE, VENT - (25 FT) (1054-152)
-
300610-717 FITTING, DOUBLE-TFITTING, DOUBLE-T
-
310623-063 CLAMP, HOSECLAMP, HOSE
-
320123-788 TIE, CABLE - (8 IN.)TIE, CABLE - (8 IN.)
-
330619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
