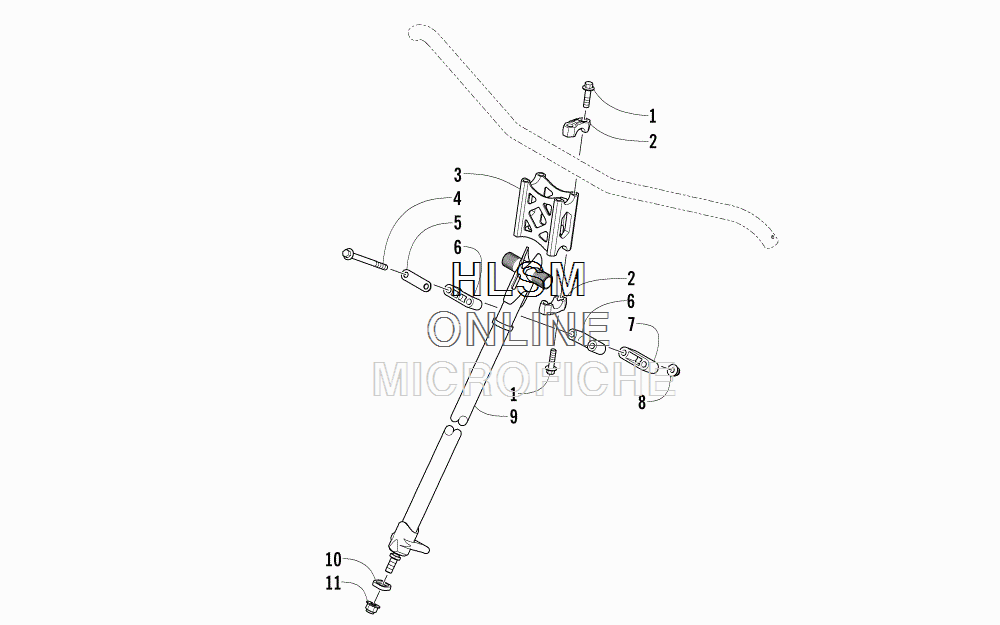

STEERING POST ASSEMBLY для Arctic Cat ZR 6000 R SX (GREEN) [S2015ACDPRUSG] - 2015 года выпуска
-
№АртикулНазвание
-
18408-830 SCREW, CAPSCREW, CAP
-
21605-118 CAP, STEERINGCAP, STEERING
-
31605-112 BLOCK, RISER - (3.5 IN.)BLOCK, RISER - (3.5 IN.)
-
31605-086 BLOCK, RISER - (2.0 IN.) (OPTIONAL)BLOCK, RISER - (2.0 IN.) (OPTIONAL)
-
31605-063 BLOCK, RISER - (3.0 IN.) (OPTIONAL)BLOCK, RISER - (3.0 IN.) (OPTIONAL)
-
31605-035 BLOCK, RISER - (4.5 IN.) (OPTIONAL)BLOCK, RISER - (4.5 IN.) (OPTIONAL)
-
31605-073 BLOCK, RISER (OPTIONAL)BLOCK, RISER (OPTIONAL)
-
31605-034 BLOCK, RISER - (6.5 IN). (OPTIONAL)BLOCK, RISER - (6.5 IN). (OPTIONAL)
-
31605-070 BLOCK, RISER - (7.5 IN.) (OPTIONAL)BLOCK, RISER - (7.5 IN.) (OPTIONAL)
-
31605-071 BLOCK, RISER - (8.5 IN.) (OPTIONAL)BLOCK, RISER - (8.5 IN.) (OPTIONAL)
-
48408-800 SCREW, CAPSCREW, CAP
-
50605-722 PLATE, RETAININGPLATE, RETAINING
-
60605-576 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
71605-092 STAND-OFF, MOUNTING BLOCK - (26 MM)STAND-OFF, MOUNTING BLOCK - (26 MM)
-
71605-095 STAND-OFF, MOUNTING BLOCK - (13 MM) (OPTIONAL)STAND-OFF, MOUNTING BLOCK - (13 MM) (OPTIONAL)
-
71605-096 STAND-OFF, MOUNTING BLOCK - (39 MM) (OPTIONAL)STAND-OFF, MOUNTING BLOCK - (39 MM) (OPTIONAL)
-
88427-802 NUT, LOCKNUT, LOCK
-
91705-459 POST, STEERINGPOST, STEERING
-
101605-089 SPACERSPACER
-
118427-002 NUT, LOCKNUT, LOCK
Все узлы модели:
- A-ARM AND SWAY BAR ASSEMBLY
- AIR SILENCER- CARBURETOR- AND FUEL PUMP ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR - EXTERNAL PARTS
- CARBURETOR - INTERNAL PARTS
- CHAIN CASE ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRICAL
- ELECTRICAL PANEL ASSEMBLY
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SHOCK ABSORBER ASSEMBLY
- GAS TANK AND TAILLIGHT ASSEMBLY
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND WIRING ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- PISTON AND CRANKSHAFT
- RECOIL STARTER
- REED VALVE ASSEMBLY
- SEAT ASSEMBLY
- SERVOMOTOR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- • STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- SUSPENSION FRONT - FRONT ARM ASSEMBLY
- SUSPENSION FRONT - FRONT ARM SHOCK ABSORBER
- SUSPENSION FRONT - SHOCK ABSORBER
- SUSPENSION REAR - REAR ARM ASSEMBLY
- SUSPENSION REAR - REAR ARM SHOCK ABSORBER
- THROTTLE CONTROL ASSEMBLY
- TIE ROD ASSEMBLY
- TRACK ASSEMBLY W/ SLIDE RAIL
- TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- WATER PUMP AND THERMOSTAT
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
