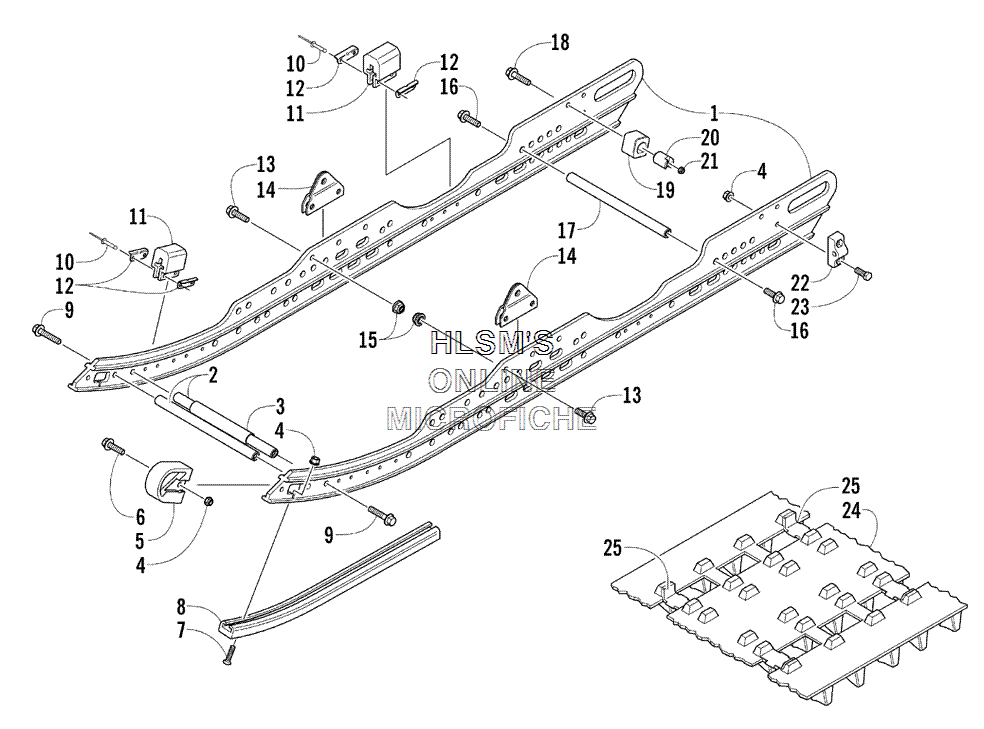

SLIDE RAIL AND TRACK ASSY. для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска

  • №
    Артикул
    Название
  • 24
    7998-004 COMPLETE SKID FRAME ASSY.
    COMPLETE SKID FRAME ASSY.
  • 1
    2604-646 RAIL 121, FORMED
    RAIL 121, FORMED
  • 2
    0604-426 SUPPORT, RAIL
    SUPPORT, RAIL
  • 3
    2604-623 SPACER
    SPACER
  • 4
    8047-366 NUT, LOCK
    NUT, LOCK
  • 5
    2604-507 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 6
    8020-042 SCREW, CAP-HFH 1/4-20 X 1.00 Z &
    SCREW, CAP-HFH 1/4-20 X 1.00 Z &
  • 7
    0123-859 SCREW, MACH-PHFH 1/4-20 X 1 1/8
    SCREW, MACH-PHFH 1/4-20 X 1 1/8
  • 8
    0604-640 WEARSTRIP, SLIDE RAIL (BLACK)
    WEARSTRIP, SLIDE RAIL (BLACK)
  • 9
    8020-134 SCREW, CAP-HFH 5/16-18 X 1.25 G
    SCREW, CAP-HFH 5/16-18 X 1.25 G
  • 10
    8060-633 RIVET, BLIND-DH AA614 BLK
    RIVET, BLIND-DH AA614 BLK
  • 11
    0604-918 PAD, SHOCK
    PAD, SHOCK
  • 12
    0604-967 BRACKET, RETAINING
    BRACKET, RETAINING
  • 13
    8020-131 SCREW, CAP-HFH 5/16-18 X0.875 G
    SCREW, CAP-HFH 5/16-18 X0.875 G
  • 14
    0704-395 BRACKET, MOUNTING ARM (FRONT)
    BRACKET, MOUNTING ARM (FRONT)
  • 15
    8048-426 NUT, LOCK
    NUT, LOCK
  • 16
    8020-223 SCREW, CAP-HFH 3/8-16 X 1.125 G
    SCREW, CAP-HFH 3/8-16 X 1.125 G
  • 17
    0604-930 AXLE, ALUMINUM
    AXLE, ALUMINUM
  • 18
    8020-226 SCREW, CAP-HFH 3/8-16 X 1.75 Z &
    SCREW, CAP-HFH 3/8-16 X 1.75 Z &
  • 19
    2604-545 BLOCK COUPLER ARM (REAR)
    BLOCK COUPLER ARM (REAR)
  • 20
    2604-046 BUSHING, COUPLER BLOCK
    BUSHING, COUPLER BLOCK
  • 21
    8041-486 NUT, LOCK
    NUT, LOCK
  • 22
    0704-352 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 23
    8002-042 SCREW, CAP-HH 1/4-20 X1.00 G5 Z
    SCREW, CAP-HH 1/4-20 X1.00 G5 Z
  • 24
    1602-504 TRACK ASSY. (INC. 25)
    TRACK ASSY. (INC. 25)
  • 25
    0602-488 CLIP, WEAR W/GUIDE
    CLIP, WEAR W/GUIDE
