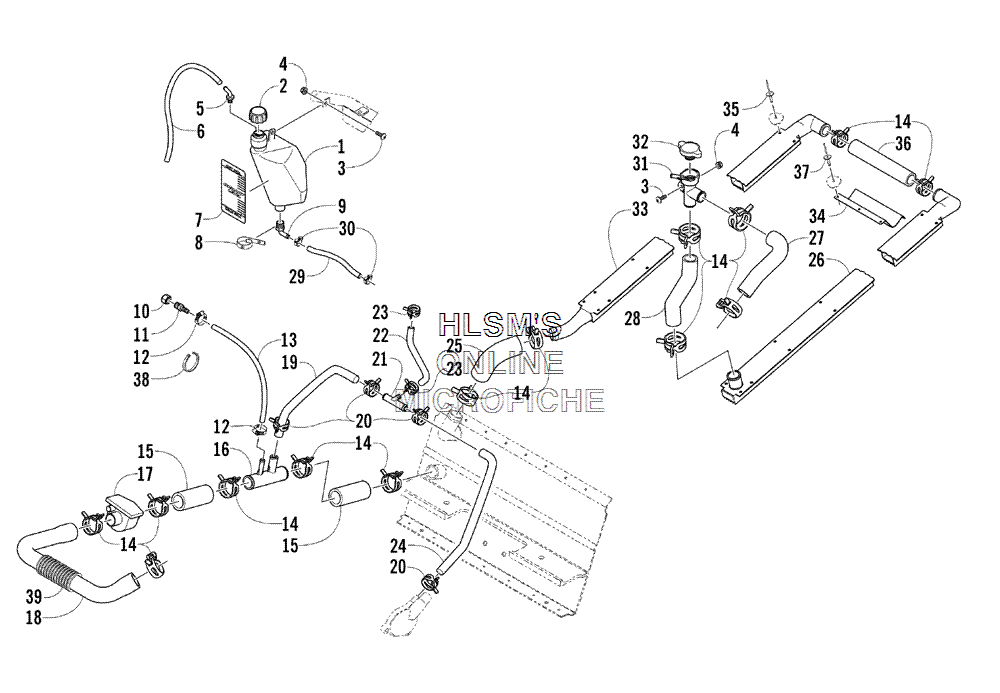

COOLING ASSY. для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска`
-
№АртикулНазвание
-
11670-246 TANK, COOLANTTANK, COOLANT
-
20670-035 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINE 1/4-20 X 3/4SCREW, MACHINE 1/4-20 X 3/4
-
48048-366 NUT, LOCK 1/4-20NUT, LOCK 1/4-20
-
50670-242 FITTING, VENT-90 DEGREEFITTING, VENT-90 DEGREE
-
60610-010 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
74611-093 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-075 FITTING, ELBOWFITTING, ELBOW
-
101670-303 PLUG, ADAPTERPLUG, ADAPTER
-
110623-976 ADAPTER, FITTINGADAPTER, FITTING
-
120623-373 CLAMP, HOSECLAMP, HOSE
-
130610-075 HOSE, COOLANT, DRAIN (10 FT)HOSE, COOLANT, DRAIN (10 FT)
-
140623-736 CLAMP, HOSECLAMP, HOSE
-
150610-539 HOSE, COOLANT, T, FITTINGHOSE, COOLANT, T, FITTING
-
162606-502 T, FITTING, DOUBLET, FITTING, DOUBLE
-
170609-182 HEATER, INNERLINEHEATER, INNERLINE
-
180610-453 HOSE, COOLANT, HEATER/ENGINEHOSE, COOLANT, HEATER/ENGINE
-
190610-520 HOSE, COOLANT, Y, FITTING/T, FITTINGHOSE, COOLANT, Y, FITTING/T, FITTING
-
201623-285 CLAMP, HOSECLAMP, HOSE
-
212606-625 Y, FITTINGY, FITTING
-
220610-518 HOSE, COOLANT, THROTTLE BODY/Y, FITTINGHOSE, COOLANT, THROTTLE BODY/Y, FITTING
-
231623-197 CLAMP, HOSECLAMP, HOSE
-
240610-519 HOSE, COOLANT, THERMOSTAT/Y, FITTINGHOSE, COOLANT, THERMOSTAT/Y, FITTING
-
250610-244 HOSE, COOLANT HEAT EXCHANGER (FRONT)/RIGHT HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER (FRONT)/RIGHT HEAT EXCHANGER
-
262706-079 HEAT EXCHANGER TUBE (LEFT)HEAT EXCHANGER TUBE (LEFT)
-
270610-500 HOSE, COOLANT, FILLER NECK/ENGINEHOSE, COOLANT, FILLER NECK/ENGINE
-
280610-488 HOSE, FILLER NECK/LEFT HEAT EXCHANGERHOSE, FILLER NECK/LEFT HEAT EXCHANGER
-
290610-015 HOSE, GAS 1/4 X100'HOSE, GAS 1/4 X100'
-
290610-016 HOSE, GAS 1/4 X25'HOSE, GAS 1/4 X25'
-
300124-045 CLAMP, HOSECLAMP, HOSE
-
312606-859 NECK, FILLERNECK, FILLER
-
322606-284 CAP, FILLER NECKCAP, FILLER NECK
-
330716-920 HEAT EXCHANGER TUBE (RIGHT)HEAT EXCHANGER TUBE (RIGHT)
-
340616-810 GUARD, HOSEGUARD, HOSE
-
358060-706 RIVET, BLIND-DH SS64 BLKRIVET, BLIND-DH SS64 BLK
-
360610-215 HOSE, COOLANT (REAR)HOSE, COOLANT (REAR)
-
378060-504 RIVET, BLIND-DH SS53 BLKRIVET, BLIND-DH SS53 BLK
-
380123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
390619-619 PROTECTOR, HOSEPROTECTOR, HOSE
