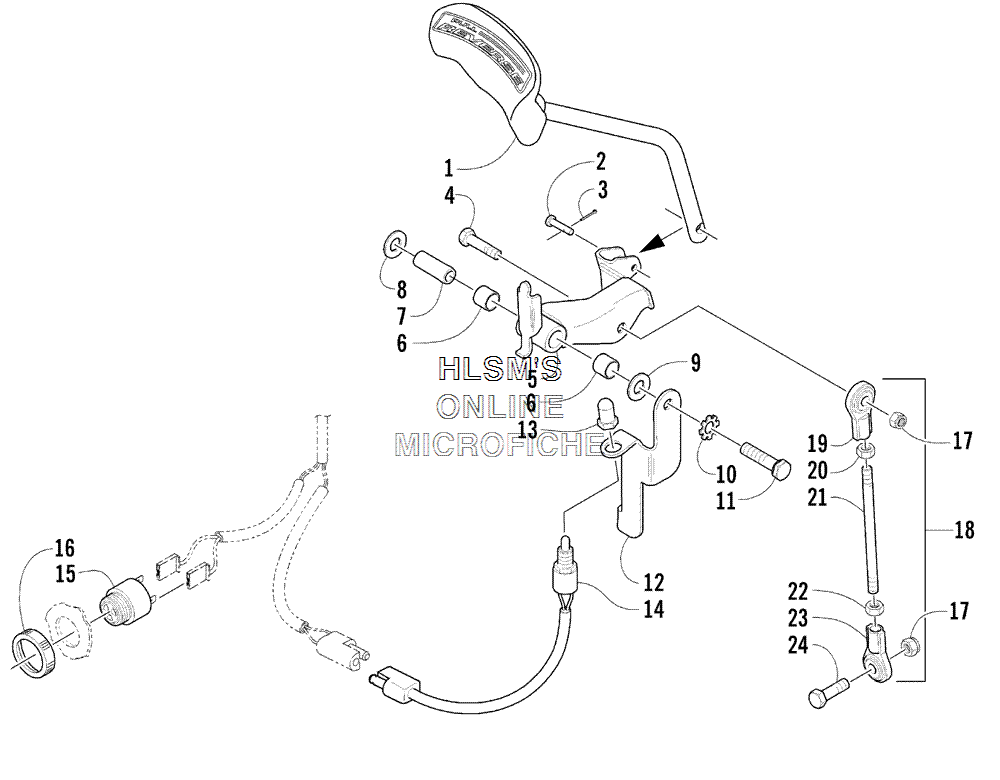

REVERSE SHIFT LEVER ASSY. для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0602-978 LEVER, REVERSE SHIFT
    LEVER, REVERSE SHIFT
  • 2
    0623-641 PIN, CLEVIS-3/16X1
    PIN, CLEVIS-3/16X1
  • 3
    0117-868 PIN, COTTER - 1/16 X 3/4
    PIN, COTTER - 1/16 X 3/4
  • 4
    8002-137 SCREW, CAP-HH 5/16-18 X2.00 G5
    SCREW, CAP-HH 5/16-18 X2.00 G5
  • 5
    0702-349 SHIFT PIVOT (INC. 6)
    SHIFT PIVOT (INC. 6)
  • 6
    0602-844 BUSHING
    BUSHING
  • 7
    0602-853 AXLE
    AXLE
  • 8
    8050-252 WASHER, FLAT- 5/16 X .875 X .06
    WASHER, FLAT- 5/16 X .875 X .06
  • 9
    8050-247 WASHER, FLAT- 5/16 X .688 X .06
    WASHER, FLAT- 5/16 X .688 X .06
  • 10
    8053-242 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 11
    8002-140 SCREW, CAP-HH 5/16-18 X2.75 G5
    SCREW, CAP-HH 5/16-18 X2.75 G5
  • 12
    0702-465 BRACKET, REVERSE SWITCH
    BRACKET, REVERSE SWITCH
  • 13
    0630-013 BOOT, SWITCH
    BOOT, SWITCH
  • 14
    0630-011 SWITCH, ALARM
    SWITCH, ALARM
  • 15
    0630-010 ALARM, REVERSE (INC. 16)
    ALARM, REVERSE (INC. 16)
  • 16
    0630-017 RING, RETAINING
    RING, RETAINING
  • 17
    8040-426 NUT, LOCK- NSL 5/16-18 Z & Y
    NUT, LOCK- NSL 5/16-18 Z & Y
  • 18
    0702-347 LINKAGE, SHIFTING, ASSY. (INC. 19, 23)
    LINKAGE, SHIFTING, ASSY. (INC. 19, 23)
  • 19
    0602-305 ROD END (LEFT)
    ROD END (LEFT)
  • 20
    0623-260 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 21
    0602-982 ROD, LINKAGE
    ROD, LINKAGE
  • 22
    0123-144 NUT, HEX-JAM 5/16-24 NF ZN
    NUT, HEX-JAM 5/16-24 NF ZN
  • 23
    0602-322 ROD END (RIGHT)
    ROD END (RIGHT)
  • 24
    8002-132 SCREW, CAP-HH 5/16-18 X1.00 G5
    SCREW, CAP-HH 5/16-18 X1.00 G5
