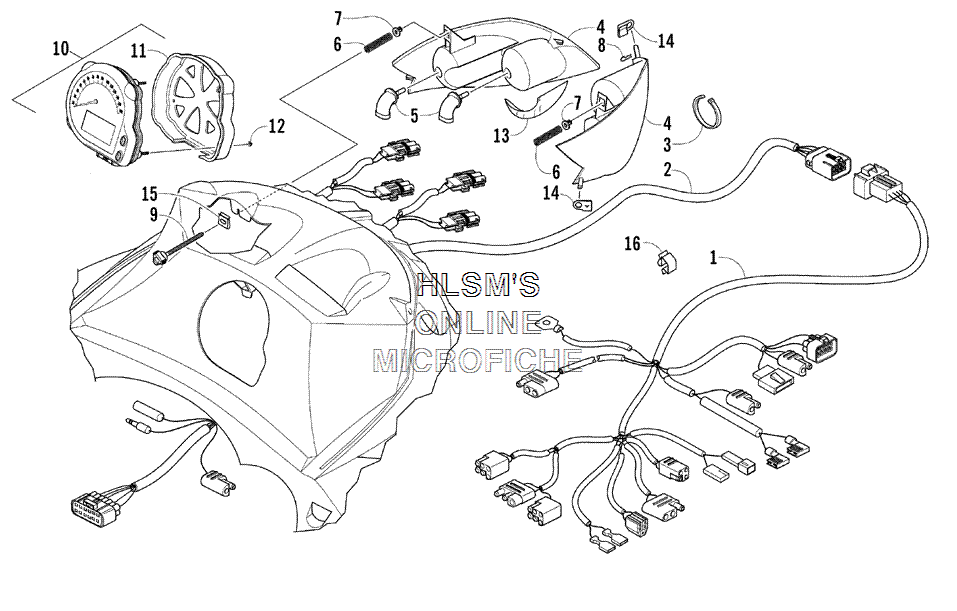

HEADLIGHT- INSTRUMENTS- AND WIRING ASSY. для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска`
-
№АртикулНазвание
-
10686-986 HARNESS, MAINHARNESS, MAIN
-
21686-030 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
-
40609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
-
50609-251 BULB, (GE 894) HEADLIGHT-HIGH BBULB, (GE 894) HEADLIGHT-HIGH B
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 GROMMET, SCREW-PLASTICGROMMET, SCREW-PLASTIC
-
81623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100620-290 TACHOMETER/SPEEDOMETER (INC. 11, 12)TACHOMETER/SPEEDOMETER (INC. 11, 12)
-
110620-281 BRACKET, RETAININGBRACKET, RETAINING
-
120620-280 NUT W/WASHERNUT W/WASHER
-
133606-370 FOIL, HEADLIGHT (RIGHT)FOIL, HEADLIGHT (RIGHT)
-
133606-371 FOIL, HEADLIGHT (LEFT)FOIL, HEADLIGHT (LEFT)
-
141623-202 CLIP, HEADLIGHT (RIGHT)CLIP, HEADLIGHT (RIGHT)
-
141623-201 CLIP, HEADLIGHT (LEFT)CLIP, HEADLIGHT (LEFT)
-
151623-189 CLIP, ADJUSTER SCREWCLIP, ADJUSTER SCREW
-
161623-200 CLIP, WIRECLIP, WIRE
