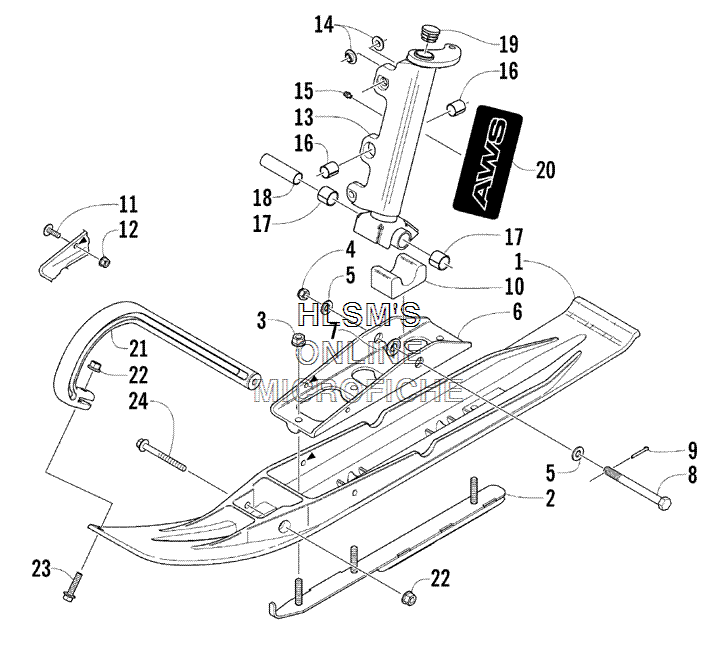

SKI AND SPINDLE ASSY. для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1703-109 SKI, PLASTIC
    SKI, PLASTIC
  • 2
    1703-478 WEARBAR (RIGHT)
    WEARBAR (RIGHT)
  • 2
    1703-479 WEARBAR (LEFT)
    WEARBAR (LEFT)
  • 3
    8047-486 NUT, LOCK 3/8-16 GR
    NUT, LOCK 3/8-16 GR
  • 4
    0123-296 NUT, FLEX-FULL 7/16-20
    NUT, FLEX-FULL 7/16-20
  • 5
    0623-728 WASHER, FLAT-HARD(.469 X 1.125 X
    WASHER, FLAT-HARD(.469 X 1.125 X
  • 6
    1703-501 SADDLE, SKI (INC. 7)
    SADDLE, SKI (INC. 7)
  • 7
    0603-621 INSERT, SKI SADDLE
    INSERT, SKI SADDLE
  • 8
    0623-552 SCREW, CAP-HH 7/16-20 X 4.50 W/
    SCREW, CAP-HH 7/16-20 X 4.50 W/
  • 9
    0123-458 PIN, COTTER 1/8X1
    PIN, COTTER 1/8X1
  • 10
    0603-036 DAMPER, SKI
    DAMPER, SKI
  • 11
    8017-581 SCREW, MACH-TXSTRH 1/4-20 X 7/8
    SCREW, MACH-TXSTRH 1/4-20 X 7/8
  • 12
    8048-366 NUT, HEX FLG-TOP LOCK 1/4-20 GR
    NUT, HEX FLG-TOP LOCK 1/4-20 GR
  • 13
    1703-352 SPINDLE, STEERING (RIGHT) (INC. 14, 17)
    SPINDLE, STEERING (RIGHT) (INC. 14, 17)
  • 13
    1703-353 SPINDLE, STEERING (LEFT) (INC. 14, 17)
    SPINDLE, STEERING (LEFT) (INC. 14, 17)
  • 14
    0603-647 INSERT, SPINDLE
    INSERT, SPINDLE
  • 15
    1623-010 FITTING, GREASE
    FITTING, GREASE
  • 16
    0603-083 BEARING, GARLOCK 10DU12
    BEARING, GARLOCK 10DU12
  • 17
    0603-158 BEARING, GARLOCK 12DU12
    BEARING, GARLOCK 12DU12
  • 18
    0603-034 AXLE, SPINDLE
    AXLE, SPINDLE
  • 19
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 20
    6611-022 DECAL, "AWS", SPINDLE
    DECAL, "AWS", SPINDLE
  • 21
    0603-624 HANDLE, PLASTIC
    HANDLE, PLASTIC
  • 22
    8048-426 NUT, LOCK
    NUT, LOCK
  • 23
    8020-135 SCREW, CAP-HFH 5/16-18 X 1.50 G
    SCREW, CAP-HFH 5/16-18 X 1.50 G
  • 24
    8020-143 SCREW, CAP-HFH 5/16-18 X 3.50 G
    SCREW, CAP-HFH 5/16-18 X 3.50 G
