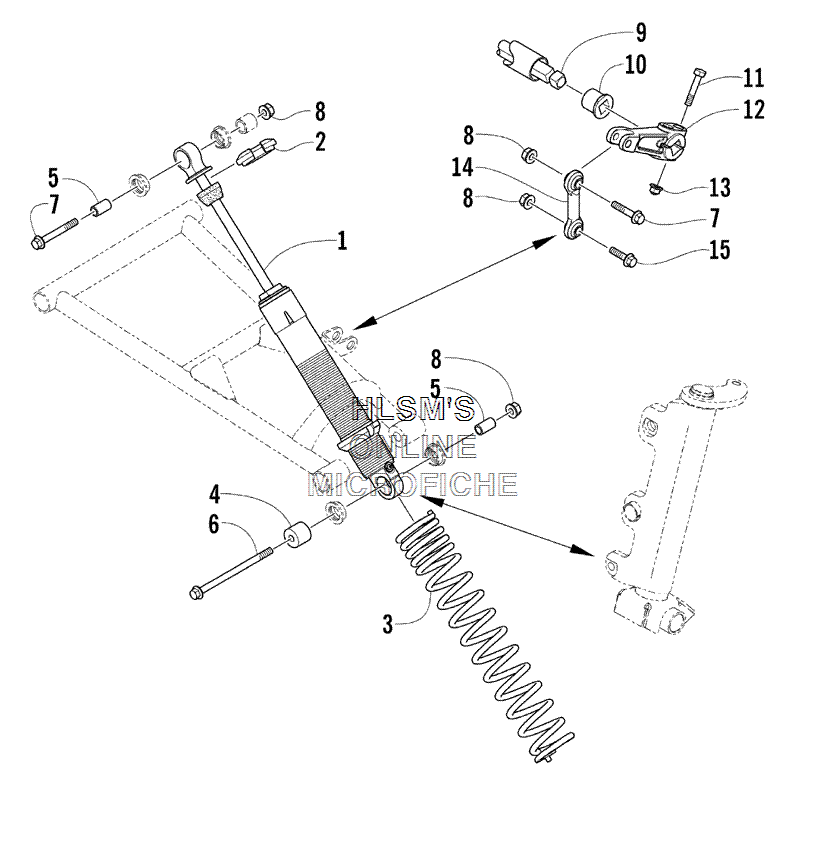

SHOCK ABSORBER AND SWAY BAR ASSY. для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска`
-
№АртикулНазвание
-
11703-705 SHOCK SUSPENSION (FRONT)SHOCK SUSPENSION (FRONT)
-
21603-890 RETAINER, SPRINGRETAINER, SPRING
-
31703-692 SPRING, COMPRESSIONSPRING, COMPRESSION
-
40603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
51603-023 SLEEVE, SHOCK (POWDER METAL)SLEEVE, SHOCK (POWDER METAL)
-
68020-232 SCREW, CAP 3/8-16 X 3.25 Z &SCREW, CAP 3/8-16 X 3.25 Z &
-
78020-226 SCREW, CAP 3/8-16 X 1.75 Z &SCREW, CAP 3/8-16 X 1.75 Z &
-
88048-486 NUT, LOCK 3/8-16 GRNUT, LOCK 3/8-16 GR
-
90703-202 SWAY BAR, 7/16-PAINTEDSWAY BAR, 7/16-PAINTED
-
100603-151 BEARINGBEARING
-
118002-137 SCREW, CAP 5/16-18 X2.00 G5SCREW, CAP 5/16-18 X2.00 G5
-
120603-917 ARM, SWAY BARARM, SWAY BAR
-
138048-426 NUT, LOCKNUT, LOCK
-
141603-414 LINK, SWAY BARLINK, SWAY BAR
-
158020-225 SCREW, CAP 3/8-16 X 1.50 Z &SCREW, CAP 3/8-16 X 1.50 Z &
