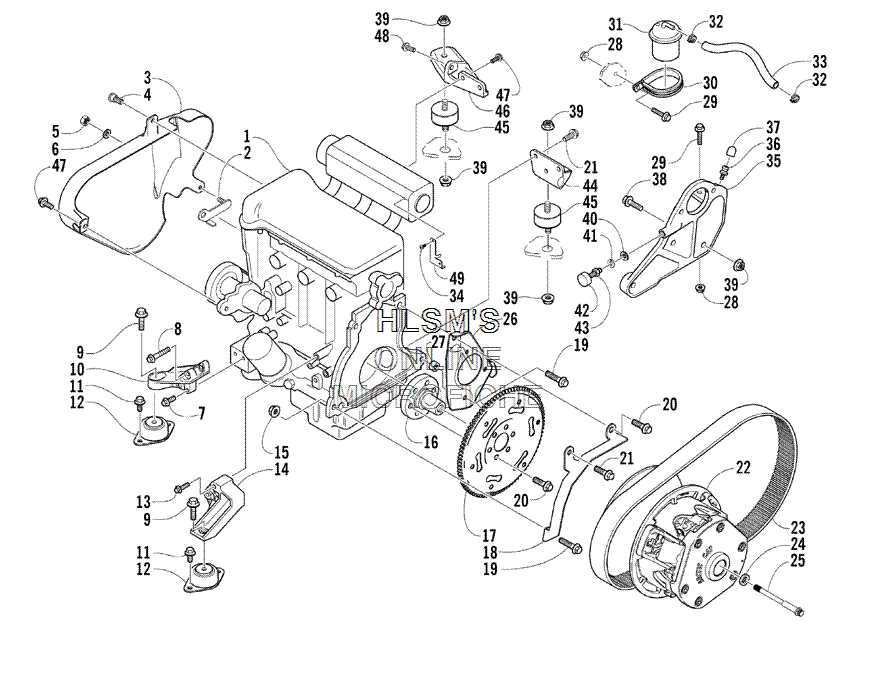

ENGINE AND RELATED PARTS для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-364 ENGINE
    ENGINE
  • 2
    1706-930 BRACKET, BELT COVER
    BRACKET, BELT COVER
  • 3
    2606-720 COVER, ENGINE BELT
    COVER, ENGINE BELT
  • 4
    8408-616 SCREW, SHOULDER
    SCREW, SHOULDER
  • 5
    0624-250 NUT, LOCK
    NUT, LOCK
  • 6
    8050-217 WASHER, FLAT- 1/4 X .625 X .065
    WASHER, FLAT- 1/4 X .625 X .065
  • 7
    8408-840 SCREW, CAP-HFH M8X1.25X40 CL8.8
    SCREW, CAP-HFH M8X1.25X40 CL8.8
  • 8
    8408-870 SCREW, CAP-HFH M8X1.25X70 CL8.8
    SCREW, CAP-HFH M8X1.25X70 CL8.8
  • 9
    8020-220 SCREW, CAP-HFH 3/8-16 X 0.750 Z
    SCREW, CAP-HFH 3/8-16 X 0.750 Z
  • 10
    0708-432 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
    BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
  • 11
    0623-765 SCREW, SELF, TAPPING 5/16-18X.62
    SCREW, SELF, TAPPING 5/16-18X.62
  • 12
    0608-347 MOUNT, ENGINE (FRONT)
    MOUNT, ENGINE (FRONT)
  • 13
    8408-850 SCREW, CAP M8X1.25X50 CL8.8
    SCREW, CAP M8X1.25X50 CL8.8
  • 14
    0708-394 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
    BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
  • 15
    8428-002 NUT
    NUT
  • 16
    1670-245 ADAPTER, PTO
    ADAPTER, PTO
  • 17
    0745-192 GEAR, RING
    GEAR, RING
  • 18
    0745-164 GUARD, RING GEAR
    GUARD, RING GEAR
  • 19
    8409-040 SCREW, CAP-HFH M10X1.25X40 CL10
    SCREW, CAP-HFH M10X1.25X40 CL10
  • 20
    8409-030 SCREW, CAP-HFH M10X1.25X30 CL10
    SCREW, CAP-HFH M10X1.25X30 CL10
  • 21
    8409-020 SCREW, CAP-HFH M10X1.25X20 CL10
    SCREW, CAP-HFH M10X1.25X20 CL10
  • 22
    0725-384 CLUTCH, DRIVE
    CLUTCH, DRIVE
  • 23
    0627-028 BELT, DRIVE
    BELT, DRIVE
  • 24
    0623-210 WASHER, LOCK-1/2
    WASHER, LOCK-1/2
  • 25
    0623-804 BOLT, DRIVE CLUTCH
    BOLT, DRIVE CLUTCH
  • 26
    0745-162 BRACKET, MOUNTING, STARTER MOTOR
    BRACKET, MOUNTING, STARTER MOTOR
  • 27
    1623-063 BUSHING, 12MM X 13MM X 1.26
    BUSHING, 12MM X 13MM X 1.26
  • 28
    8048-366 NUT, LOCK 1/4-20 GR
    NUT, LOCK 1/4-20 GR
  • 29
    8020-040 SCREW, CAP 1/4-20 X 0.750 Z
    SCREW, CAP 1/4-20 X 0.750 Z
  • 30
    1623-134 CLAMP, FUEL FILTER
    CLAMP, FUEL FILTER
  • 31
    1670-469 FILTER, FUEL
    FILTER, FUEL
  • 32
    0610-419 CLAMP, HOSE
    CLAMP, HOSE
  • 33
    0610-075 HOSE, GASLINE (10 FT)
    HOSE, GASLINE (10 FT)
  • 34
    8477-610 SCREW, CAP M6X1.0X10 Z & B
    SCREW, CAP M6X1.0X10 Z & B
  • 35
    0708-409 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 36, 37)
    BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 36, 37)
  • 36
    0623-899 FITTING, GREASE
    FITTING, GREASE
  • 37
    0623-904 CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 38
    8020-224 SCREW, CAP 3/8-16 X 1.250 Z
    SCREW, CAP 3/8-16 X 1.250 Z
  • 39
    8048-486 NUT, LOCK 3/8-16 GR
    NUT, LOCK 3/8-16 GR
  • 40
    8050-277 WASHER, FLAT- 3/8 X 1.000 X .06
    WASHER, FLAT- 3/8 X 1.000 X .06
  • 41
    8051-277 WASHER, LOCK-.382X.691X.115
    WASHER, LOCK-.382X.691X.115
  • 42
    0608-358 BUMPER, TORQUE, ENGINE
    BUMPER, TORQUE, ENGINE
  • 43
    8042-516 NUT, HEX 3/8-24 G5 Z & Y
    NUT, HEX 3/8-24 G5 Z & Y
  • 44
    0708-128 BRACKET, ENGINE MOUNTING (LEFT) (REAR)
    BRACKET, ENGINE MOUNTING (LEFT) (REAR)
  • 45
    0608-118 MOUNT, ENGINE (REAR)
    MOUNT, ENGINE (REAR)
  • 46
    0708-126 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
    BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
  • 47
    8408-820 SCREW, CAP M8X1.25X20 CL8.8
    SCREW, CAP M8X1.25X20 CL8.8
  • 48
    8408-825 SCREW, CAP M8X1.25X25 CL8.8
    SCREW, CAP M8X1.25X25 CL8.8
  • 49
    2706-751 BRACKET, FILLER NECK
    BRACKET, FILLER NECK
