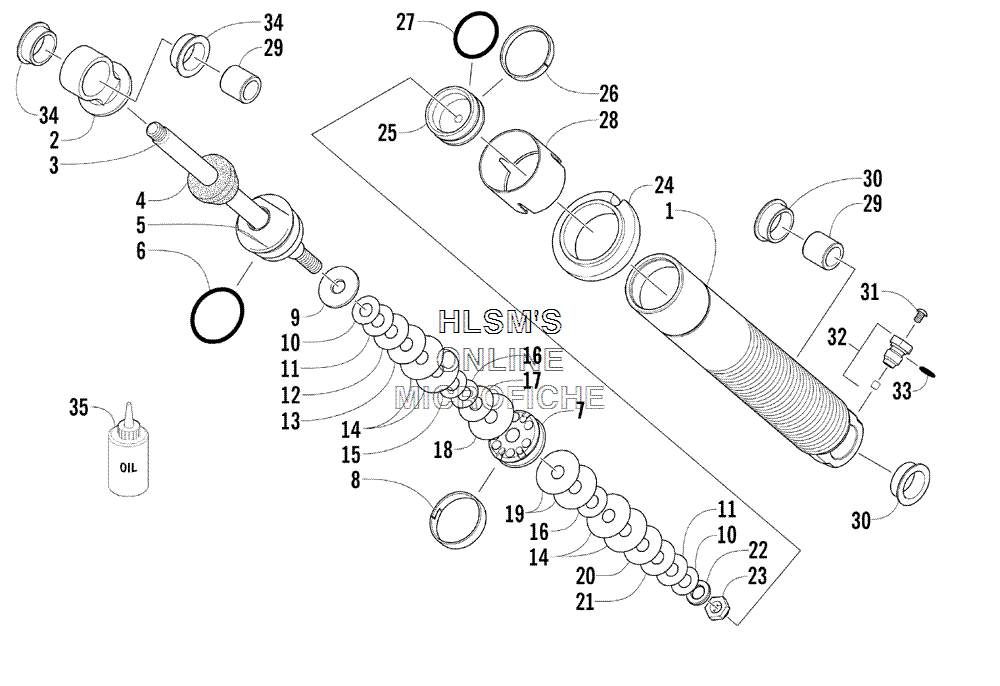

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2603-400 BODY, SHOCK
    BODY, SHOCK
  • 2
    1603-501 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    2603-401 ROD, SHOCK
    ROD, SHOCK
  • 4
    0603-991 BUMPER, SHOCK
    BUMPER, SHOCK
  • 5
    1703-452 CAP, SHOCK (INC. 6)
    CAP, SHOCK (INC. 6)
  • 6
    1604-271 O-RING, OUTER
    O-RING, OUTER
  • 7
    0603-953 PISTON, 0.093 IN., ORIFICE
    PISTON, 0.093 IN., ORIFICE
  • 8
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 9
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 10
    2603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 11
    2603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 12
    2603-074 VALVE, 1.000 X 0.008 IN.
    VALVE, 1.000 X 0.008 IN.
  • 13
    2603-094 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 14
    2603-124 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 15
    2603-044 VALVE, 0.700 X 0.008 IN.
    VALVE, 0.700 X 0.008 IN.
  • 16
    2603-062 VALVE, 0.900 X 0.006 IN.
    VALVE, 0.900 X 0.006 IN.
  • 17
    2603-072 VALVE, 1.000 X 0.006 IN.
    VALVE, 1.000 X 0.006 IN.
  • 18
    2603-132 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 19
    2603-122 VALVE, 1.250 X 0.006 IN.
    VALVE, 1.250 X 0.006 IN.
  • 20
    2603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 21
    2603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 22
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 23
    0623-696 NUT, LOCK- 3/8-24
    NUT, LOCK- 3/8-24
  • 24
    1603-911 NUT, ADJUSTER
    NUT, ADJUSTER
  • 25
    0704-791 PISTON, FLOATING (INC. 26, 27)
    PISTON, FLOATING (INC. 26, 27)
  • 26
    2604-153 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 27
    2604-152 O-RING, FLOATING PISTON
    O-RING, FLOATING PISTON
  • 28
    2603-012 SLEEVE, PROTECTOR
    SLEEVE, PROTECTOR
  • 29
    1603-209 SLEEVE, EYELET
    SLEEVE, EYELET
  • 30
    1603-914 BUSHING, SHOCK
    BUSHING, SHOCK
  • 31
    0624-433 SCREW, VALVE 8-32X1/4 SS
    SCREW, VALVE 8-32X1/4 SS
  • 32
    2604-649 VALVE, PRESSURE (INC. 33)
    VALVE, PRESSURE (INC. 33)
  • 33
    2604-162 O-RING, VALVE
    O-RING, VALVE
  • 34
    0603-955 BUSHING, SHOCK
    BUSHING, SHOCK
  • 35
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 35
    1703-705[ SHOCK ABSORBER ASSY.
    SHOCK ABSORBER ASSY.
