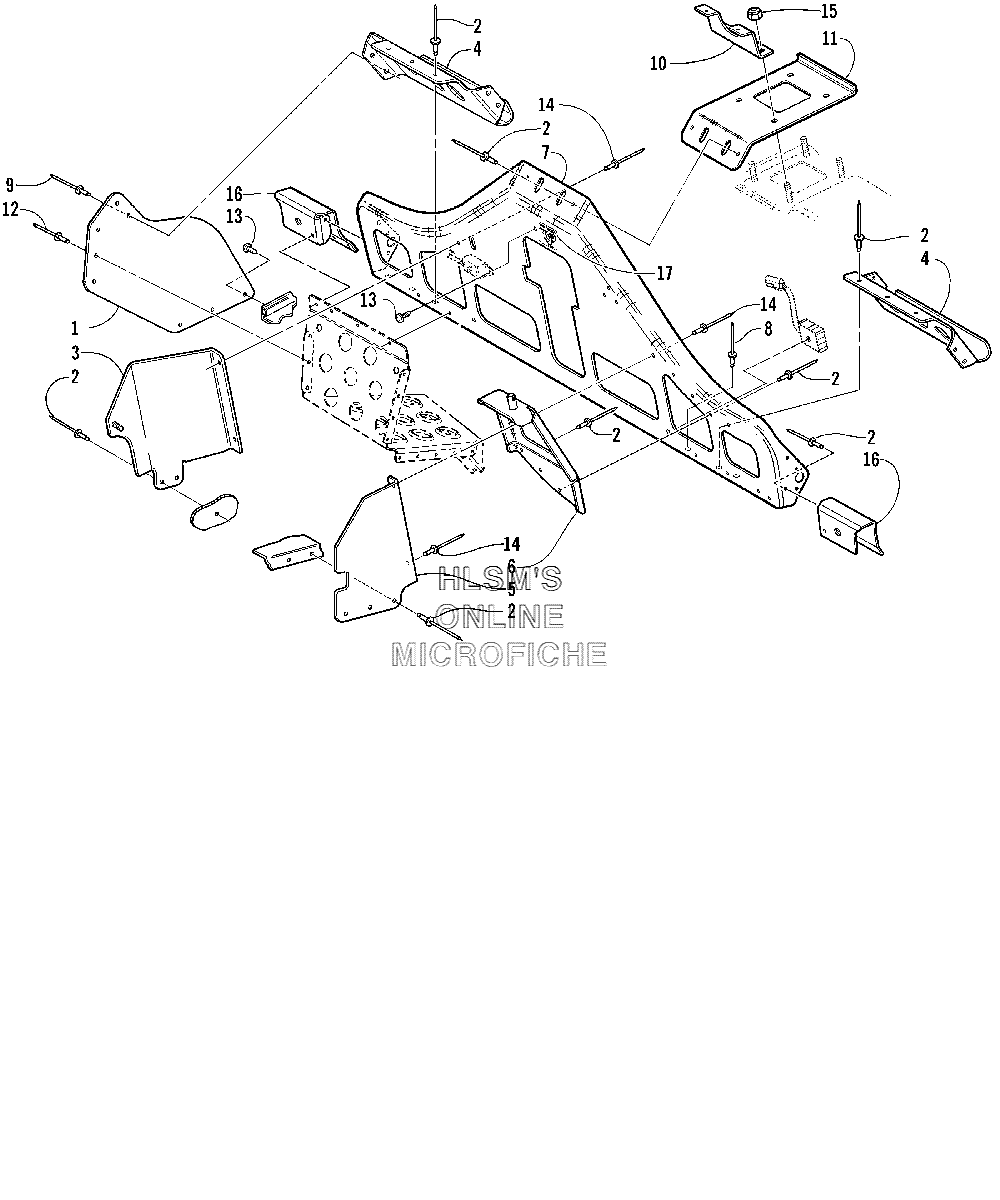

STEERING SUPPORT ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-979 SUPPORT, ANKLE
    SUPPORT, ANKLE
  • 2
    0623-166 RIVET
    RIVET
  • 3
    1606-455 BRACKET, BRAKE DUCT MOUNTING
    BRACKET, BRAKE DUCT MOUNTING
  • 4
    2606-296 BRACKET, TOE, HOLD (RIGHT)
    BRACKET, TOE, HOLD (RIGHT)
  • 4
    2606-297 BRACKET, TOE, HOLD (LEFT)
    BRACKET, TOE, HOLD (LEFT)
  • 5
    1606-723 BRACKET, CLOSE, OFF, AIR SILENCER
    BRACKET, CLOSE, OFF, AIR SILENCER
  • 6
    2706-121 BRACKET, MOUNTING, GUARD
    BRACKET, MOUNTING, GUARD
  • 7
    0605-550 SUPPORT, STEERING
    SUPPORT, STEERING
  • 8
    0623-282 RIVET
    RIVET
  • 9
    8061-706 RIVET
    RIVET
  • 10
    1606-490 BRACKET, MOUNTING, CONSOLE
    BRACKET, MOUNTING, CONSOLE
  • 11
    1606-428 BRACKET, GAS TANK SUPPORT (UPPER)
    BRACKET, GAS TANK SUPPORT (UPPER)
  • 12
    8061-508 RIVET
    RIVET
  • 13
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    8060-704 RIVET
    RIVET
  • 15
    8040-366 NUT, LOCK
    NUT, LOCK
  • 16
    0605-544 BRACE, SUPPORT, STEERING (RIGHT)
    BRACE, SUPPORT, STEERING (RIGHT)
  • 16
    0605-545 BRACE, SUPPORT, STEERING (LEFT)
    BRACE, SUPPORT, STEERING (LEFT)
  • 17
    4611-029 DECAL, FUEL SHUT, OFF VALVE
    DECAL, FUEL SHUT, OFF VALVE
