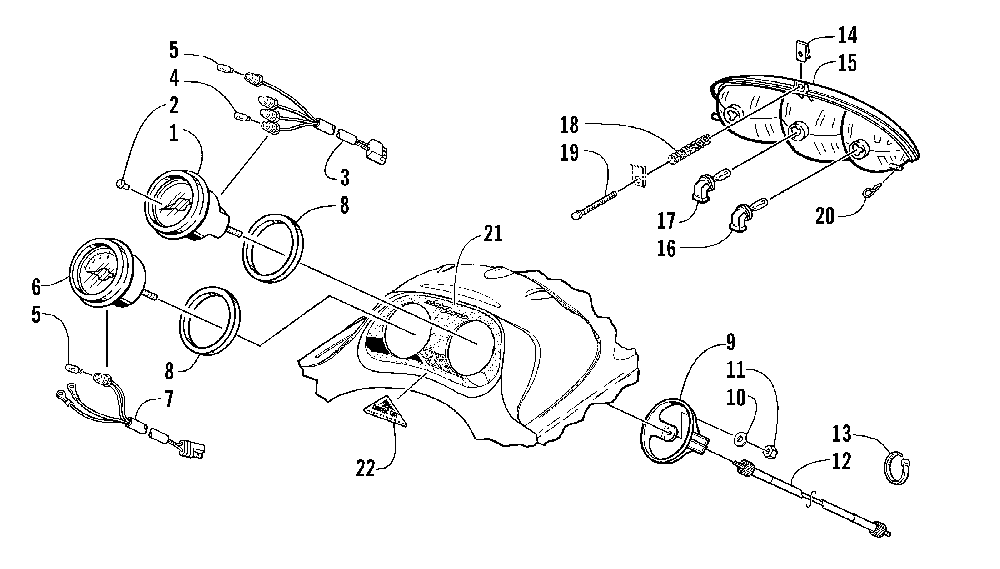

HEADLIGHT AND INSTRUMENTS для Arctic Cat Z 440 SNO PRO - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0620-238 SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)
    SPEEDOMETER (INC. 2, 4 AND ONE NO. 5)
  • 2
    0620-073 KNOB, TRIPMETER
    KNOB, TRIPMETER
  • 3
    0620-151 HARNESS, SPEEDOMETER BULB (INC. 4 AND ONE NO. 5)
    HARNESS, SPEEDOMETER BULB (INC. 4 AND ONE NO. 5)
  • 4
    0620-149 BULB, WARNING/INDICATOR
    BULB, WARNING/INDICATOR
  • 5
    0230-020 BULB, INSTRUMENT
    BULB, INSTRUMENT
  • 6
    0620-237 TACHOMETER (INC. 7 AND ONE NO. 5)
    TACHOMETER (INC. 7 AND ONE NO. 5)
  • 7
    0620-215 HARNESS, TACHOMETER BULB (INC. ONE NO. 5)
    HARNESS, TACHOMETER BULB (INC. ONE NO. 5)
  • 8
    0620-135 RING, RUBBER CUSHION
    RING, RUBBER CUSHION
  • 9
    0620-134 RING, RETAINING BRACKET
    RING, RETAINING BRACKET
  • 10
    8050-212 WASHER
    WASHER
  • 11
    0623-038 NUT W/LOCK WASHER
    NUT W/LOCK WASHER
  • 12
    0620-269 CABLE, SPEEDOMETER
    CABLE, SPEEDOMETER
  • 13
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 14
    0623-757 NUT, U
    NUT, U
  • 15
    0609-250 LENS/REFLECTOR, HEADLIGHT
    LENS/REFLECTOR, HEADLIGHT
  • 16
    0609-251 BULB, HEADLIGHT, HIGH BEAM
    BULB, HEADLIGHT, HIGH BEAM
  • 17
    0609-252 BULB, HEADLIGHT, LOW BEAM
    BULB, HEADLIGHT, LOW BEAM
  • 18
    0623-466 SPRING, ADJUSTER, HEADLIGHT
    SPRING, ADJUSTER, HEADLIGHT
  • 19
    0623-467 SCREW, THUMB
    SCREW, THUMB
  • 20
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 21
    5611-126 DECAL, INSTRUMENT, HOOD
    DECAL, INSTRUMENT, HOOD
  • 22
    3611-611 DECAL, "MADE IN U.S.A.", DOMED
    DECAL, "MADE IN U.S.A.", DOMED
