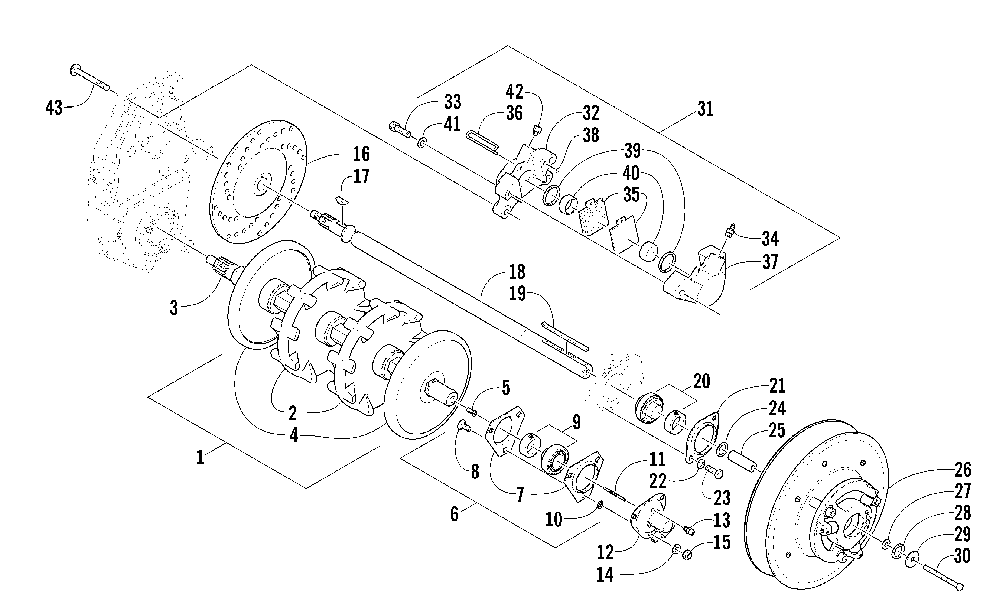

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Z 440 SNO PRO - 2003 года выпуска`
-
№АртикулНазвание
-
10728-050 TRACK DRIVE ASSEMBLY (INC. 2, 5)TRACK DRIVE ASSEMBLY (INC. 2, 5)
-
20602-960 SPROCKET, DRIVESPROCKET, DRIVE
-
30602-958 DRIVESHAFTDRIVESHAFT
-
40602-993 IDLER, DRIVE, OUTERIDLER, DRIVE, OUTER
-
50120-247 BUSHING, DRIVEBUSHING, DRIVE
-
60702-476 PLATE, FLANGE, BEARING ASSEMBLY (INC. 7, 10)PLATE, FLANGE, BEARING ASSEMBLY (INC. 7, 10)
-
70602-198 PLATE, FLANGEPLATE, FLANGE
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
91602-375 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
100623-810 RING, SOLDERRING, SOLDER
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120720-005 ADAPTER, DRIVE (INC. 13)ADAPTER, DRIVE (INC. 13)
-
130104-062 FITTING, GREASEFITTING, GREASE
-
148050-242 WASHERWASHER
-
158040-426 NUT, LOCKNUT, LOCK
-
161602-205 DISC, BRAKEDISC, BRAKE
-
170602-598 KEYKEY
-
180702-398 SHAFT, DRIVENSHAFT, DRIVEN
-
190101-076 KEYKEY
-
201602-290 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
210602-892 PLATE, FLANGE, BEARINGPLATE, FLANGE, BEARING
-
228051-242 WASHERWASHER
-
238002-130 SCREW, CAPSCREW, CAP
-
240623-118 WASHERWASHER
-
240623-119 WASHERWASHER
-
250648-042 SHAFT, STUBSHAFT, STUB
-
260726-137 CLUTCH, DRIVENCLUTCH, DRIVEN
-
270123-053 WASHERWASHER
-
280123-694 WASHERWASHER
-
290123-019 WASHERWASHER
-
308002-139 SCREW, CAPSCREW, CAP
-
310602-829 CALIPER, BRAKE ASSEMBLY (INC. 32, 42)CALIPER, BRAKE ASSEMBLY (INC. 32, 42)
-
338005-679 SCREW, CAPSCREW, CAP
-
340602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
350702-229 PAD, BRAKE, SET (INC. 36)PAD, BRAKE, SET (INC. 36)
-
360602-706 PIN, RETAININGPIN, RETAINING
-
380602-729 O-RING, HOUSINGO-RING, HOUSING
-
390602-583 O-RINGO-RING
-
400602-708 PISTONPISTON
-
418050-272 WASHERWASHER
-
420602-590 FITTING, ADAPTERFITTING, ADAPTER
-
438020-315 SCREW, CAPSCREW, CAP
