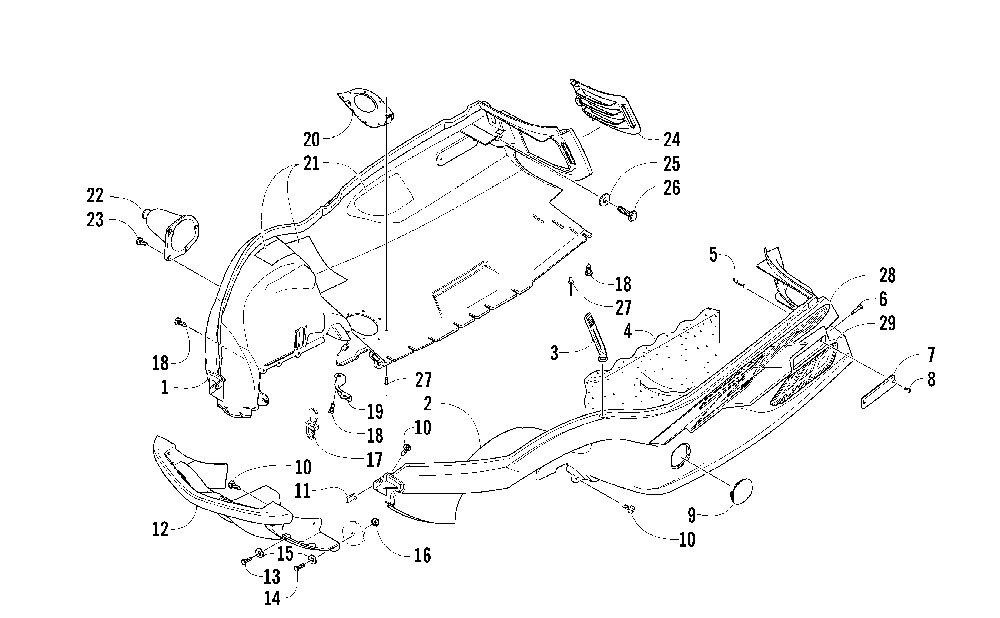

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска`
-
№АртикулНазвание
-
11706-278 BELLY PAN (RIGHT/GREEN)BELLY PAN (RIGHT/GREEN)
-
21706-279 BELLY PAN (LEFT/GREEN)BELLY PAN (LEFT/GREEN)
-
31606-930 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
40617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
50605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
60623-915 PIN, CLEVISPIN, CLEVIS
-
70606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
80623-269 CLIP, RETAININGCLIP, RETAINING
-
92606-280 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-427 NUT, UNUT, U
-
121606-949 BUMPER (FRONT)BUMPER (FRONT)
-
138002-040 SCREW, CAPSCREW, CAP
-
148002-039 SCREW, CAPSCREW, CAP
-
158050-222 WASHERWASHER
-
168041-366 NUT, LOCKNUT, LOCK
-
170623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
180623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190712-898 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
200712-897 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
210619-206 TAPE, FOILTAPE, FOIL
-
220605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
220605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
230623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
242606-372 LOUVER, AIR, INTAKE (RIGHT/GREEN)LOUVER, AIR, INTAKE (RIGHT/GREEN)
-
242606-373 LOUVER, AIR, INTAKE (LEFT/GREEN)LOUVER, AIR, INTAKE (LEFT/GREEN)
-
250623-184 WASHERWASHER
-
260623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
278061-508 RIVETRIVET
-
285611-136 DECAL, BELLY PAN (UPPER/RIGHT)DECAL, BELLY PAN (UPPER/RIGHT)
-
285611-137 DECAL, BELLY PAN (UPPER/LEFT)DECAL, BELLY PAN (UPPER/LEFT)
-
295611-138 DECAL, BELLY PAN (LOWER)DECAL, BELLY PAN (LOWER)
