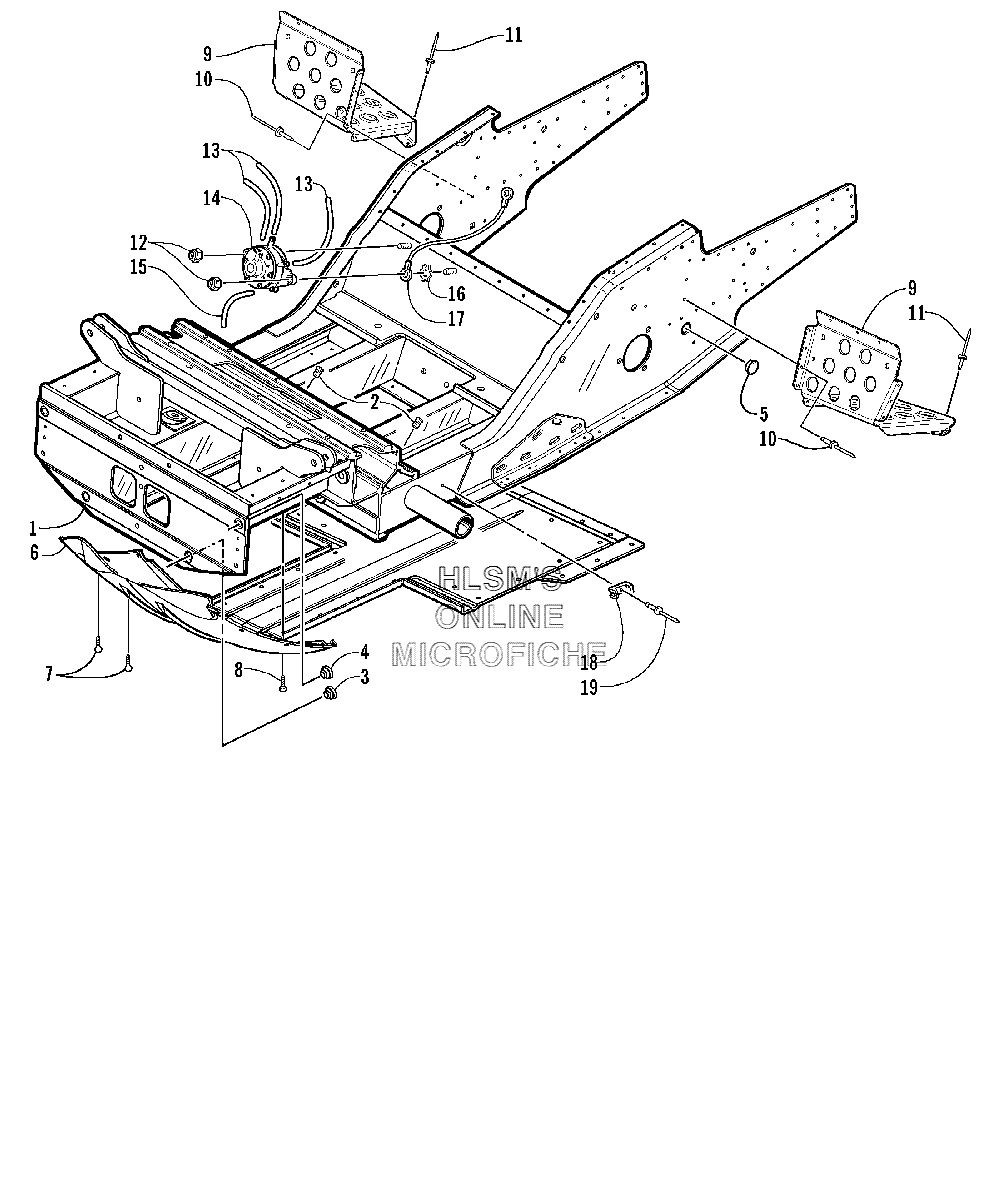

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-744 CHASSIS ASSEMBLY (INC. 2, 4)
    CHASSIS ASSEMBLY (INC. 2, 4)
  • 2
    0623-699 INSERT
    INSERT
  • 3
    0607-420 INSERT A, ARM MOUNT (LOWER)
    INSERT A, ARM MOUNT (LOWER)
  • 4
    0607-421 INSERT A, ARM MOUNT (UPPER)
    INSERT A, ARM MOUNT (UPPER)
  • 5
    1606-079 PLUG, HOLE
    PLUG, HOLE
  • 6
    1606-719 BELLY PAN (CENTER)
    BELLY PAN (CENTER)
  • 7
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 8
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    2606-298 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 9
    2606-299 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 10
    0623-166 RIVET
    RIVET
  • 11
    0623-282 RIVET
    RIVET
  • 12
    8040-366 NUT, LOCK
    NUT, LOCK
  • 13
    0610-017 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 13
    0610-008 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 14
    0670-311 PUMP, FUEL
    PUMP, FUEL
  • 15
    0610-007 HOSE, IMPULSE (25 FT)
    HOSE, IMPULSE (25 FT)
  • 16
    8053-212 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 17
    0686-099 HARNESS, GROUND, ENGINE
    HARNESS, GROUND, ENGINE
  • 18
    0623-228 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 19
    8060-428 RIVET
    RIVET
