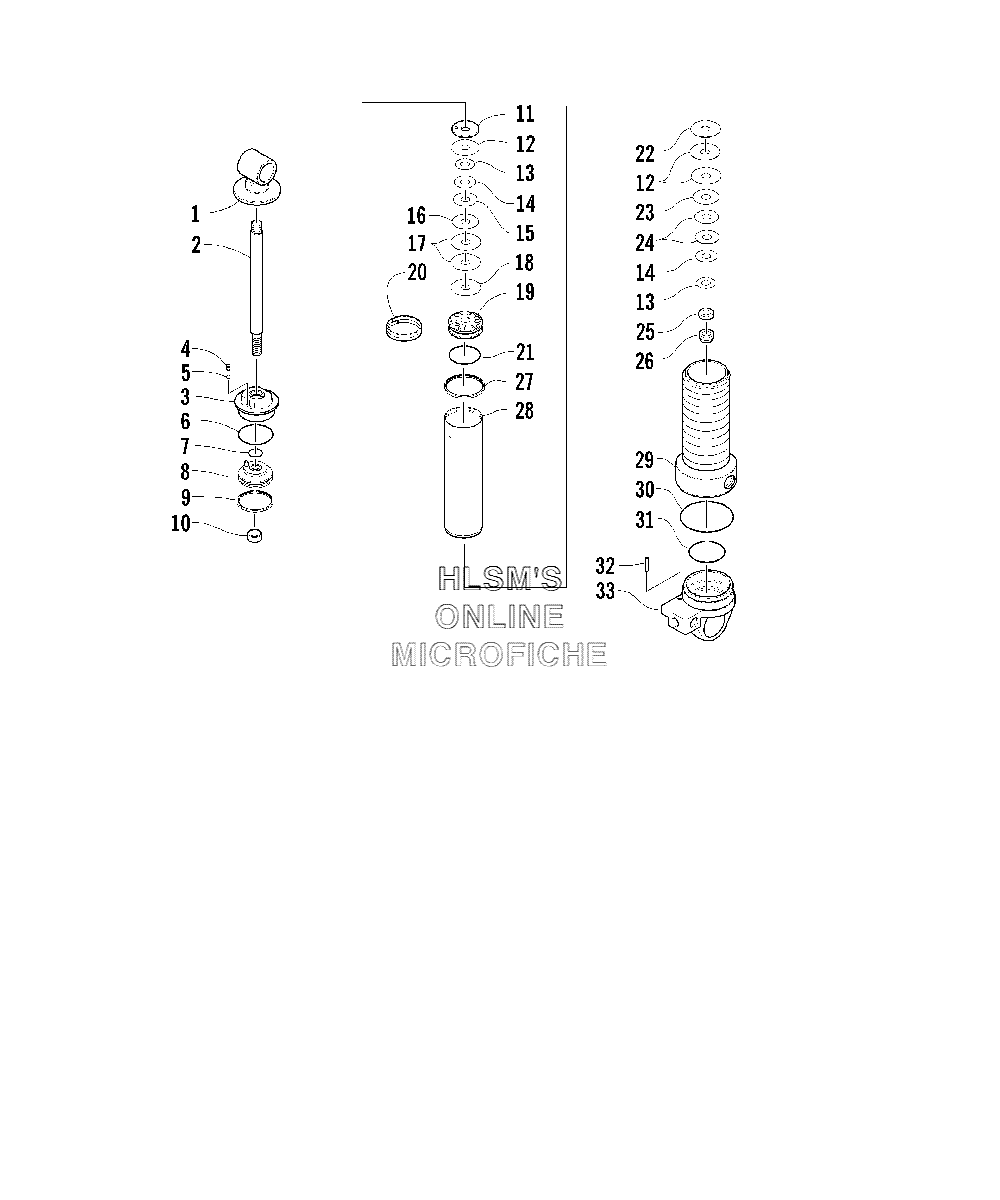

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Z 440 SNO PRO - 2003 года выпуска

  • №
    Артикул
    Название
  • -
    0704-911 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    0604-625 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    2604-230 ROD, SHOCK
    ROD, SHOCK
  • 3
    2604-568 CAP, SHOCK (INC. 4, 6)
    CAP, SHOCK (INC. 4, 6)
  • 4
    1603-940 SCREW
    SCREW
  • 5
    1604-315 BALL, ADJUSTER
    BALL, ADJUSTER
  • 6
    1604-420 O-RING
    O-RING
  • 7
    2604-203 O-RING
    O-RING
  • 8
    2604-444 PISTON, SEPARATOR
    PISTON, SEPARATOR
  • 9
    0603-447 O-RING
    O-RING
  • 10
    2604-203 BEARING
    BEARING
  • 11
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 12
    0603-347 VALVE, SHOCK 1.250 X 0.010 IN.
    VALVE, SHOCK 1.250 X 0.010 IN.
  • 13
    0603-335 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 14
    0603-338 VALVE, SHOCK 0.900 X 0.010 IN.
    VALVE, SHOCK 0.900 X 0.010 IN.
  • 15
    0603-881 VALVE, SHOCK 1.000 X 0.012 IN.
    VALVE, SHOCK 1.000 X 0.012 IN.
  • 16
    0603-882 VALVE, SHOCK 1.100 X 0.012 IN.
    VALVE, SHOCK 1.100 X 0.012 IN.
  • 17
    0603-350 VALVE, SHOCK 1.300 X 0.010 IN.
    VALVE, SHOCK 1.300 X 0.010 IN.
  • 18
    0603-890 VALVE, SHOCK 1.300 X 0.015 IN.
    VALVE, SHOCK 1.300 X 0.015 IN.
  • 19
    2604-465 PISTON, 0.046 IN., ORIFICE
    PISTON, 0.046 IN., ORIFICE
  • 20
    0603-292 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 21
    2604-214 O-RING
    O-RING
  • 22
    0603-883 VALVE, SHOCK 1.250 X 0.012 IN.
    VALVE, SHOCK 1.250 X 0.012 IN.
  • 23
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 24
    0603-341 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 25
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 26
    0603-301 NUT, CAP
    NUT, CAP
  • 27
    0604-810 O-RING
    O-RING
  • 28
    2604-220 BODY, SHOCK
    BODY, SHOCK
  • 29
    2604-443 SLEEVE, ADJUSTER
    SLEEVE, ADJUSTER
  • 30
    0604-809 O-RING
    O-RING
  • 31
    0603-438 O-RING
    O-RING
  • 32
    1604-097 PIN, ROLL, SPRING
    PIN, ROLL, SPRING
  • 33
    2604-222 END CAP, SHOCK
    END CAP, SHOCK
