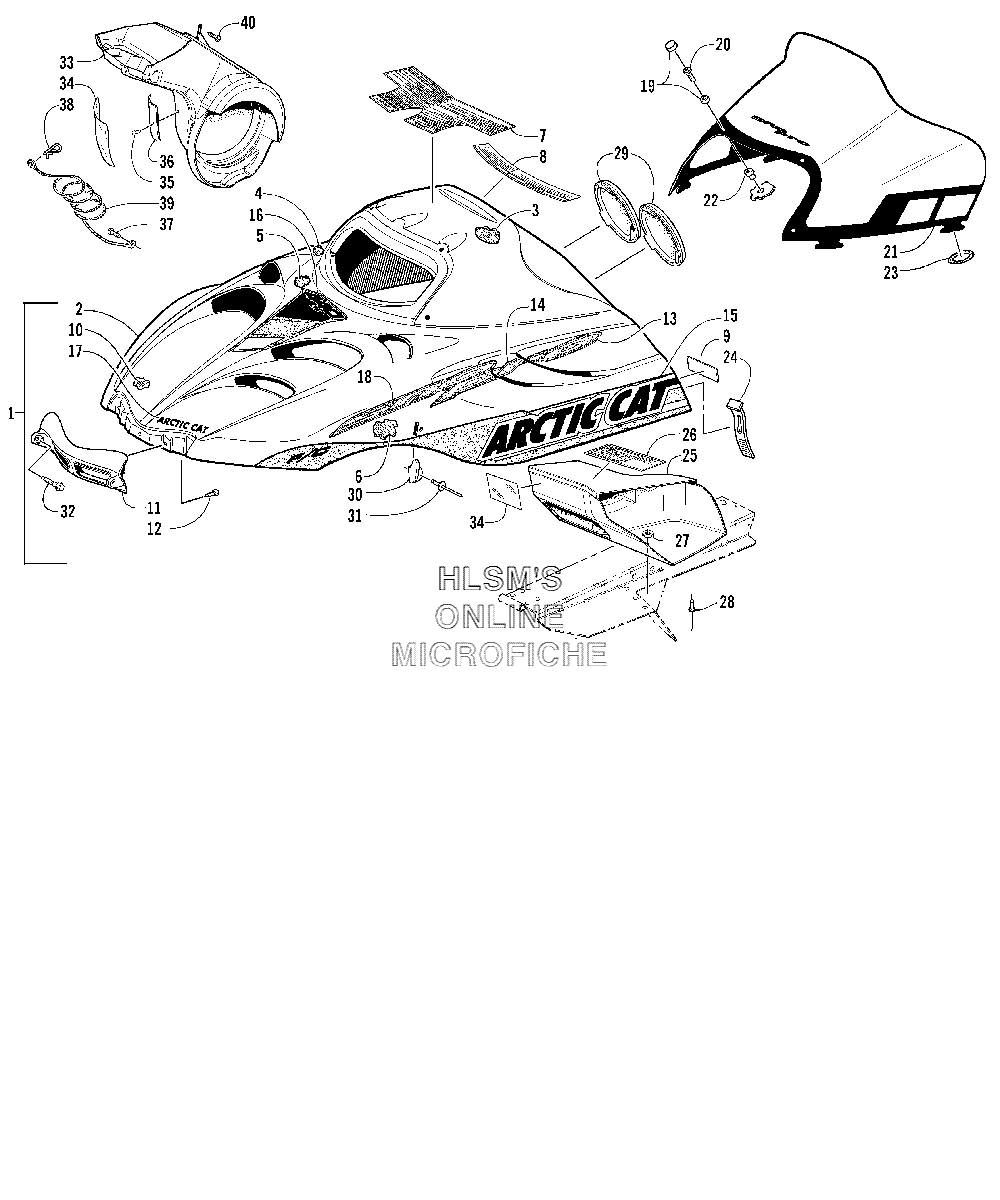

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска`
-
№АртикулНазвание
-
11718-347 HOOD W/DECALS (INC. 2, 18)HOOD W/DECALS (INC. 2, 18)
-
21718-012 HOOD W/O DECALS (INC. 3, 12)HOOD W/O DECALS (INC. 3, 12)
-
30717-148 FOAM, HOOD (RIGHT/UPPER)FOAM, HOOD (RIGHT/UPPER)
-
30717-149 FOAM, HOOD (LEFT/UPPER)FOAM, HOOD (LEFT/UPPER)
-
40717-146 FOAM, HOOD (RIGHT/REAR)FOAM, HOOD (RIGHT/REAR)
-
50717-138 FOAM, HOOD (CENTER)FOAM, HOOD (CENTER)
-
60717-156 FOAM, HOOD CENTER (RIGHT)FOAM, HOOD CENTER (RIGHT)
-
73611-485 DECAL, WARNING, HOODDECAL, WARNING, HOOD
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
135611-134 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
135611-135 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
145611-132 DECAL, HOOD, VENT (RIGHT)DECAL, HOOD, VENT (RIGHT)
-
145611-133 DECAL, HOOD, VENT (LEFT)DECAL, HOOD, VENT (LEFT)
-
155611-128 DECAL, HOOD (RIGHT/LOWER)DECAL, HOOD (RIGHT/LOWER)
-
155611-129 DECAL, HOOD (LEFT/LOWER)DECAL, HOOD (LEFT/LOWER)
-
165611-125 DECAL, HOOD (CENTER)DECAL, HOOD (CENTER)
-
173611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
185611-130 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
185611-131 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
212606-901 WINDSHIELDWINDSHIELD
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230616-032 O-RINGO-RING
-
241606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
251606-870 DUCT, AIR, OUTERDUCT, AIR, OUTER
-
265611-123 DECAL, JET CHARTDECAL, JET CHART
-
270123-802 WASHERWASHER
-
288060-508 RIVETRIVET
-
292606-069 PLUG, HOLE, GAUGEPLUG, HOLE, GAUGE
-
301606-441 HOLD, DOWN, HOOD STRAP (LEFT)HOLD, DOWN, HOOD STRAP (LEFT)
-
302606-096 HOLD, DOWN, HOOD STRAP (RIGHT)HOLD, DOWN, HOOD STRAP (RIGHT)
-
318061-708 RIVETRIVET
-
320623-690 SCREW, MACHINESCREW, MACHINE
-
332706-051 DUCT, AIR, INNER (INC. 34, 36)DUCT, AIR, INNER (INC. 34, 36)
-
340619-206 TAPE, FOILTAPE, FOIL
-
350623-165 CLIP, RETAININGCLIP, RETAINING
-
362606-441 PAD, AIR, INNER DUCTPAD, AIR, INNER DUCT
-
370623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
380623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
392606-247 CABLE, HOODCABLE, HOOD
-
400623-257 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR
- CONSOLE- SWITCHES- AND WIRING ASSEMBLIES
- CONTROL ASSEMBLY
- COOLING FAN
- COOLING FAN HOUSING
- CRANKCASE AND CYLINDER
- CYLINDER COWLING
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK AND COVER
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND INSTRUMENTS
- • HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- INTAKE ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
- RECOIL STARTER
- RELATED ITEMS
- SEAT AND TAILLIGHT ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
