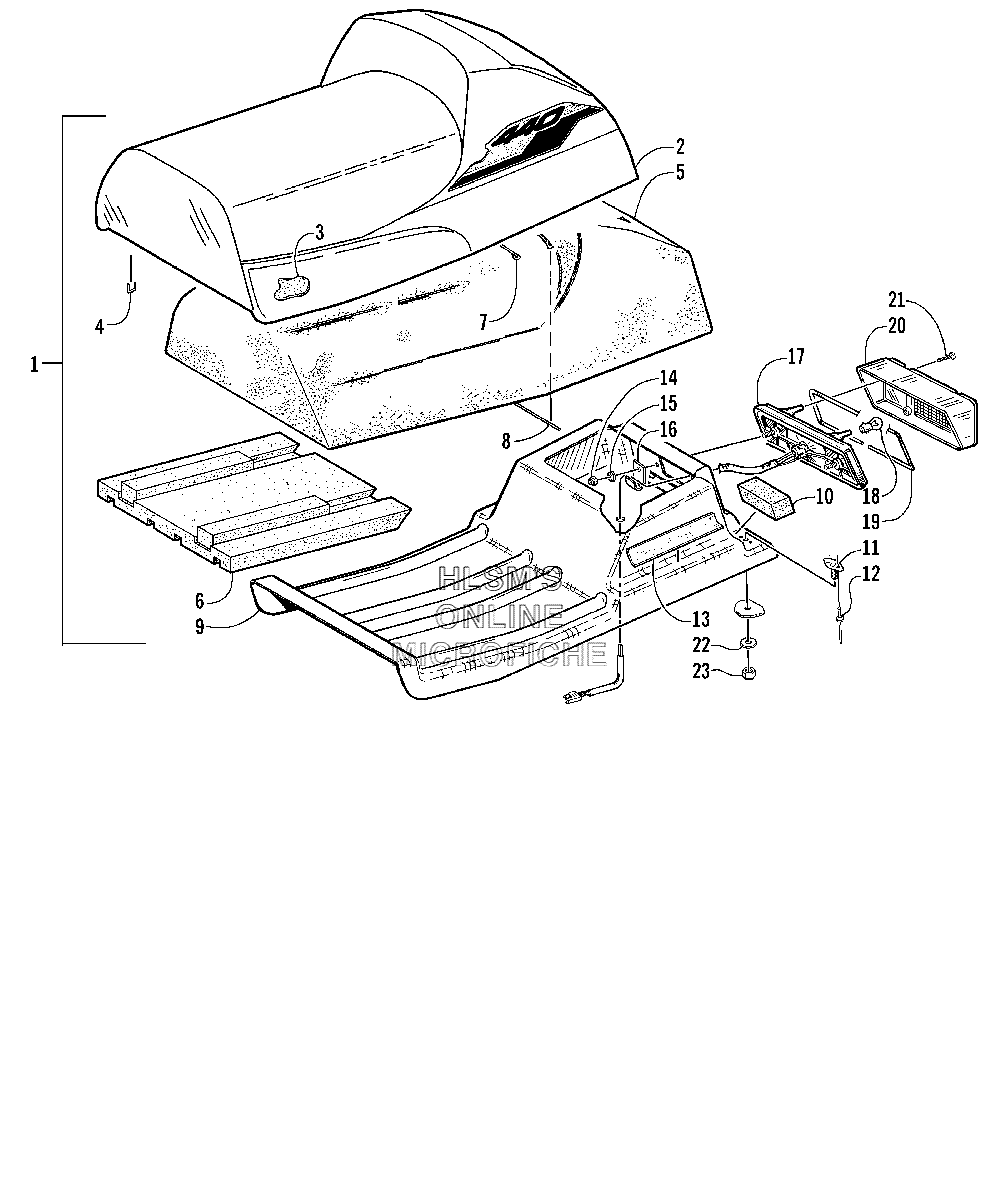

SEAT AND TAILLIGHT ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска
-
№АртикулНазвание
-
-1718-441 COMPLETE SEAT ASSEMBLYCOMPLETE SEAT ASSEMBLY
-
11718-441 COMPLETE SEAT ASSEMBLY (INC. 2, 13)COMPLETE SEAT ASSEMBLY (INC. 2, 13)
-
22706-150 COVER, SEAT (INC. 3)COVER, SEAT (INC. 3)
-
30617-390 PAD, TUNNELPAD, TUNNEL
-
40624-094 STAPLESTAPLE
-
50716-863 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
60617-286 INSERT, FOAMINSERT, FOAM
-
71606-150 WIRE, SEATWIRE, SEAT
-
82606-943 WIRE, SEATWIRE, SEAT
-
91606-701 BASE, SEATBASE, SEAT
-
100617-291 BLOCK, FOAM, SEATBLOCK, FOAM, SEAT
-
112706-040 HOLD, DOWN, SEAT (REAR)HOLD, DOWN, SEAT (REAR)
-
128061-508 RIVETRIVET
-
130706-707 TAPE, FOAM (5 FT)TAPE, FOAM (5 FT)
-
140623-038 NUT, LOCKNUT, LOCK
-
158050-217 WASHERWASHER
-
163002-964 CLAMP, WIRECLAMP, WIRE
-
170609-419 TAILLIGHT W/SOCKET ASSEMBLY (INC. 18, 21)TAILLIGHT W/SOCKET ASSEMBLY (INC. 18, 21)
-
180109-460 BULBBULB
-
190609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
200609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
210609-093 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
228050-222 WASHERWASHER
-
238040-366 NUT, LOCKNUT, LOCK
