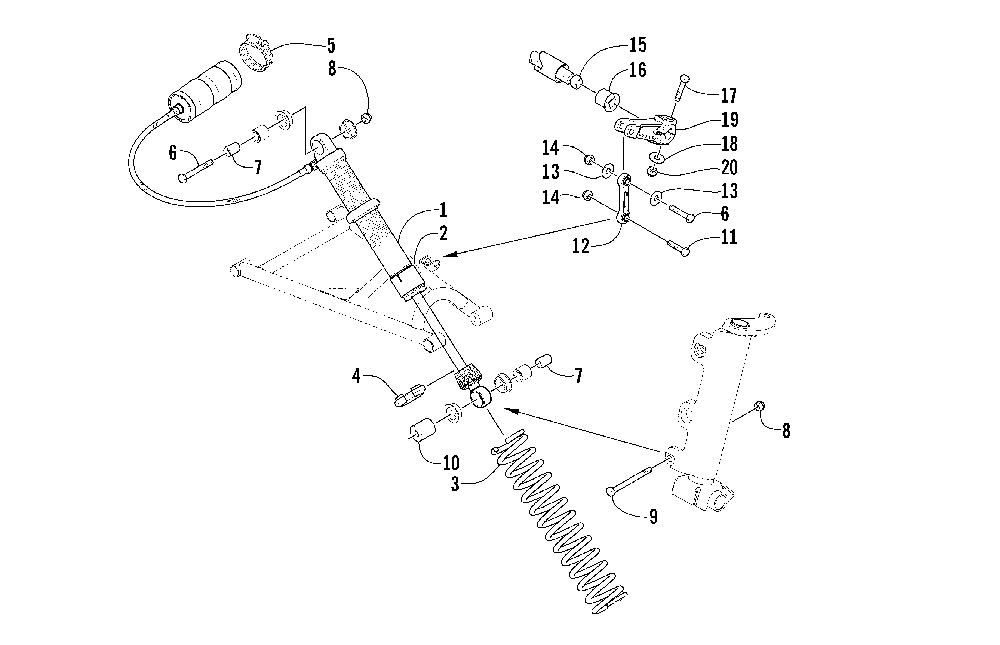

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat Z 440 SNO PRO - 2003 года выпуска`
-
№АртикулНазвание
-
11703-282 SHOCK SUSPENSION (FRONT/RIGHT)SHOCK SUSPENSION (FRONT/RIGHT)
-
11703-283 SHOCK SUSPENSION (FRONT/LEFT)SHOCK SUSPENSION (FRONT/LEFT)
-
21603-271 SLEEVE, WEARSLEEVE, WEAR
-
31703-087 SPRING, COMPRESSION (YELLOW)SPRING, COMPRESSION (YELLOW)
-
41603-890 RETAINER, SPRINGRETAINER, SPRING
-
50214-025 CLAMPCLAMP
-
68002-226 SCREW, CAPSCREW, CAP
-
71603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
88040-486 NUT, LOCKNUT, LOCK
-
98002-232 SCREW, CAPSCREW, CAP
-
100603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
118002-224 SCREW, CAPSCREW, CAP
-
121603-414 LINK, SWAY BARLINK, SWAY BAR
-
138050-272 WASHERWASHER
-
148041-486 NUT, LOCKNUT, LOCK
-
150703-185 SWAY BARSWAY BAR
-
160603-151 BEARINGBEARING
-
178002-137 SCREW, CAPSCREW, CAP
-
188050-242 WASHERWASHER
-
190603-917 ARM, SWAY BARARM, SWAY BAR
-
208040-426 NUT, LOCKNUT, LOCK
