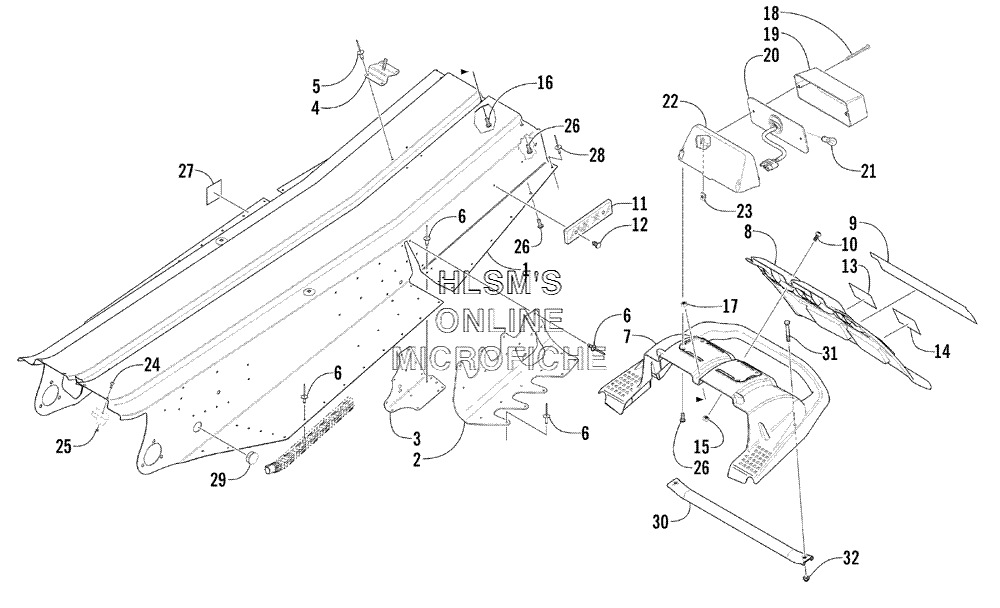

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLIES для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11718-240 TUNNEL ASSEMBLY (INC. 2, 6)TUNNEL ASSEMBLY (INC. 2, 6)
-
22606-616 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
22606-617 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
32606-618 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32606-619 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
41706-970 PLATE, MOUNTING, SEATPLATE, MOUNTING, SEAT
-
50123-418 RIVETRIVET
-
60623-072 RIVETRIVET
-
60623-806 RIVETRIVET
-
68060-506 RIVETRIVET
-
72606-552 BUMPER (REAR)BUMPER (REAR)
-
82606-351 SNOWFLAP (INC. 9)SNOWFLAP (INC. 9)
-
94611-712 DECAL, SNOWFLAPDECAL, SNOWFLAP
-
108017-579 SCREW, MACHINESCREW, MACHINE
-
110606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
120623-269 CLIP, RETAININGCLIP, RETAINING
-
131611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
141611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
158041-366 NUT, LOCKNUT, LOCK
-
168017-577 SCREW, MACHINESCREW, MACHINE
-
170123-108 NUTNUT
-
180623-204 SCREW, MACHINESCREW, MACHINE
-
190609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
200609-230 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
210109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
220609-560 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
231623-023 NUT, SPEEDNUT, SPEED
-
248017-399 SCREW, MACHINESCREW, MACHINE
-
258040-246 NUT, LOCKNUT, LOCK
-
261623-022 SCREWSCREW
-
270411-053 DECAL, CEDECAL, CE
-
288060-506 RIVETRIVET
-
290616-044 PLUG, HOLEPLUG, HOLE
-
302606-858 BRACEBRACE
-
318002-048 SCREWSCREW
-
328041-366 NUT, LOCKNUT, LOCK
