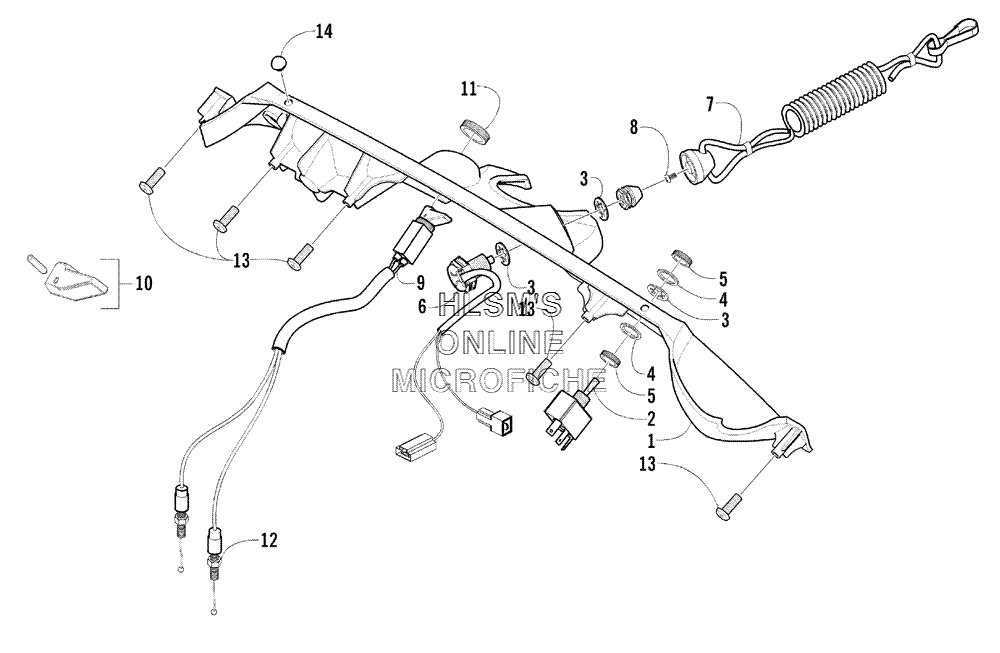

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2606-474 CONSOLE
    CONSOLE
  • 2
    0609-233 SWITCH, HIGH/LOW BEAM (INC. ONE NO. 5)
    SWITCH, HIGH/LOW BEAM (INC. ONE NO. 5)
  • 3
    0123-985 WASHER, LOCK, INTERNAL TOOTH
    WASHER, LOCK, INTERNAL TOOTH
  • 4
    0623-153 WASHER, NYLON
    WASHER, NYLON
  • 5
    0609-220 NUT, KNURLED
    NUT, KNURLED
  • 6
    0709-064 TETHER SWITCH ASSEMBLY (INC. 7, 8)
    TETHER SWITCH ASSEMBLY (INC. 7, 8)
  • 7
    0709-055 TETHER ASSEMBLY (INC. 8)
    TETHER ASSEMBLY (INC. 8)
  • 8
    0623-338 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    0687-145 CABLE, CHOKE (INC. 10, 12)
    CABLE, CHOKE (INC. 10, 12)
  • 10
    0636-062 CHOKE LEVER KIT
    CHOKE LEVER KIT
  • 11
    0687-132 NUT, CHOKE
    NUT, CHOKE
  • 12
    0623-464 NUT, LOCKING, THROTTLE CABLE
    NUT, LOCKING, THROTTLE CABLE
  • 13
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    1612-287 BUMPER, MOLDED
    BUMPER, MOLDED
