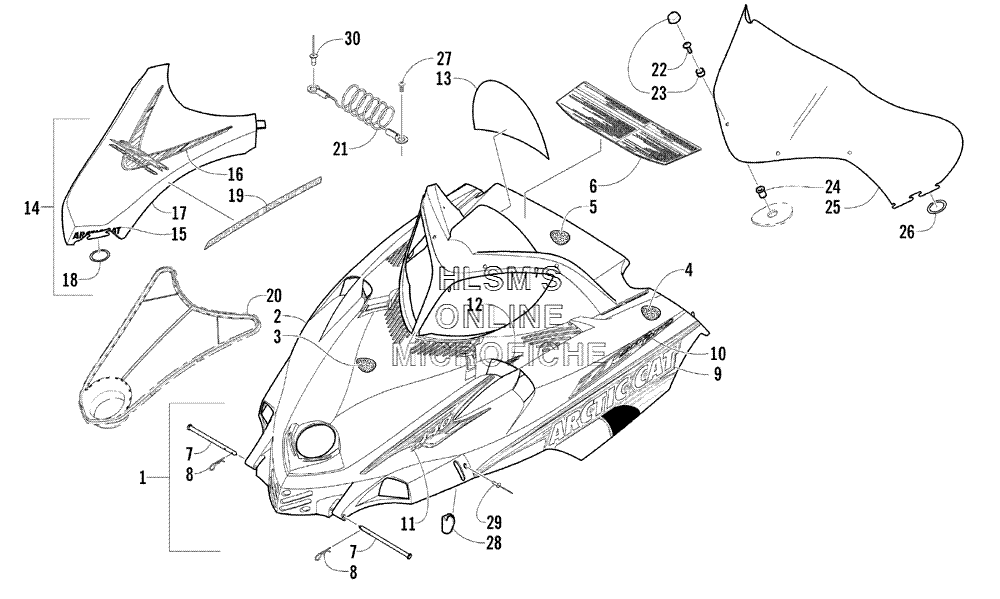

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11718-127 HOOD W/DECALS (INC. 2, 13)HOOD W/DECALS (INC. 2, 13)
-
21718-126 HOOD W/O DECALS (INC. 3, 8)HOOD W/O DECALS (INC. 3, 8)
-
30717-169 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
40717-170 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40717-171 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50717-172 FOAM, HOOD (REAR)FOAM, HOOD (REAR)
-
64611-496 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
71623-026 PIN, CLEVISPIN, CLEVIS
-
80623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
94611-486 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
94611-487 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
104611-484 DECAL, "SNO PRO", HOODDECAL, "SNO PRO", HOOD
-
114611-482 DECAL, HOOD (FRONT) (RIGHT)DECAL, HOOD (FRONT) (RIGHT)
-
114611-483 DECAL, HOOD (FRONT) (LEFT)DECAL, HOOD (FRONT) (LEFT)
-
124611-490 DECAL, HOOD, VENT (REAR) (RIGHT)DECAL, HOOD, VENT (REAR) (RIGHT)
-
124611-491 DECAL, HOOD, VENT (REAR) (LEFT)DECAL, HOOD, VENT (REAR) (LEFT)
-
134611-873 DECAL, GAUGE COVERDECAL, GAUGE COVER
-
141718-249 COVER, HOOD (INC. 15, 19)COVER, HOOD (INC. 15, 19)
-
153611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
164611-488 DECAL, HOOD (CENTER)DECAL, HOOD (CENTER)
-
172706-030 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
182606-801 O-RINGO-RING
-
194611-489 DECAL, "AIRFORCE INDUCTION"DECAL, "AIRFORCE INDUCTION"
-
202606-378 SCREEN, HOODSCREEN, HOOD
-
212606-726 CABLE, HOODCABLE, HOOD
-
220623-902 SCREW, MACHINESCREW, MACHINE
-
230124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
240623-845 NUT, EXPANSIONNUT, EXPANSION
-
252606-347 WINDSHIELDWINDSHIELD
-
260616-032 O-RINGO-RING
-
270623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
281606-441 HOLD, DOWN, HOOD (RIGHT)HOLD, DOWN, HOOD (RIGHT)
-
282606-096 HOLD, DOWN, HOOD (LEFT)HOLD, DOWN, HOOD (LEFT)
-
298061-708 RIVETRIVET
-
308060-508 RIVETRIVET
