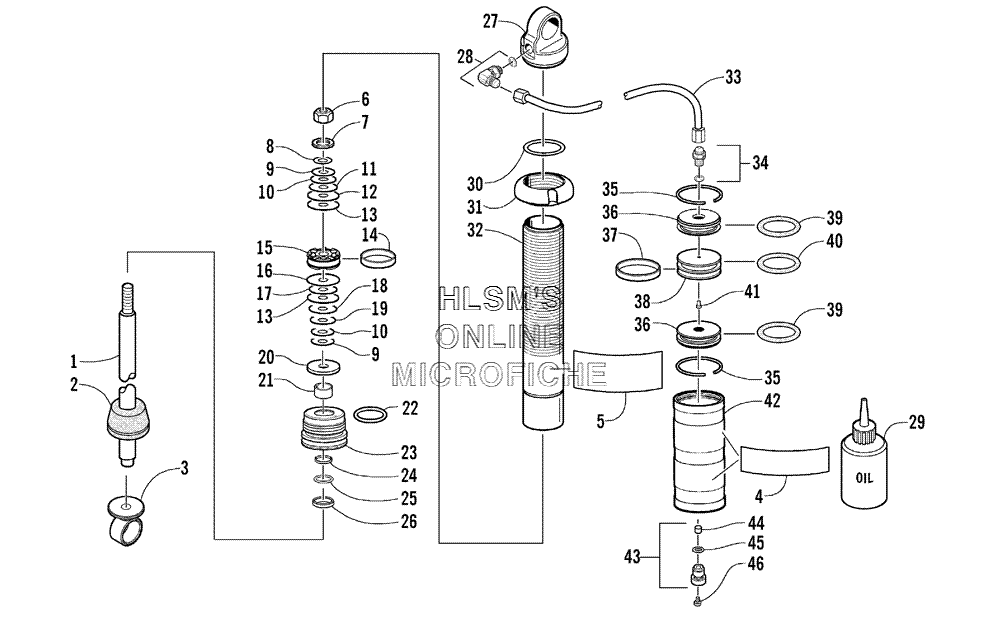

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    1703-040 COMPLETE SHOCK ABSORBER (RIGHT)
    COMPLETE SHOCK ABSORBER (RIGHT)
  • -
    1703-041 COMPLETE SHOCK ABSORBER (LEFT)
    COMPLETE SHOCK ABSORBER (LEFT)
  • 1
    1603-924 ROD, SHOCK
    ROD, SHOCK
  • 2
    1603-921 BUMPER, JOUNCE
    BUMPER, JOUNCE
  • 3
    1603-925 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    1603-932 DECAL, SHOCK
    DECAL, SHOCK
  • 5
    1603-922 DECAL, SHOCK
    DECAL, SHOCK
  • 6
    0603-301 NUT, LOCK
    NUT, LOCK
  • 7
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 8
    0603-331 VALVE, SHOCK 0.700 X 0.008 IN.
    VALVE, SHOCK 0.700 X 0.008 IN.
  • 9
    0603-334 VALVE, SHOCK 0.800 X 0.008 IN.
    VALVE, SHOCK 0.800 X 0.008 IN.
  • 10
    0603-337 VALVE, SHOCK 0.900 X 0.008 IN.
    VALVE, SHOCK 0.900 X 0.008 IN.
  • 11
    0603-341 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 12
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 13
    0603-347 VALVE, SHOCK 1.250 X 0.010 IN.
    VALVE, SHOCK 1.250 X 0.010 IN.
  • 14
    0603-292 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 15
    0603-209 PISTON, 0.081 IN., ORIFICE
    PISTON, 0.081 IN., ORIFICE
  • 16
    0603-350 VALVE, SHOCK 1.300 X 0.010 IN.
    VALVE, SHOCK 1.300 X 0.010 IN.
  • 17
    0603-339 VALVE, SHOCK 1.000 X 0.006 IN.
    VALVE, SHOCK 1.000 X 0.006 IN.
  • 18
    0603-343 VALVE, SHOCK 1.100 X 0.008 IN.
    VALVE, SHOCK 1.100 X 0.008 IN.
  • 19
    0603-340 VALVE, SHOCK 1.000 X 0.008 IN.
    VALVE, SHOCK 1.000 X 0.008 IN.
  • 20
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 21
    1603-928 BEARING
    BEARING
  • 22
    1604-420 O-RING, SLIDING COVER
    O-RING, SLIDING COVER
  • 23
    1603-926 COVER, SLIDING
    COVER, SLIDING
  • 24
    1603-931 O-RING, SEAL
    O-RING, SEAL
  • 25
    1603-929 SEAL
    SEAL
  • 26
    1603-930 SEAL, SCRAPER
    SEAL, SCRAPER
  • 27
    1603-937 END CAP, SHOCK
    END CAP, SHOCK
  • 28
    1603-942 FITTING, ELBOW
    FITTING, ELBOW
  • 29
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 30
    0603-438 O-RING, END CAP
    O-RING, END CAP
  • 31
    0603-805 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 32
    1603-923 BODY, SHOCK
    BODY, SHOCK
  • 33
    1603-934 HOSE, SHOCK
    HOSE, SHOCK
  • 34
    1603-933 FITTING, SHOCK
    FITTING, SHOCK
  • 35
    0604-992 RING, RETAINING
    RING, RETAINING
  • 36
    1603-936 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 37
    1603-235 STRAP, PISTON
    STRAP, PISTON
  • 38
    0603-673 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 39
    0603-671 O-RING
    O-RING
  • 40
    1603-236 O-RING
    O-RING
  • 41
    1604-316 SCREW, RELIEF, W/O-RING
    SCREW, RELIEF, W/O-RING
  • 42
    1603-935 BODY, RESERVOIR
    BODY, RESERVOIR
  • 43
    0703-341 VALVE, PRESSURE, ASSEMBLY (INC. 44, 45)
    VALVE, PRESSURE, ASSEMBLY (INC. 44, 45)
  • 45
    1604-318 O-RING
    O-RING
  • 46
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
