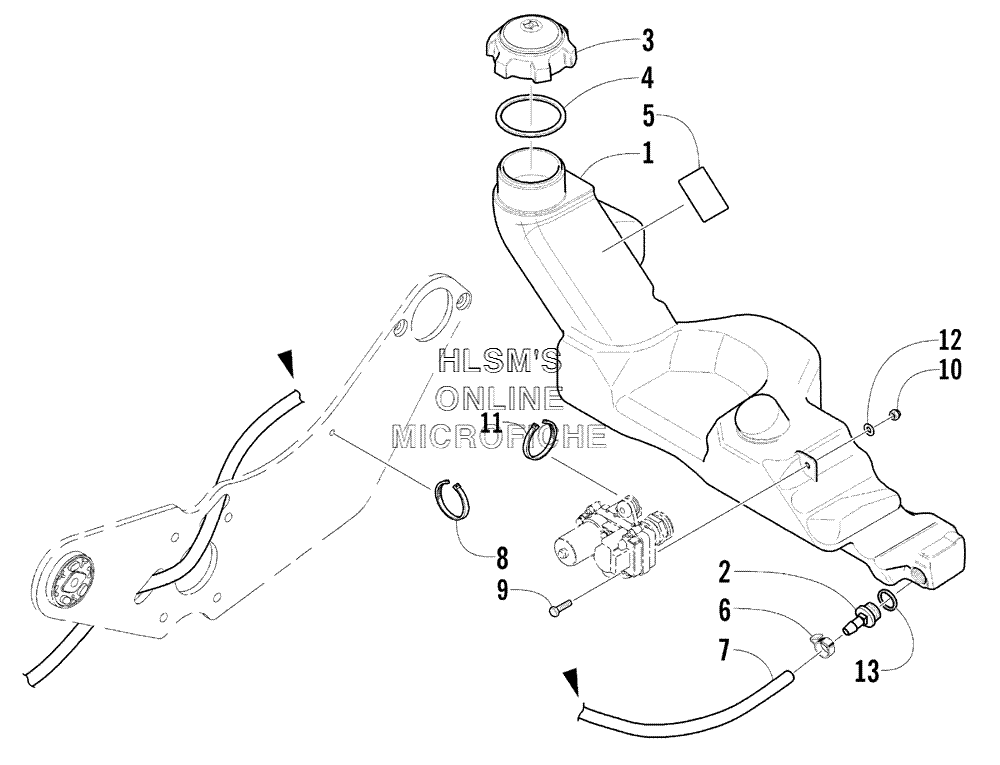

OIL TANK ASSEMBLY для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска
-
№АртикулНазвание
-
11670-423 TANK, OIL (INC. 2)TANK, OIL (INC. 2)
-
21670-481 FITTING, OIL TANKFITTING, OIL TANK
-
30670-871 CAP, OIL TANK (INC. 4)CAP, OIL TANK (INC. 4)
-
40109-733 SEAL, CAP, OIL TANKSEAL, CAP, OIL TANK
-
54611-532 DECAL, OIL TANKDECAL, OIL TANK
-
60124-045 CLAMP, HOSECLAMP, HOSE
-
70610-015 HOSE, OIL (100 FT)HOSE, OIL (100 FT)
-
70610-016 HOSE, OIL (25 FT)HOSE, OIL (25 FT)
-
80123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
98002-042 SCREW, CAPSCREW, CAP
-
108041-366 NUT, LOCKNUT, LOCK
-
110123-903 CABLE TIE, 11.5 IN.CABLE TIE, 11.5 IN.
-
128050-217 WASHERWASHER
-
131670-482 GROMMETGROMMET
