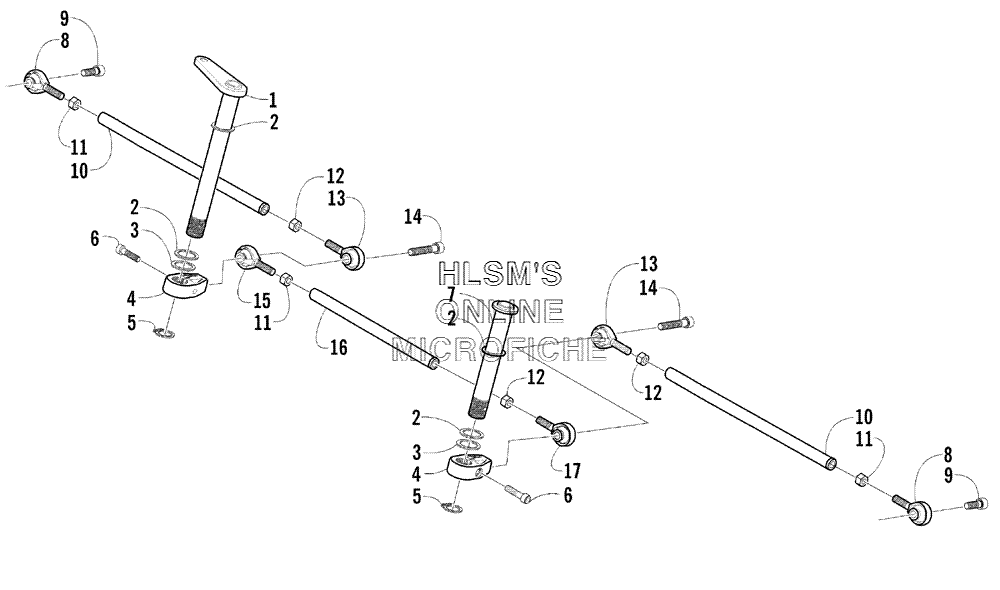

TIE ROD ASSEMBLY для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0705-397 BELLCRANK, STEERING
    BELLCRANK, STEERING
  • 2
    0623-954 WASHER, THRUST
    WASHER, THRUST
  • 3
    0623-955 WASHER, THRUST
    WASHER, THRUST
  • 4
    0605-598 ARM, BELLCRANK
    ARM, BELLCRANK
  • 5
    0623-956 SNAP RING
    SNAP RING
  • 6
    8005-584 SCREW, CAP
    SCREW, CAP
  • 7
    0705-398 BELLCRANK, IDLER
    BELLCRANK, IDLER
  • 8
    0605-608 BALL JOINT, TIE ROD (RIGHT)
    BALL JOINT, TIE ROD (RIGHT)
  • 9
    8005-673 SCREW, CAP
    SCREW, CAP
  • 10
    0605-204 TUBE, TIE ROD, SPINDLE
    TUBE, TIE ROD, SPINDLE
  • 11
    0623-294 NUT, HEX (RIGHT)
    NUT, HEX (RIGHT)
  • 12
    0123-917 NUT, HEX (LEFT)
    NUT, HEX (LEFT)
  • 13
    0605-607 BALL JOINT, STEERING (LEFT)
    BALL JOINT, STEERING (LEFT)
  • 14
    8005-678 SCREW, CAP
    SCREW, CAP
  • 15
    0605-606 BALL JOINT, TIE ROD (RIGHT)
    BALL JOINT, TIE ROD (RIGHT)
  • 16
    0605-312 TUBE, TIE ROD
    TUBE, TIE ROD
  • 17
    0605-605 BALL JOINT, TIE ROD (LEFT)
    BALL JOINT, TIE ROD (LEFT)
