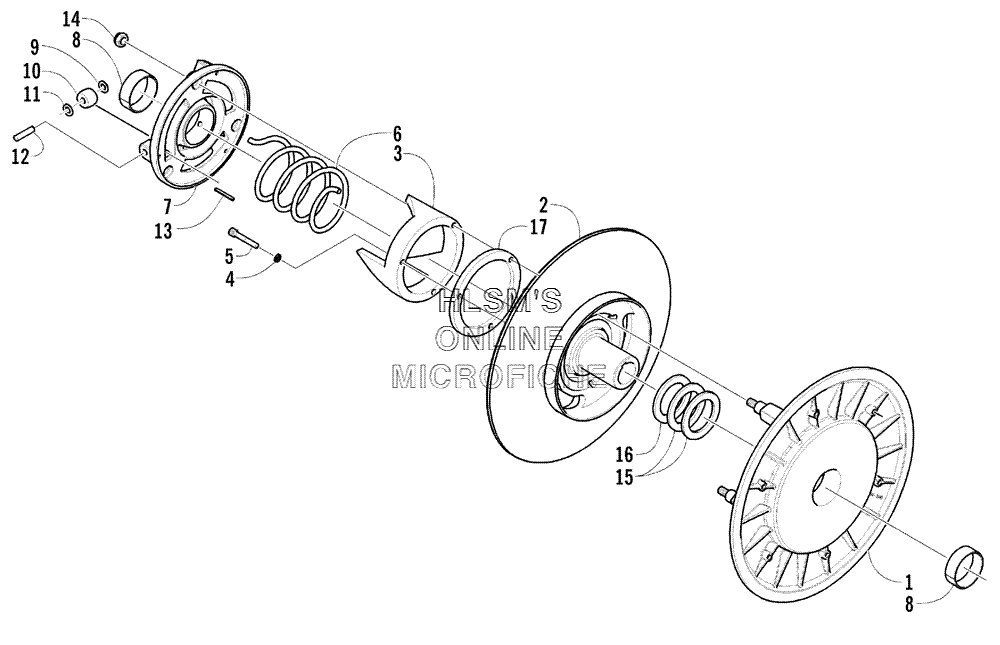

DRIVEN CLUTCH для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    0726-140 CLUTCH, DRIVEN ASSY
    CLUTCH, DRIVEN ASSY
  • 1
    0748-023 SHEAVE, MOVABLE (INC. ONE NO. 8)
    SHEAVE, MOVABLE (INC. ONE NO. 8)
  • 2
    0748-588 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 3
    0648-130 BRACKET, TORQUE, 55°/52°
    BRACKET, TORQUE, 55°/52°
  • 4
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 5
    8005-404 SCREW, SOCKET HEAD
    SCREW, SOCKET HEAD
  • 6
    0748-025 SPRING, DRIVEN CLUTCH, LIGHT GREEN
    SPRING, DRIVEN CLUTCH, LIGHT GREEN
  • 7
    0748-589 PLATE, ROLLER, ASSEMBLY (INC. ONE NO. 8 AND 9, 13)
    PLATE, ROLLER, ASSEMBLY (INC. ONE NO. 8 AND 9, 13)
  • 8
    0648-009 BEARING
    BEARING
  • 9
    0648-431 WASHER, SPRING
    WASHER, SPRING
  • 10
    0648-123 ROLLER, CAM
    ROLLER, CAM
  • 11
    0648-082 WASHER, THRUST, CAM ROLLER
    WASHER, THRUST, CAM ROLLER
  • 12
    0648-097 PIN, CAM ROLLER
    PIN, CAM ROLLER
  • 13
    8070-224 PIN, SPRING
    PIN, SPRING
  • 14
    8040-426 NUT, LOCK
    NUT, LOCK
  • 15
    0148-198 WASHER, THRUST: 0.030 IN.
    WASHER, THRUST: 0.030 IN.
  • 15
    0148-199 WASHER, THRUST: 0.060 IN.
    WASHER, THRUST: 0.060 IN.
  • 16
    0623-852 WASHER, THRUST, 0.010 IN.
    WASHER, THRUST, 0.010 IN.
  • 17
    0148-237 SPACER
    SPACER
