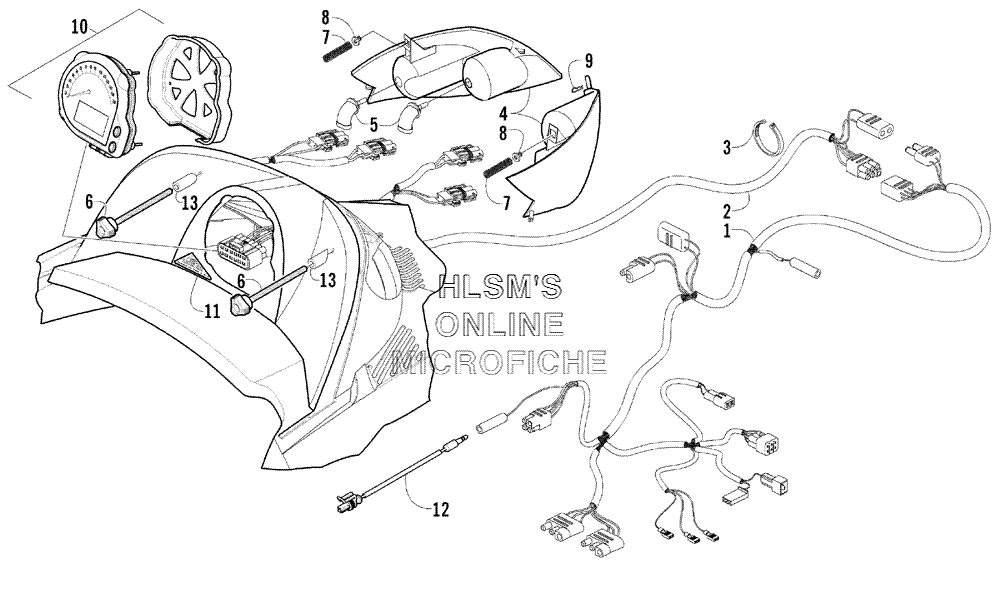

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0686-741 HARNESS, MAIN
    HARNESS, MAIN
  • 2
    0686-742 HARNESS, HOOD
    HARNESS, HOOD
  • 3
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 4
    0609-532 LENS/REFLECTOR, HEADLIGHT (RIGHT)
    LENS/REFLECTOR, HEADLIGHT (RIGHT)
  • 4
    0609-533 LENS/REFLECTOR, HEADLIGHT (LEFT)
    LENS/REFLECTOR, HEADLIGHT (LEFT)
  • 5
    0609-251 BULB, HEADLIGHT
    BULB, HEADLIGHT
  • 6
    1623-024 SCREW, ADJUSTER
    SCREW, ADJUSTER
  • 7
    0123-614 SPRING, ADJUSTER
    SPRING, ADJUSTER
  • 8
    1623-025 INSERT
    INSERT
  • 9
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 10
    0620-258 TACHOMETER/SPEEDOMETER
    TACHOMETER/SPEEDOMETER
  • 11
    3611-611 DECAL, "MADE IN U.S.A.", DOMED
    DECAL, "MADE IN U.S.A.", DOMED
  • 12
    0686-655 HARNESS, ADAPTER, TEMPERATURE SWITCH
    HARNESS, ADAPTER, TEMPERATURE SWITCH
  • 13
    2606-826 SPACER, HEADLIGHT ADJUSTER SCREW
    SPACER, HEADLIGHT ADJUSTER SCREW
