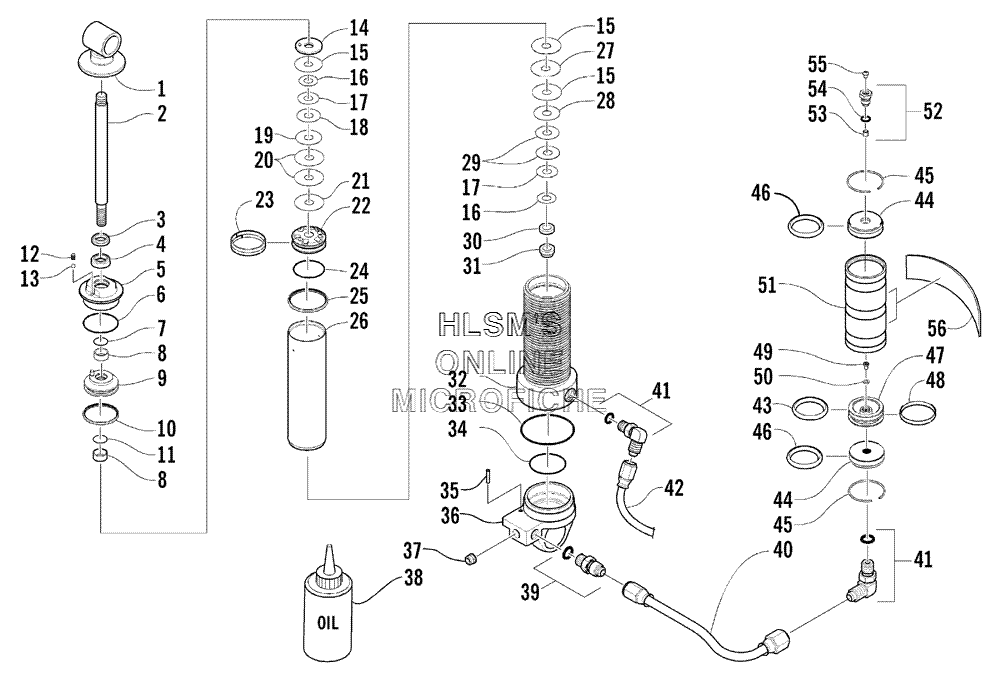

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 440 SNO PRO (USA) - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    0704-744 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • -
    0704-750 COMPLETE REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
    COMPLETE REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
  • 1
    0604-625 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    2604-230 ROD, SHOCK
    ROD, SHOCK
  • 3
    2604-216 SEAL, WIPER
    SEAL, WIPER
  • 4
    2604-215 SEAL, U, CUP
    SEAL, U, CUP
  • 5
    2604-217 CAP, SHOCK
    CAP, SHOCK
  • 6
    1604-420 O-RING
    O-RING
  • 7
    1603-001 O-RING
    O-RING
  • 8
    2604-203 BEARING
    BEARING
  • 9
    2604-227 PISTON, SEPARATOR
    PISTON, SEPARATOR
  • 10
    0603-447 O-RING
    O-RING
  • 11
    2604-213 O-RING
    O-RING
  • 12
    1603-940 SCREW
    SCREW
  • 13
    1604-315 BALL, ADJUSTER
    BALL, ADJUSTER
  • 14
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 15
    0603-347 VALVE, SHOCK 1.250 X 0.010 IN.
    VALVE, SHOCK 1.250 X 0.010 IN.
  • 16
    0603-335 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 17
    0603-338 VALVE, SHOCK 0.900 X 0.010 IN.
    VALVE, SHOCK 0.900 X 0.010 IN.
  • 18
    0603-881 VALVE, SHOCK 1.000 X 0.012 IN.
    VALVE, SHOCK 1.000 X 0.012 IN.
  • 19
    0603-882 VALVE, SHOCK 1.100 X 0.012 IN.
    VALVE, SHOCK 1.100 X 0.012 IN.
  • 20
    0603-350 VALVE, SHOCK 1.300 X 0.010 IN.
    VALVE, SHOCK 1.300 X 0.010 IN.
  • 21
    0603-890 VALVE, SHOCK 1.300 X 0.015 IN.
    VALVE, SHOCK 1.300 X 0.015 IN.
  • 22
    2604-225 PISTON, SHOCK
    PISTON, SHOCK
  • 23
    0603-292 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 24
    2604-214 O-RING
    O-RING
  • 25
    0604-810 O-RING
    O-RING
  • 26
    2604-220 BODY, SHOCK
    BODY, SHOCK
  • 27
    0603-883 VALVE, SHOCK 1.250 X 0.012 IN.
    VALVE, SHOCK 1.250 X 0.012 IN.
  • 28
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 29
    0603-341 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 30
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 31
    0603-301 NUT, CAP
    NUT, CAP
  • 32
    2604-232 SLEEVE, ADJUSTER
    SLEEVE, ADJUSTER
  • 33
    0604-809 O-RING
    O-RING
  • 34
    0603-438 O-RING
    O-RING
  • 35
    1604-097 PIN, ROLL, SPRING
    PIN, ROLL, SPRING
  • 36
    2604-222 END CAP, SHOCK
    END CAP, SHOCK
  • 37
    2604-207 PLUG, BRASS
    PLUG, BRASS
  • 38
    1639-245 OIL, SHOCK, 6 QT CASE
    OIL, SHOCK, 6 QT CASE
  • 39
    1603-933 FITTING, ADAPTER
    FITTING, ADAPTER
  • 40
    2604-210 HOSE, SHOCK/RESERVOIR
    HOSE, SHOCK/RESERVOIR
  • 41
    1603-942 FITTING, ELBOW
    FITTING, ELBOW
  • 42
    2604-209 HOSE ARM FRONT SHOCK/REAR ARM SHOCK
    HOSE ARM FRONT SHOCK/REAR ARM SHOCK
  • 43
    1603-236 O-RING
    O-RING
  • 44
    1603-936 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 45
    0604-992 RETAINER, END CAP
    RETAINER, END CAP
  • 46
    1604-436 O-RING
    O-RING
  • 47
    0603-673 PISTON, FLOATING
    PISTON, FLOATING
  • 48
    1603-235 STRAP, PISTON
    STRAP, PISTON
  • 49
    1604-316 SCREW, RELIEF (INC. 50)
    SCREW, RELIEF (INC. 50)
  • 50
    1604-425 O-RING
    O-RING
  • 51
    1603-935 BODY, RESERVOIR
    BODY, RESERVOIR
  • 52
    0703-341 VALVE, PRESSURE ASSEMBLY (INC. 53, 54)
    VALVE, PRESSURE ASSEMBLY (INC. 53, 54)
  • 54
    1604-318 O-RING, VALVE
    O-RING, VALVE
  • 55
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 56
    1603-932 DECAL, SHOCK
    DECAL, SHOCK
