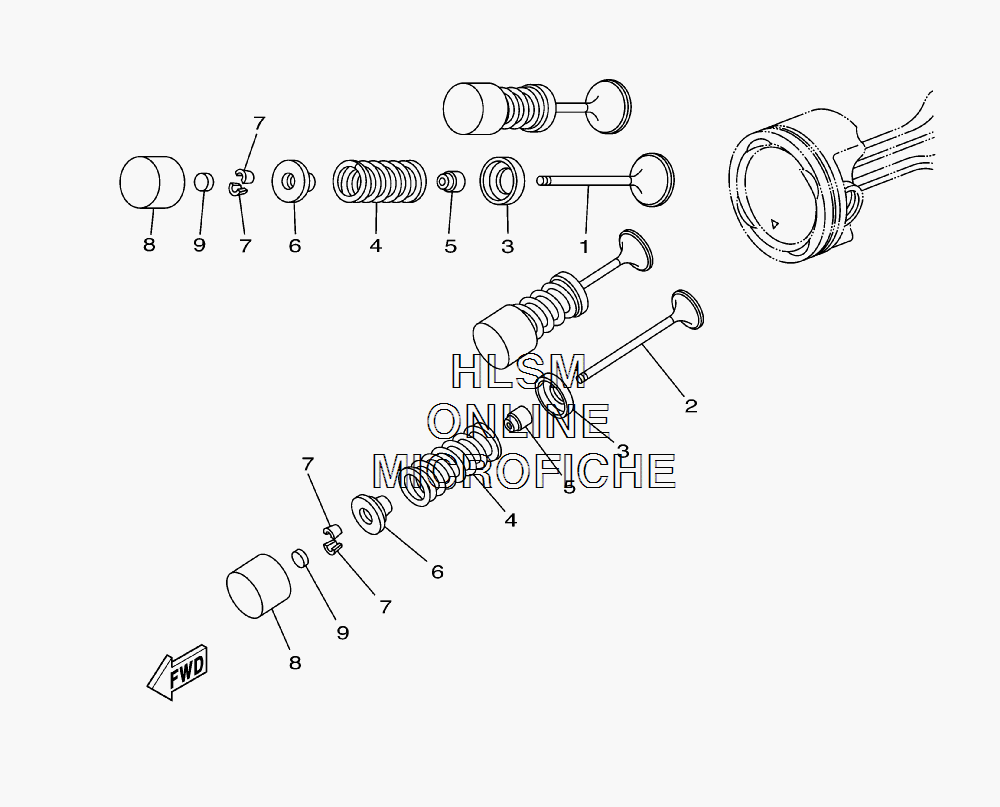

VALVE ASSY. W/ CAM CHAIN ASSY. для Yamaha MORPHOUS - 2008 года выпуска`
-
№АртикулНазвание
-
15VG-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25VG-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
33GM-12126-00-00 SEAT, VALVE SPRING 2SEAT, VALVE SPRING 2
-
45VG-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
54SV-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
65BE-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
71WG-12118-00-00 COTTER, VALVECOTTER, VALVE
-
85EB-12153-20-00 LIFTER, VALVE (OPT) (BLUE)LIFTER, VALVE (OPT) (BLUE)
-
85EB-12153-09-00 LIFTER, VALVE (O/S) (OPT) (OPT) (GREEN)LIFTER, VALVE (O/S) (OPT) (OPT) (GREEN)
-
85EB-12153-30-00 LIFTER, VALVE (OPT) (RED)LIFTER, VALVE (OPT) (RED)
-
93LD-12168-00-00 PAD, ADJUSTING (1.20) (OPT)PAD, ADJUSTING (1.20) (OPT)
-
93LD-12168-20-00 PAD, ADJUSTING (1.25) (OPT)PAD, ADJUSTING (1.25) (OPT)
-
93LD-12168-40-00 PAD, ADJUSTING (1.30) (OPT)PAD, ADJUSTING (1.30) (OPT)
-
93LD-12168-60-00 PAD, ADJUSTING (1.35) (OPT)PAD, ADJUSTING (1.35) (OPT)
-
93LD-12168-80-00 PAD, ADJUSTING (1.40) (OPT)PAD, ADJUSTING (1.40) (OPT)
-
93LD-12168-A0-00 PAD, ADJUSTING (1.45) (OPT)PAD, ADJUSTING (1.45) (OPT)
-
93LD-12168-F0-00 PAD, ADJUSTING (1.50) (OPT)PAD, ADJUSTING (1.50) (OPT)
-
93LD-12169-50-00 PAD, ADJUSTING (2.00) (OPT)PAD, ADJUSTING (2.00) (OPT)
-
93LD-12169-70-00 PAD, ADJUSTING (2.05) (OPT)PAD, ADJUSTING (2.05) (OPT)
-
93LD-12169-90-00 PAD, ADJUSTING (2.10) (OPT)PAD, ADJUSTING (2.10) (OPT)
-
93LD-12169-E0-00 PAD, ADJUSTING (2.15) (OPT)PAD, ADJUSTING (2.15) (OPT)
-
93LD-12169-G0-00 PAD, ADJUSTING (2.20) (OPT)PAD, ADJUSTING (2.20) (OPT)
-
93LD-12169-J0-00 PAD, ADJUSTING (2.25) (OPT)PAD, ADJUSTING (2.25) (OPT)
-
93LD-12169-L0-00 PAD, ADJUSTING (2.30) (OPT)PAD, ADJUSTING (2.30) (OPT)
-
93LD-12169-N0-00 PAD, ADJUSTING (2.35) (OPT)PAD, ADJUSTING (2.35) (OPT)
-
93LD-12169-T0-00 PAD, ADJUSTING (2.40) (OPT)PAD, ADJUSTING (2.40) (OPT)
-
93LD-12168-H1-00 PAD, ADJUSTING (1.55) (OPT)PAD, ADJUSTING (1.55) (OPT)
-
93LD-12168-K1-00 PAD, ADJUSTING (1.60) (OPT)PAD, ADJUSTING (1.60) (OPT)
-
93LD-12168-M1-00 PAD, ADJUSTING (1.65) (OPT)PAD, ADJUSTING (1.65) (OPT)
-
93LD-12168-R1-00 PAD, ADJUSTING (1.70) (OPT)PAD, ADJUSTING (1.70) (OPT)
-
93LD-12168-U1-00 PAD, ADJUSTING (1.75) (OPT)PAD, ADJUSTING (1.75) (OPT)
-
93LD-12168-W1-00 PAD, ADJUSTING (1.80) (OPT)PAD, ADJUSTING (1.80) (OPT)
-
93LD-12168-Y1-00 PAD, ADJUSTING (1.85) (OPT)PAD, ADJUSTING (1.85) (OPT)
-
93LD-12169-11-00 PAD, ADJUSTING (1.90) (OPT)PAD, ADJUSTING (1.90) (OPT)
-
93LD-12169-31-00 PAD, ADJUSTING (1.95) (OPT)PAD, ADJUSTING (1.95) (OPT)
