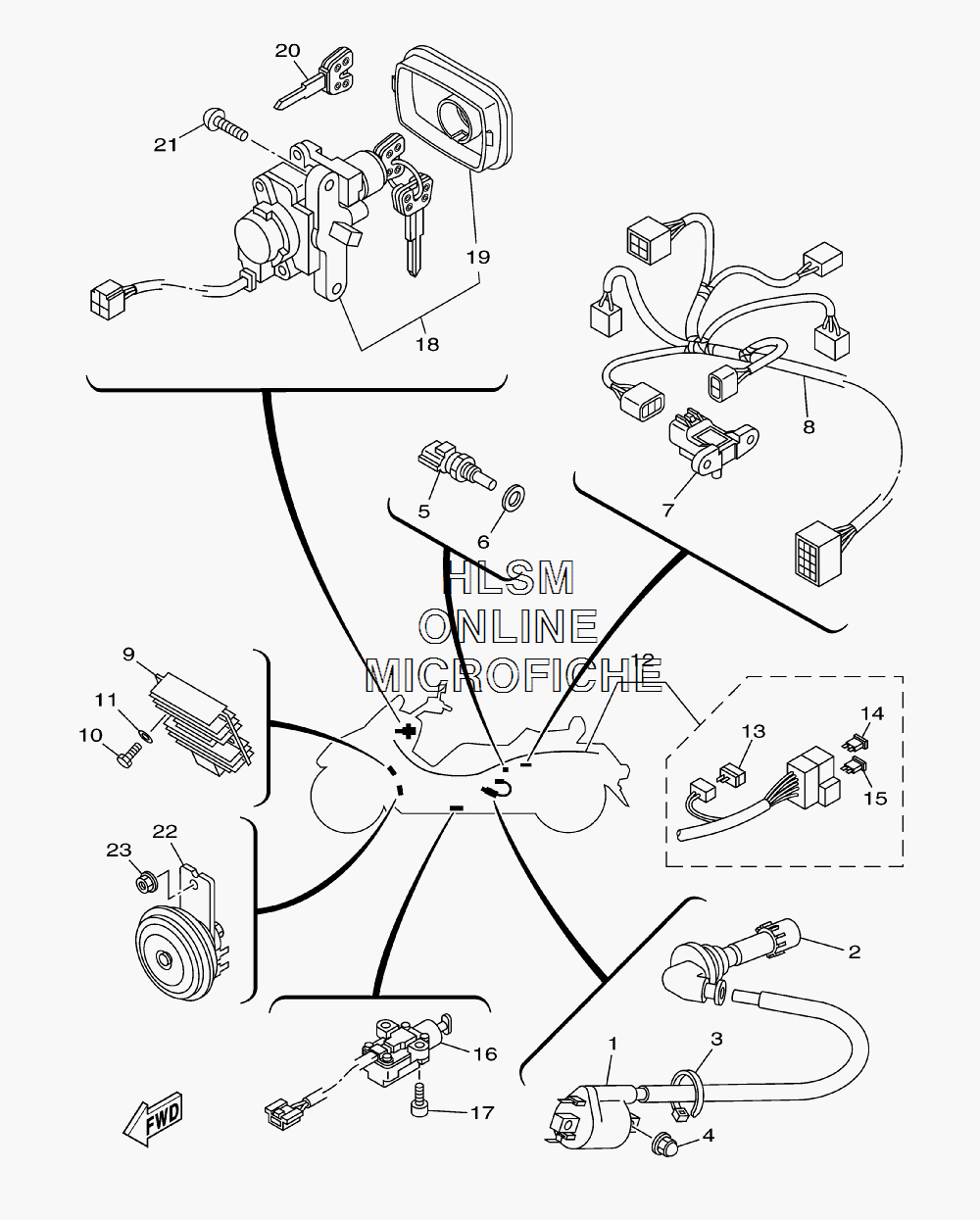

ELECTRICAL 2 для Yamaha MORPHOUS - 2008 года выпуска`
-
№АртикулНазвание
-
11B7-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
25RU-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
390465-10098-00 BANDBAND
-
490176-06011-00 NUT, CROWNNUT, CROWN
-
55PS-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
690430-12202-00 GASKET (2GH)GASKET (2GH)
-
75PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
81B7-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
94XY-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1097007-06020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
121B7-82590-11-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
134WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
145JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
155JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
165RU-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1790110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
181B7-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
195SJ-82552-21-00 ...CAP, SWITCH...CAP, SWITCH
-
204BH-82511-09-00 BLANK KEYBLANK KEY
-
2190149-06002-00 SCREWSCREW
-
221B7-83371-00-00 HORNHORN
-
2395707-06500-00 NUT, FLANGE (4MV)NUT, FLANGE (4MV)
