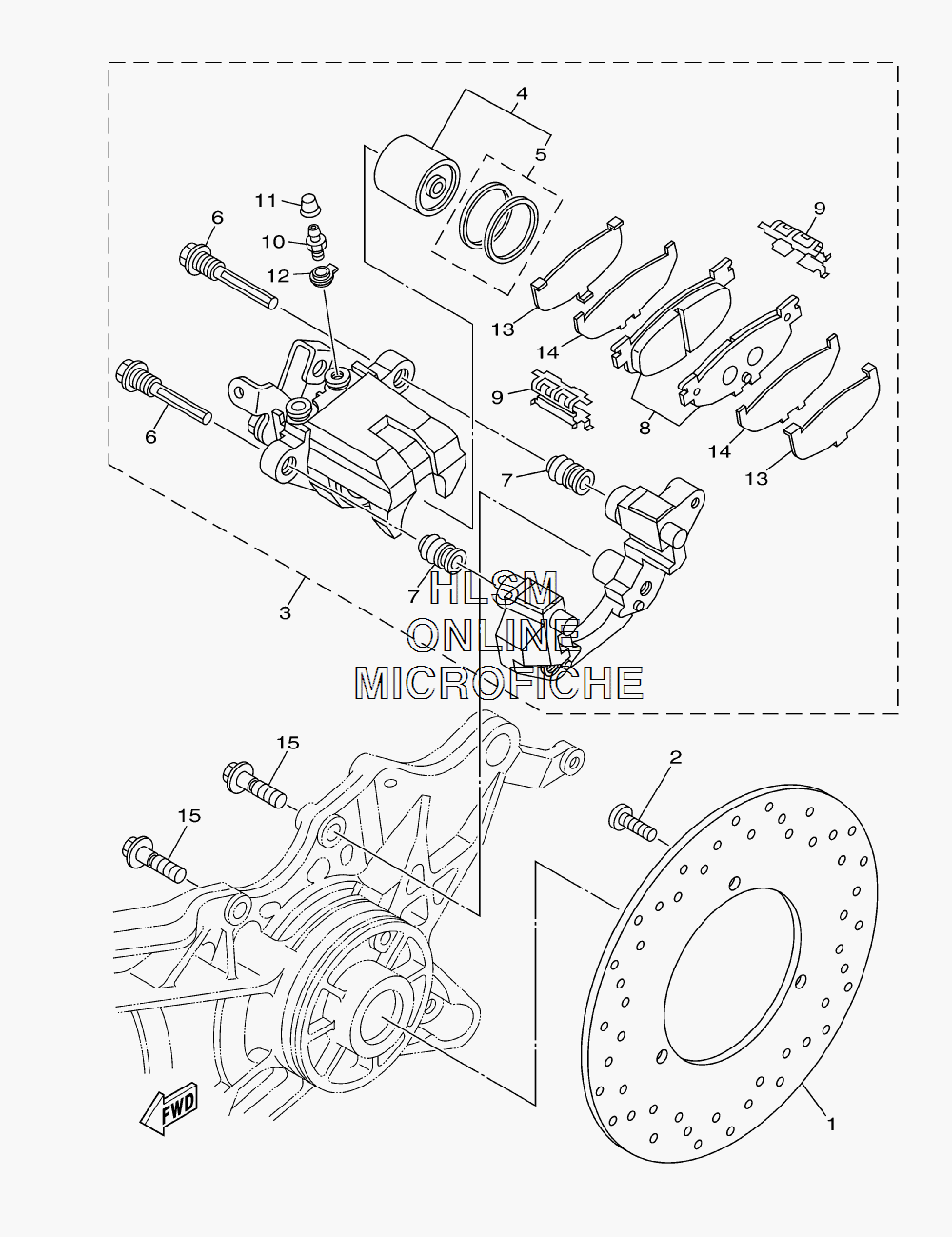

BRAKE - REAR CALIPER для Yamaha MORPHOUS - 2008 года выпуска`
-
№АртикулНазвание
-
11B7-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
31B7-2580W-10-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
44D9-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55GJ-W0047-01-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
64D9-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
81B7-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
94TT-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
105GM-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
111D7-25825-00-00 ...CAP...CAP
-
125GM-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
131B7-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
141B7-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1590105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
