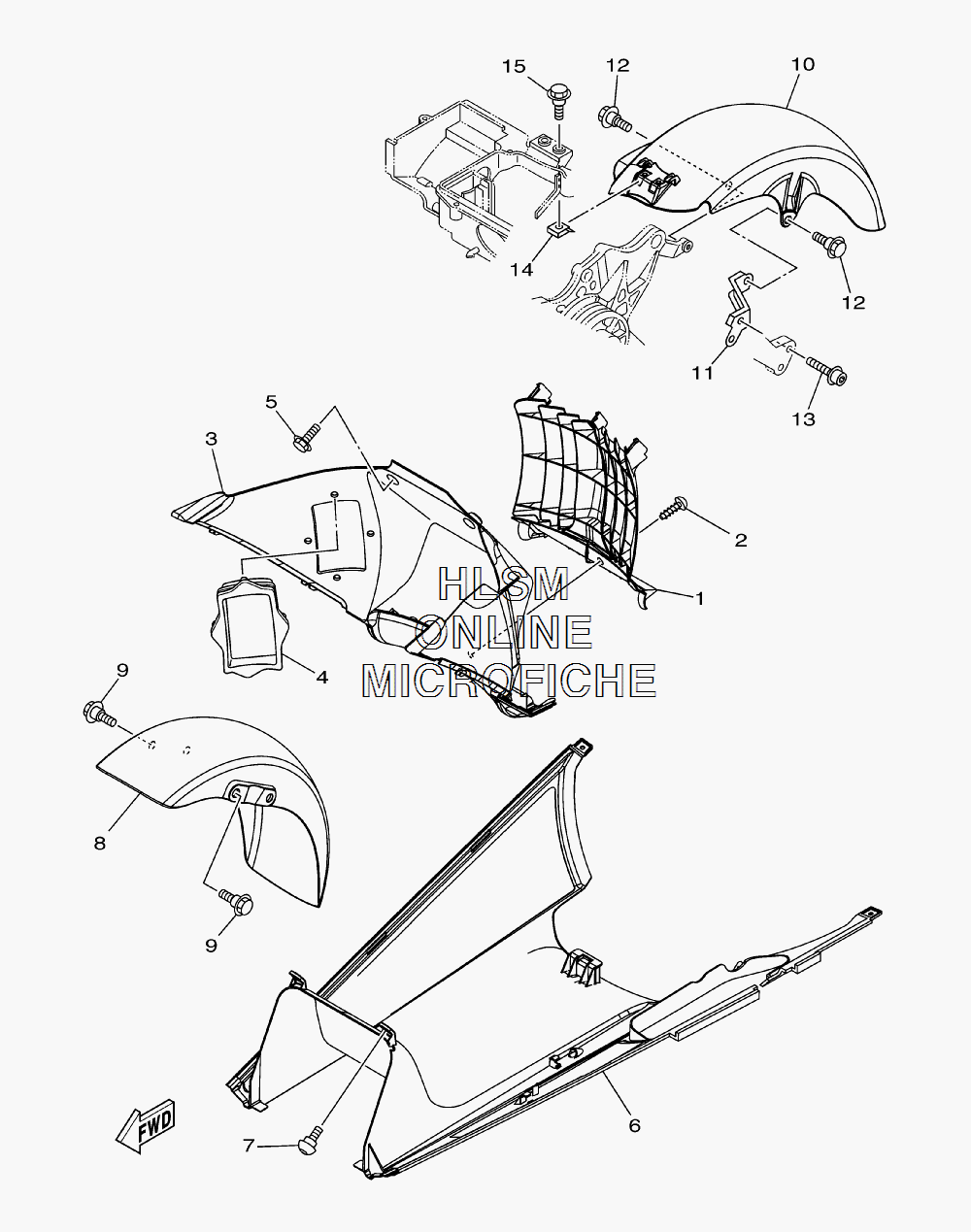

FENDER - FRONT / REAR для Yamaha MORPHOUS - 2008 года выпуска`
-
№АртикулНазвание
-
11B7-21521-00-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
31B7-21557-10-00 DUCT, AIRDUCT, AIR
-
41B7-21541-10-00 DAMPER 1DAMPER 1
-
590119-06044-00 BOLT WITH WASHERBOLT WITH WASHER
-
61B7-21553-00-00 FENDER, INNER 2FENDER, INNER 2
-
790109-06084-00 BOLTBOLT
-
81B7-21511-00-00 FENDER, FRONTFENDER, FRONT
-
990109-06200-00 BOLTBOLT
-
101B7-21611-00-00 FENDER, REARFENDER, REAR
-
111B7-21612-00-00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
1290109-06043-00 BOLTBOLT
-
1390109-067E6-00 BOLT (3AK)BOLT (3AK)
-
1490183-050A0-00 NUT, SPRINGNUT, SPRING
-
1590109-05003-00 BOLTBOLT
