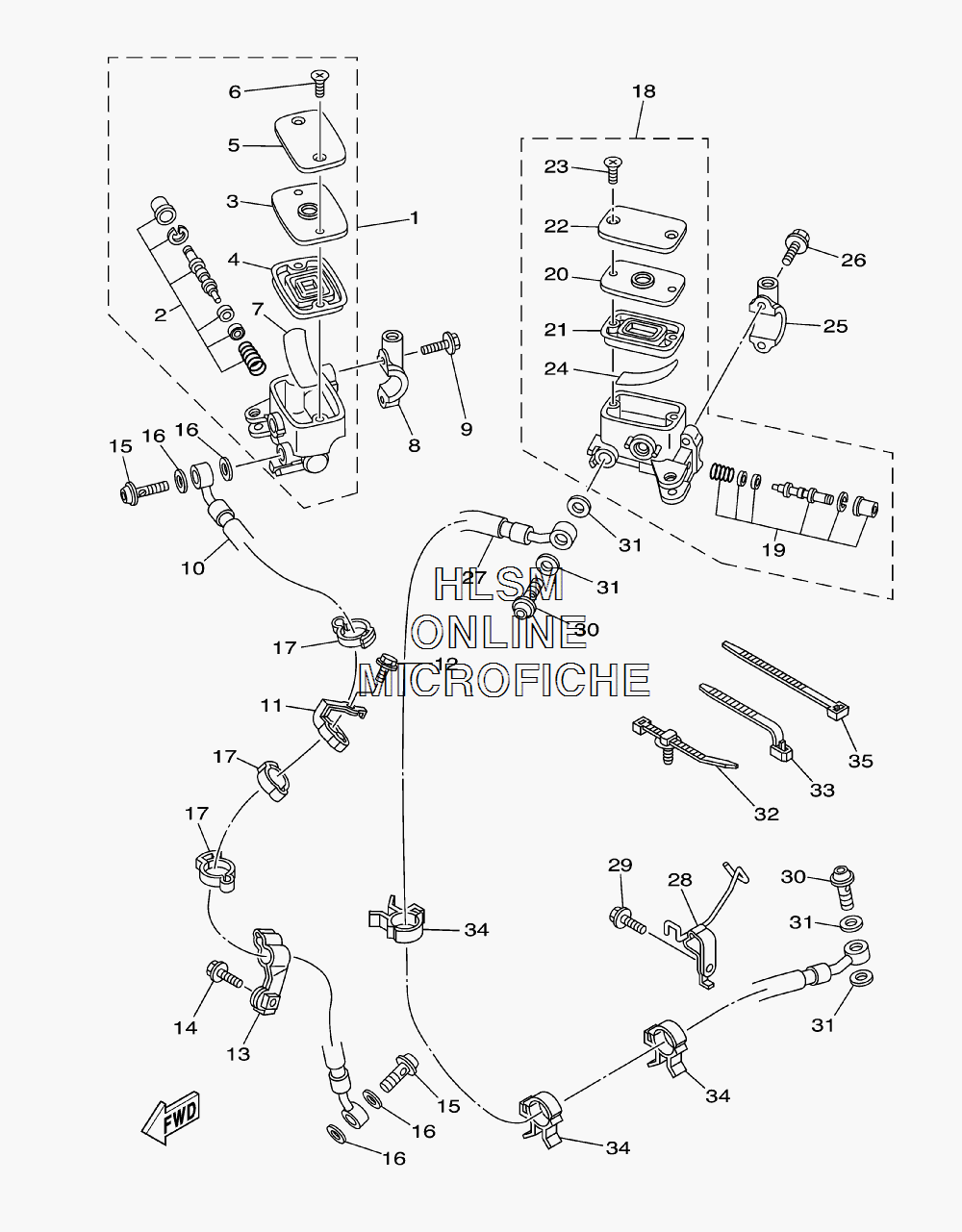

BRAKE - FRONT MASTER CYLINDER для Yamaha MORPHOUS - 2008 года выпуска`
-
№АртикулНазвание
-
11B7-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
21B7-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VU-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
45VU-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
55VU-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
636Y-2589H-00-00 ...SCREW...SCREW
-
73YX-25896-00-00 ...PLATE, RESERVOIR...PLATE, RESERVOIR
-
85RU-25867-10-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
995027-06030-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
101B7-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
111B7-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1295807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
131B7-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1590401-10172-00 BOLT, UNIONBOLT, UNION
-
1690430-10005-00 GASKETGASKET
-
1790464-14003-00 CLAMPCLAMP
-
185RU-25870-10-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
195VU-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
205VU-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
215VU-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
225VU-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
2336Y-2589H-00-00 ...SCREW...SCREW
-
243YX-25896-00-00 ...PLATE, RESERVOIR...PLATE, RESERVOIR
-
255RU-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
2695027-06030-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
271B7-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
281B7-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2995807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3090401-10172-00 BOLT, UNIONBOLT, UNION
-
3190430-10005-00 GASKETGASKET
-
325RU-12491-00-00 CLAMP 1CLAMP 1
-
3390460-15126-00 CLAMP, HOSECLAMP, HOSE
-
3490464-25217-00 CLAMPCLAMP
-
3590464-20258-00 CLAMPCLAMP
