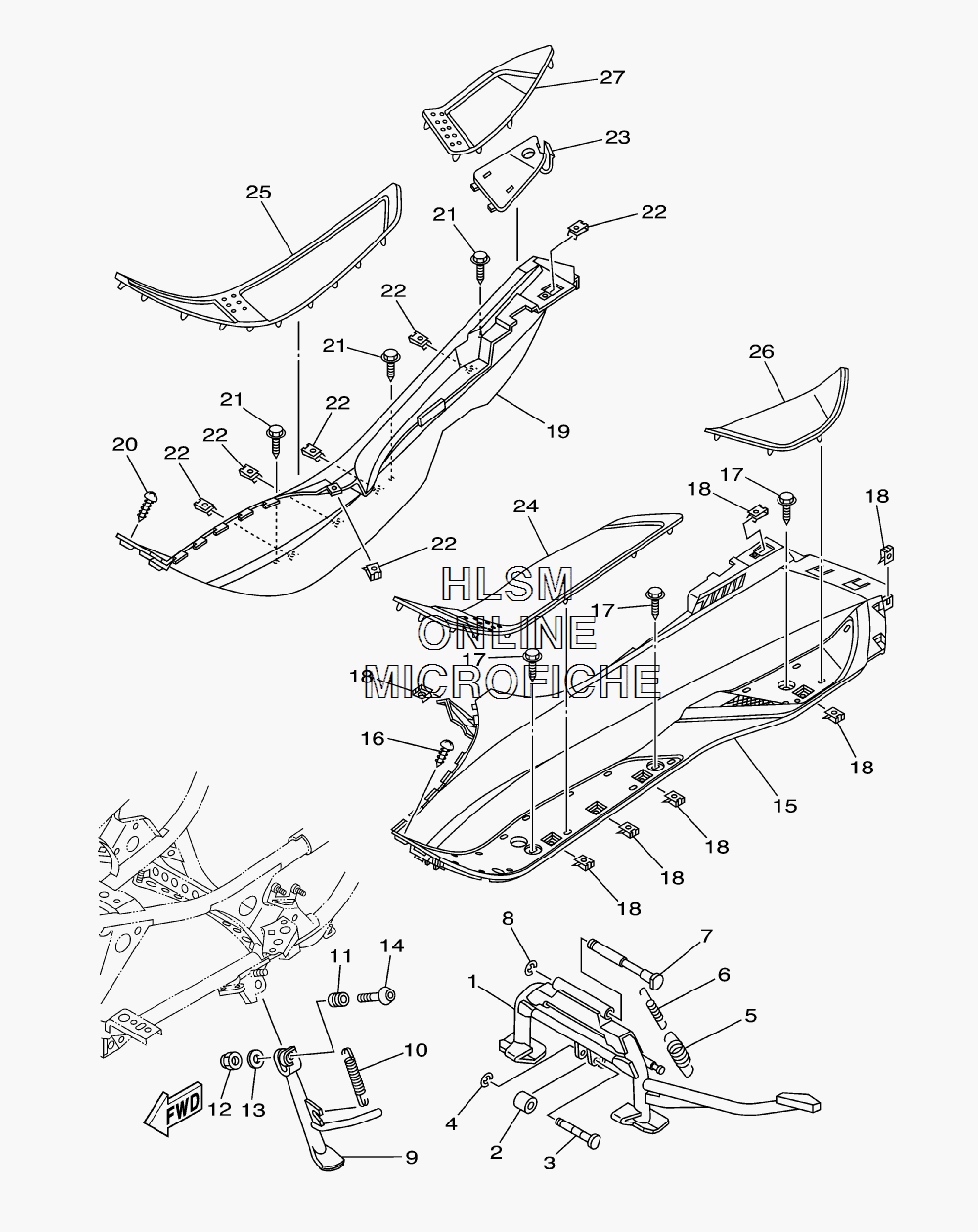

STAND W/ FOOTREST для Yamaha MORPHOUS - 2008 года выпуска
-
№АртикулНазвание
-
11B7-27111-02-00 STAND, MAINSTAND, MAIN
-
25RU-27214-01-00 STOPPERSTOPPER
-
35RU-27112-00-00 SHAFT, MAIN STANDSHAFT, MAIN STAND
-
499001-04600-00 CLIPCLIP
-
590506-40006-00 SPRING, TENSIONSPRING, TENSION
-
690506-20010-00 SPRING, TENSIONSPRING, TENSION
-
758K-27112-02-00 SHAFT, MAIN STANDSHAFT, MAIN STAND
-
893430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
91B7-27311-00-00 STAND, SIDESTAND, SIDE
-
1090506-23005-00 SPRING, TENSIONSPRING, TENSION
-
1190387-10020-00 COLLARCOLLAR
-
1290185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390201-101J1-00 WASHER, PLATEWASHER, PLATE
-
1490111-10022-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
151B7-27481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
1697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1790119-06226-00 BOLT WITH WASHERBOLT WITH WASHER
-
1890183-05042-00 NUT, SPRINGNUT, SPRING
-
191B7-27488-00-00 BOARD, FOOTREST 2BOARD, FOOTREST 2
-
2097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2190119-06226-00 BOLT WITH WASHERBOLT WITH WASHER
-
2290183-05042-00 NUT, SPRINGNUT, SPRING
-
231B7-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
241B7-27483-00-00 MAT 1MAT 1
-
251B7-27484-00-00 MAT 2MAT 2
-
261B7-27493-00-00 MAT 3MAT 3
-
271B7-27494-00-00 MAT 4MAT 4
