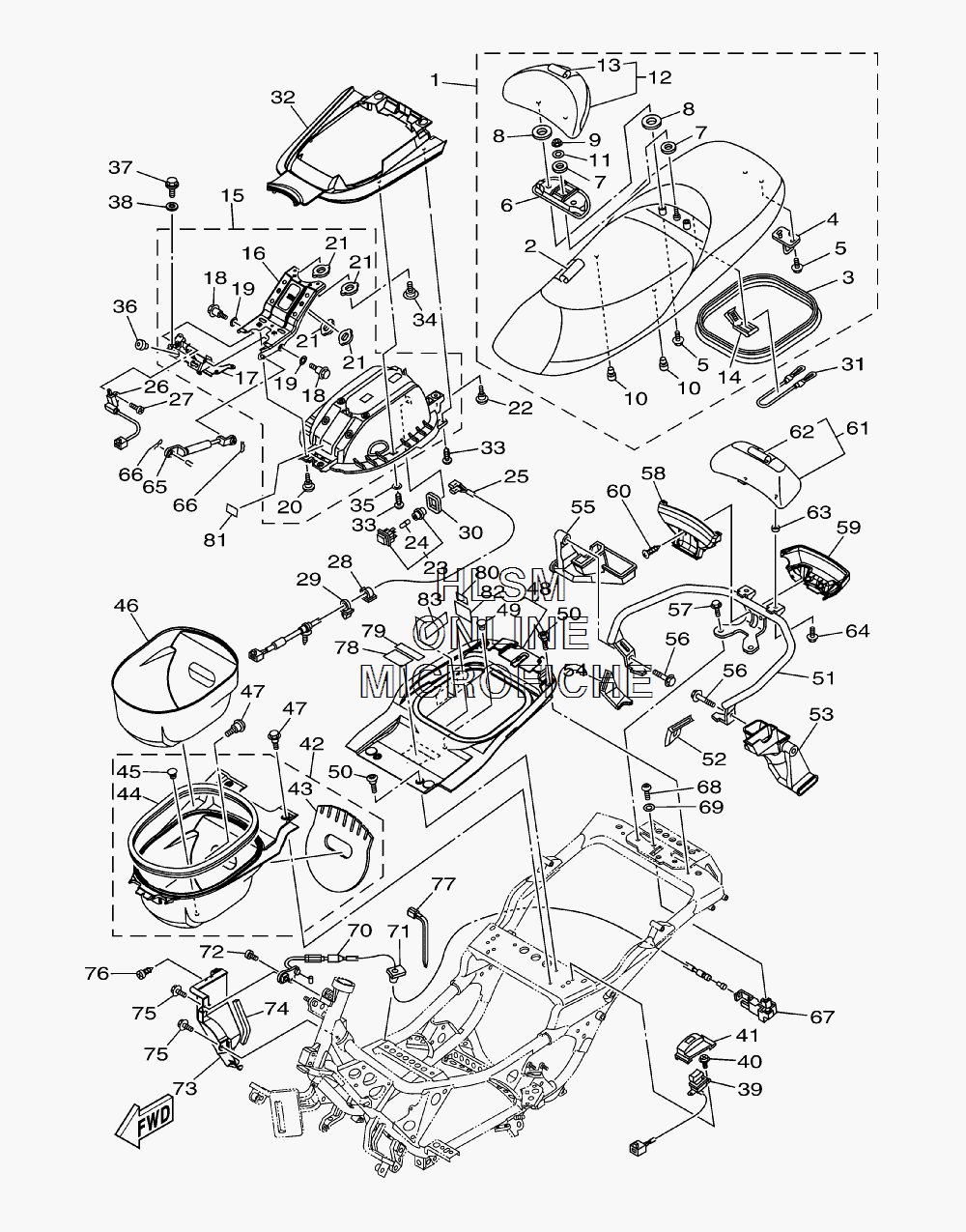

SEAT ASSY. для Yamaha MORPHOUS - 2008 года выпуска
-
№АртикулНазвание
-
11B7-24730-01-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
21B7-24731-00-00 ...COVER, SEAT...COVER, SEAT
-
31B7-2475M-00-00 ...SEAL...SEAL
-
41B7-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
595807-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
61B7-24752-09-00 ...PLATE...PLATE
-
71B7-28429-00-00 ...SEAL 2...SEAL 2
-
81B7-2844E-00-00 ...SEAL 3...SEAL 3
-
995707-06500-00 ...NUT, FLANGE (4MV)...NUT, FLANGE (4MV)
-
105SL-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
1190201-06380-00 ...WASHER, PLATE...WASHER, PLATE
-
121B7-24790-00-00 ...SEAT BACK ASSY...SEAT BACK ASSY
-
131B7-24791-00-00 ...COVER, SEAT BACK...COVER, SEAT BACK
-
1459V-21646-00-00 ...BAND...BAND
-
151B7-2470E-00-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
161B7-24769-00-00 ...HINGE, SEAT...HINGE, SEAT
-
171B7-24726-00-00 ...HINGE, SEAT...HINGE, SEAT
-
1890109-063F5-00 ...BOLT...BOLT
-
1990206-10M04-00 ...WASHER, WAVE...WASHER, WAVE
-
2090109-06084-00 ...BOLT...BOLT
-
211B7-28428-00-00 ...SEAL 1...SEAL 1
-
2290109-06084-00 BOLTBOLT
-
234HC-84770-00-00 LIGHT, ACCESORYLIGHT, ACCESORY
-
244HC-84347-00-00 ...BULB (12V-2W)...BULB (12V-2W)
-
251B7-82583-00-00 BANDBAND
-
261B7-81860-00-00 SWITCH ASSYSWITCH ASSY
-
2798907-03010-00 BOLT, SOCKETBOLT, SOCKET
-
2890464-07002-00 CLAMPCLAMP
-
2990464-12001-00 CLAMPCLAMP
-
305GJ-2839M-00-00 SEAL, BOX 2SEAL, BOX 2
-
314HC-21398-00-00 HANGER, HELMETHANGER, HELMET
-
321B7-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
3397707-40012-00 SCREW, TRUSSSCREW, TRUSS
-
3492017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3590430-04002-00 GASKETGASKET
-
365PS-24741-00-00 PAD, SEATPAD, SEAT
-
3795817-08016-00 BOLT, FLANGE (JN5)BOLT, FLANGE (JN5)
-
3890201-096J9-00 WASHER, PLATEWASHER, PLATE
-
391B7-8259F-00-00 SWITCH ASSYSWITCH ASSY
-
4090159-05028-00 SCREW WITH WASHERSCREW WITH WASHER
-
411B7-2471P-00-00 PLATE, COVERPLATE, COVER
-
421B7-24704-00-00 BOX ASSYBOX ASSY
-
431B7-24747-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
441B7-24858-00-00 ...SEAL...SEAL
-
4590338-06018-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
461B7-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
4790109-06084-00 BOLTBOLT
-
481B7-2475A-00-00 SEAT BOX ASSYSEAT BOX ASSY
-
4990338-06018-00 ...PLUG, SPEC'L SHAPE...PLUG, SPEC'L SHAPE
-
5090109-06084-00 BOLTBOLT
-
511B7-24773-00-00 HANDLE, SEATHANDLE, SEAT
-
521B7-24845-00-00 COVER 1COVER 1
-
531B7-2484L-00-00 TRAYTRAY
-
541B7-24846-00-00 COVER 2COVER 2
-
551B7-2484M-00-00 TRAY, 2TRAY, 2
-
5690105-08098-00 BOLT, FLANGEBOLT, FLANGE
-
5795817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
581B7-24796-00-00 COVERCOVER
-
591B7-2475X-00-00 COVER, 2COVER, 2
-
6097707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
611B7-2840F-00-00 BACK REST ASSYBACK REST ASSY
-
621B7-2843F-00-00 ...COVER ASSY...COVER ASSY
-
6390387-085E1-00 COLLARCOLLAR
-
6495817-08016-00 BOLT, FLANGE (JN5)BOLT, FLANGE (JN5)
-
651B7-2478G-00-00 STOPPERSTOPPER
-
6690468-18121-00 CLIPCLIP
-
671B7-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
6890111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6990201-06029-00 WASHER, PLATEWASHER, PLATE
-
701B7-2478E-11-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
711B7-24625-00-00 GUIDE, CAPGUIDE, CAP
-
7292017-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
731B7-2476U-00-00 PROTECTOR, 1PROTECTOR, 1
-
741B7-2834E-00-00 DAMPER 3DAMPER 3
-
7590119-06205-00 BOLT WITH WASHERBOLT WITH WASHER
-
7697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
7790460-15126-00 CLAMP, HOSECLAMP, HOSE
-
785FB-21668-01-00 LABEL, TIRELABEL, TIRE
-
793JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
805RU-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
813TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
825RU-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
831B7-2176P-00-00 PLATE, EPA (CALIF ONLY)PLATE, EPA (CALIF ONLY)
