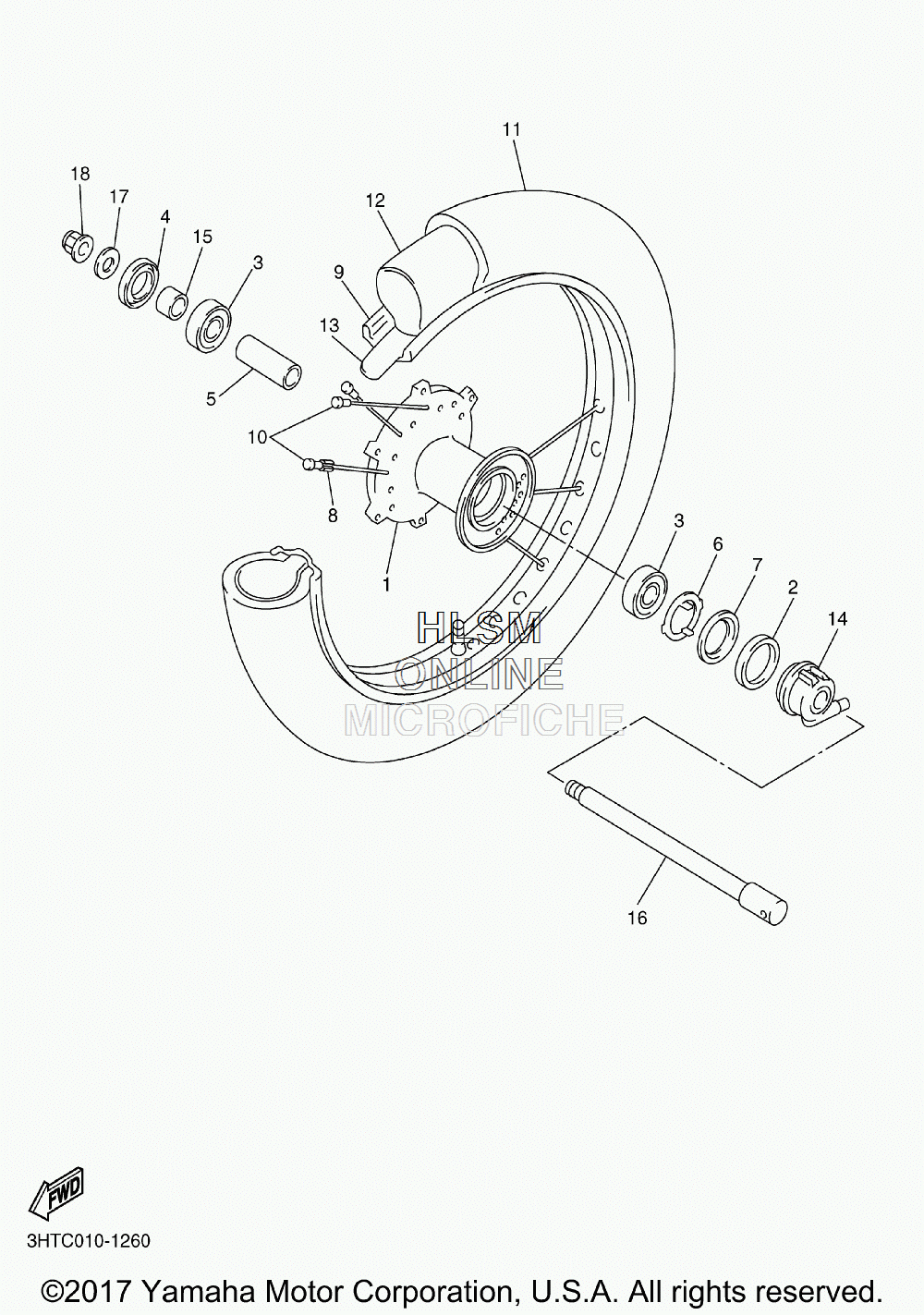

WHEEL - FRONT для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
13JB-25111-00-00 HUB, FRONTHUB, FRONT
-
293105-45017-00 OIL SEALOIL SEAL
-
393306-30317-00 BEARINGBEARING
-
493106-28023-00 OIL SEALOIL SEAL
-
590560-17126-00 SPACERSPACER
-
6341-25149-00-00 CLUTCH, METERCLUTCH, METER
-
7341-25846-00-00 RETAINER, CLUTCHRETAINER, CLUTCH
-
83HT-25398-00-00 BALANCER, WHEEL (15G)BALANCER, WHEEL (15G)
-
994418-18003-00 RIM (1.85-18)RIM (1.85-18)
-
105JX-25104-00-00 SPOKE SET, FRONTSPOKE SET, FRONT
-
1194109-18015-00 TIRE (90/100-18M/C 54S BT45F) (BRIDGESTONE)TIRE (90/100-18M/C 54S BT45F) (BRIDGESTONE)
-
1294209-18003-00 TUBE (90/100-18 MC) (BRIDGESTONE)TUBE (90/100-18 MC) (BRIDGESTONE)
-
1394330-18087-00 BAND, RIM (2.15-18) (BRIDGESTONE)BAND, RIM (2.15-18) (BRIDGESTONE)
-
141FK-25190-02-00 GEAR UNIT ASSYGEAR UNIT ASSY
-
1590387-177R1-00 COLLARCOLLAR
-
16341-25181-02-00 AXLE, WHEELAXLE, WHEEL
-
1792903-14200-00 WASHERWASHER
-
1895604-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
