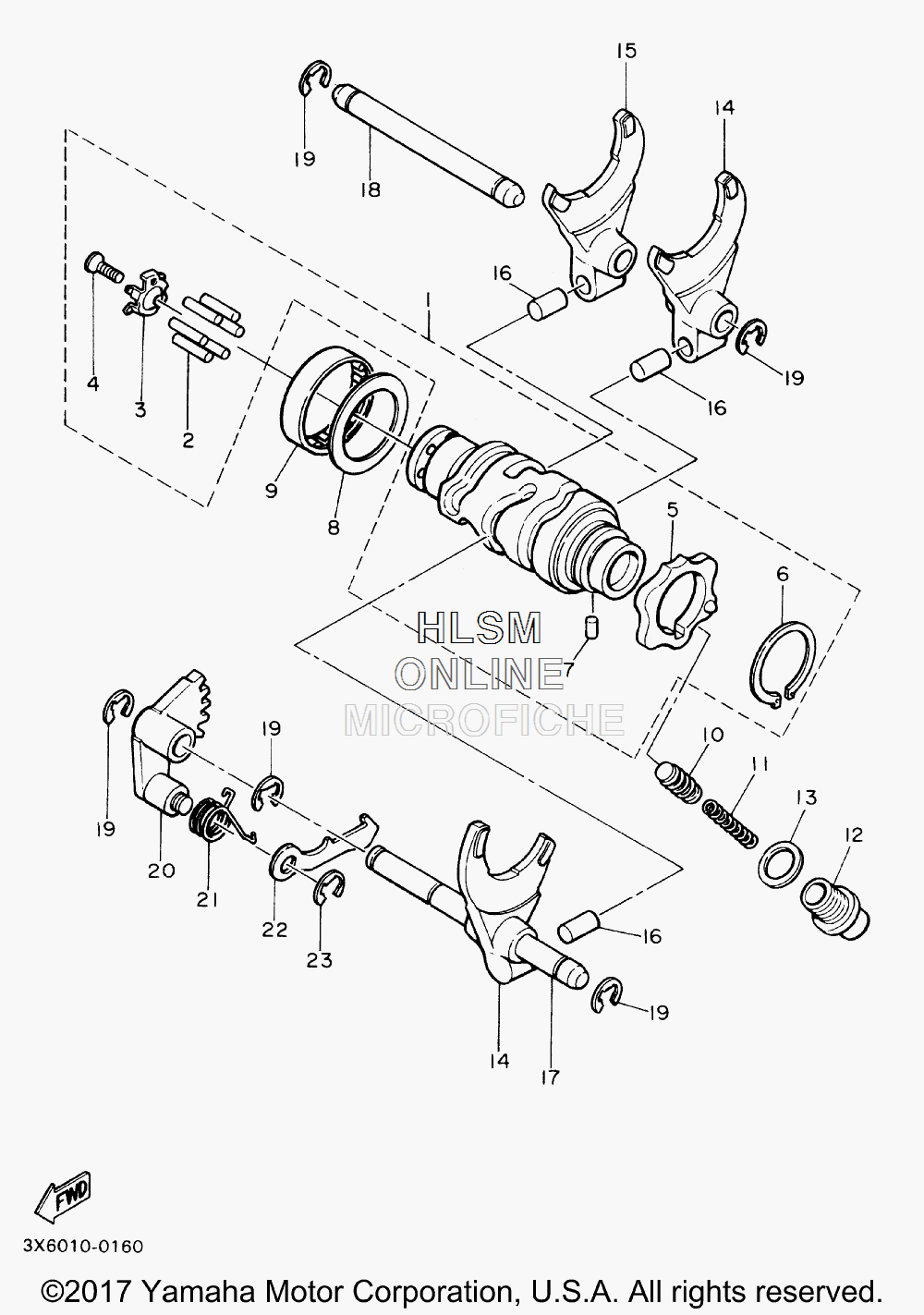

SHIFT CAM W/ FORK для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
12J2-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293604-18100-00 ...PIN, DOWEL...PIN, DOWEL
-
3434-18561-00-00 ...PLATE, SIDE 1...PLATE, SIDE 1
-
498701-05012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
52J2-W1814-00-00 ...PLATE STOPPER COMP....PLATE STOPPER COMP.
-
693410-30012-00 ...CIRCLIP...CIRCLIP
-
793604-08071-00 ...PIN, DOWEL...PIN, DOWEL
-
890201-32673-00 WASHER, PLATEWASHER, PLATE
-
993315-23208-00 BEARINGBEARING
-
101J7-18547-00-00 STOPPER, CAMSTOPPER, CAM
-
1190501-10062-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1290109-14001-00 BOLTBOLT
-
1390430-14043-00 GASKETGASKET
-
14364-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
15363-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
1690250-08017-00 PIN, STRAIGHTPIN, STRAIGHT
-
17363-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
18363-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
1999001-08600-00 CIRCLIPCIRCLIP
-
20434-18122-00-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
2190508-08334-00 SPRING, TORSIONSPRING, TORSION
-
22498-18151-03-00 LEVER, SHIFT 3LEVER, SHIFT 3
-
2399001-07600-00 CIRCLIPCIRCLIP
