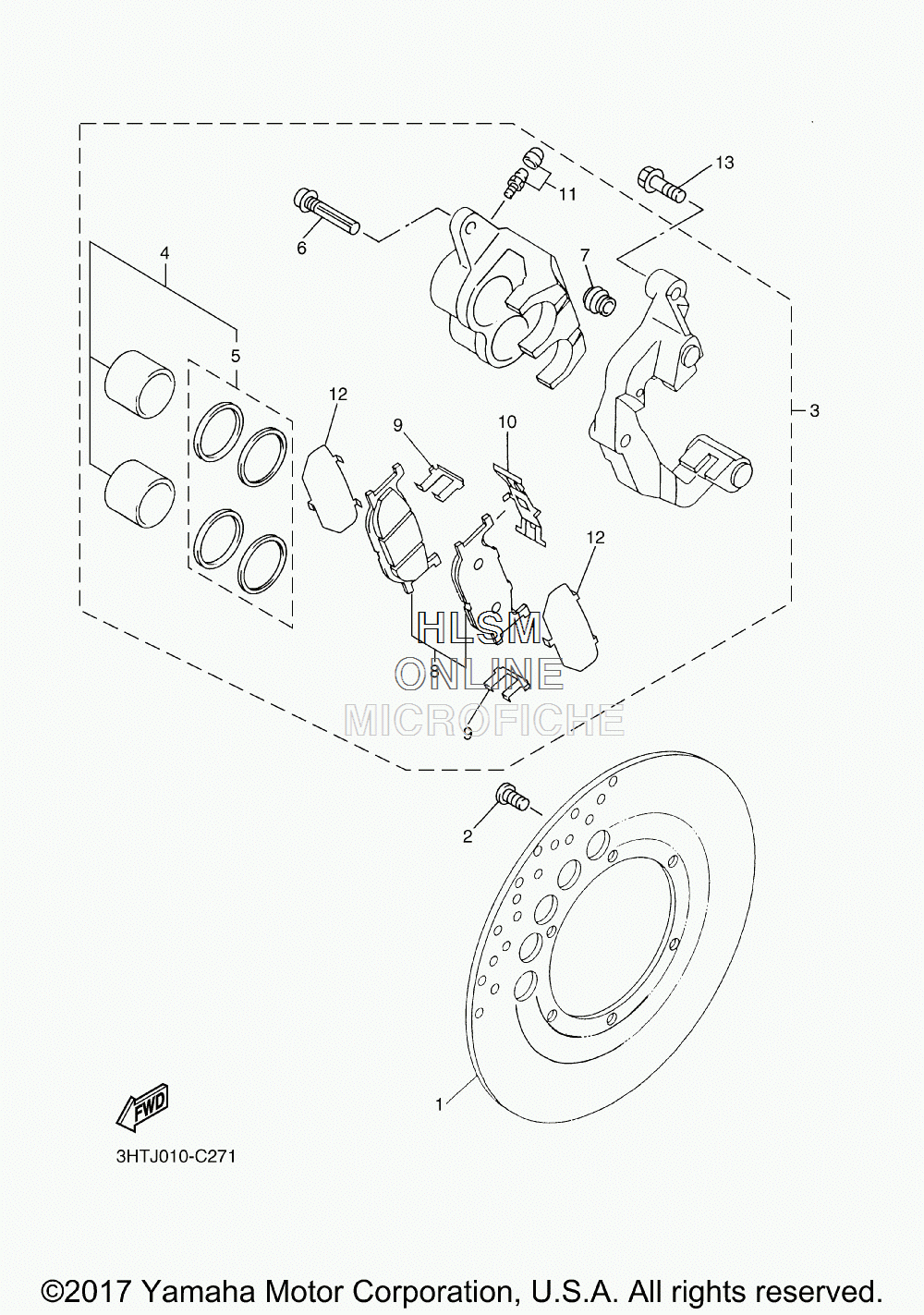

BRAKE - FRONT CALIPER для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
13JB-2582U-10-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
290111-08003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
33HT-2580U-20-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
43YX-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53JB-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65JW-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
84TR-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
103YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1151L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
124DN-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
1390105-10638-00 BOLT, FLANGEBOLT, FLANGE
