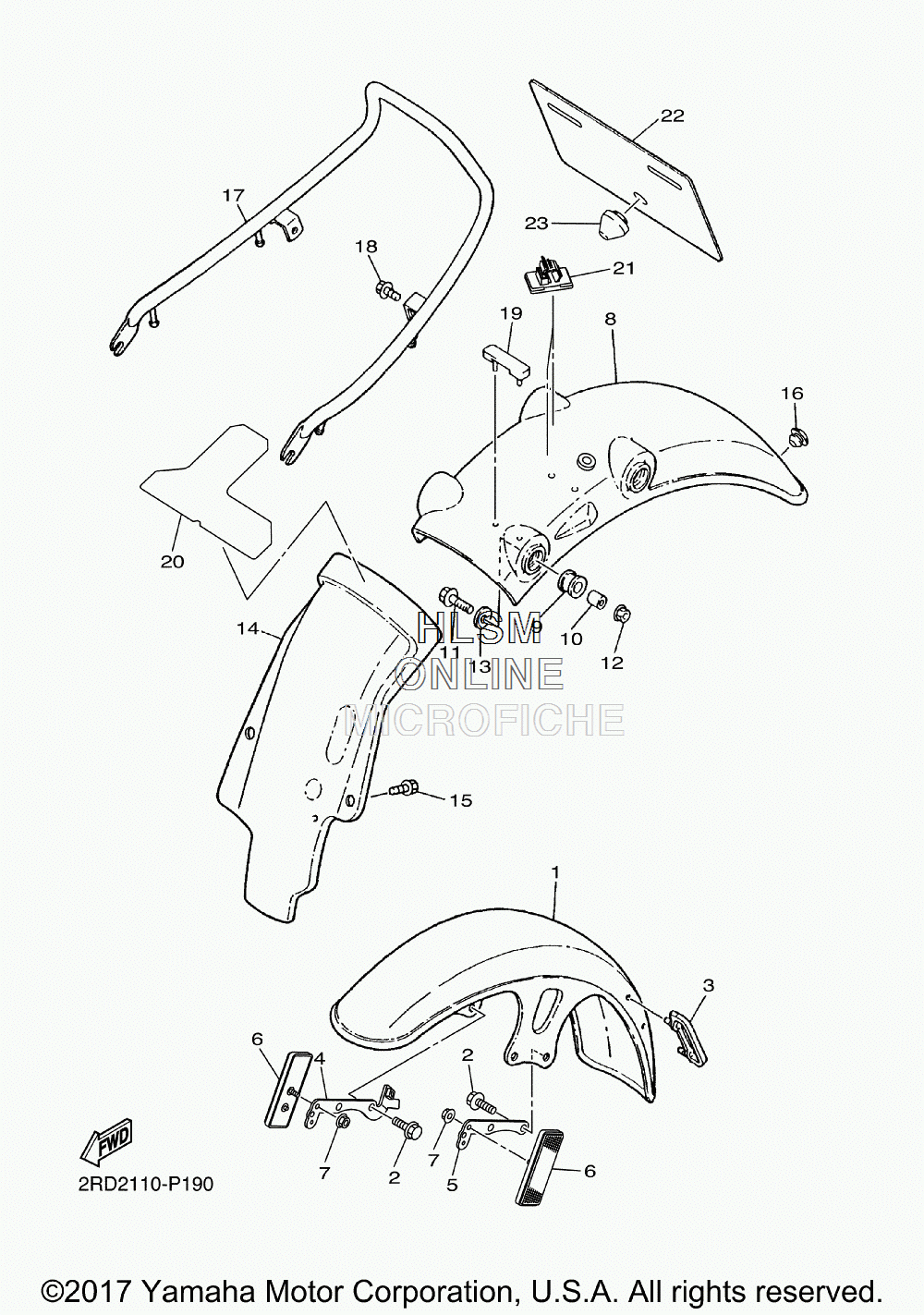

FENDER - FRONT / REAR для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
11JN-21510-20-93 FRONT FENDER COMP. (CM - CHROME PLATED)FRONT FENDER COMP. (CM - CHROME PLATED)
-
295807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
33Y6-21518-00-00 HOLDER, CABLEHOLDER, CABLE
-
42RD-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
52RD-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
611H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
795707-05500-00 NUT, FLANGENUT, FLANGE
-
82J2-21610-11-93 REAR FENDER COMP. (CM - CHROME PLATED)REAR FENDER COMP. (CM - CHROME PLATED)
-
9168-21639-00-00 DAMPER 2DAMPER 2
-
1090387-08258-00 COLLARCOLLAR
-
1195807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1295707-08500-00 NUT, FLANGENUT, FLANGE
-
1390201-08766-00 WASHER, PLATEWASHER, PLATE
-
142J2-21629-01-00 GUARD, MUDGUARD, MUD
-
1590119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690338-07043-00 PLUGPLUG
-
173GW-21645-00-00 STAY, REARSTAY, REAR
-
1895827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
193HT-21637-00-00 CLAMP, WIRECLAMP, WIRE
-
203HT-21669-00-00 SEALSEAL
-
2190464-62085-00 CLAMPCLAMP
-
222RD-28189-00-00 PLATE, NUMBER SUPPORTPLATE, NUMBER SUPPORT
-
233HT-21649-00-00 DAMPERDAMPER
