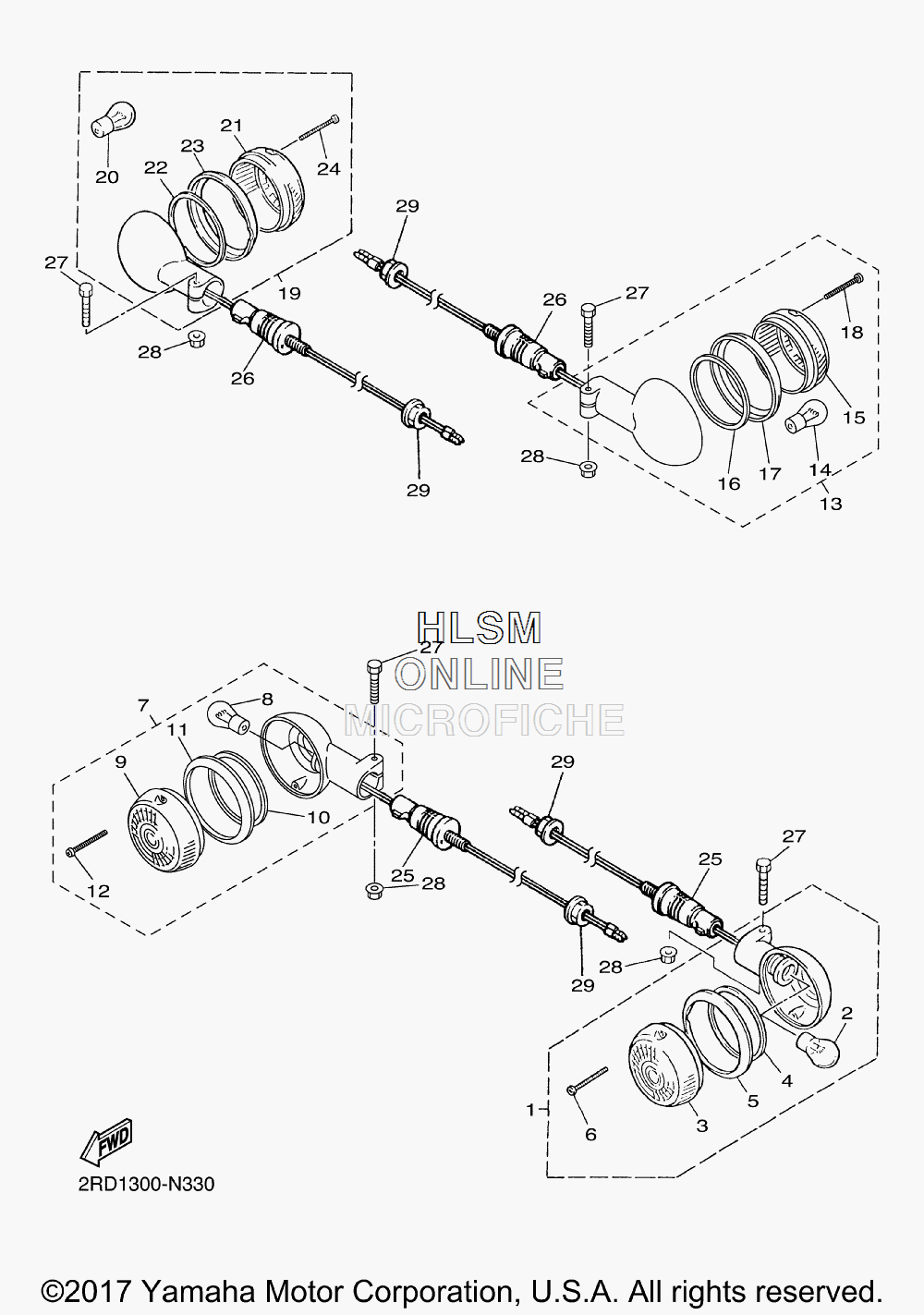

FLASHER LIGHT для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
12RD-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
2256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
342X-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
41D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
51D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
72RD-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
8256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
942X-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
101D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
111D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
1257M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
131AA-83330-K9-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
14256-83311-70-00 ...BULB (12V-27W)...BULB (12V-27W)
-
1542X-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
161D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
171D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
1857M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
191AA-83340-K9-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
20256-83311-70-00 ...BULB (12V-27W)...BULB (12V-27W)
-
2142X-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
221D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
231D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
2457M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
251AA-83318-00-00 STAY,FLASHER 1STAY,FLASHER 1
-
261AA-83328-00-00 STAY,FLASHER 2STAY,FLASHER 2
-
2797004-06030-00 BOLTBOLT
-
2895704-06500-00 NUT, FLANGENUT, FLANGE
-
2995707-12500-00 NUT, FLANGENUT, FLANGE
