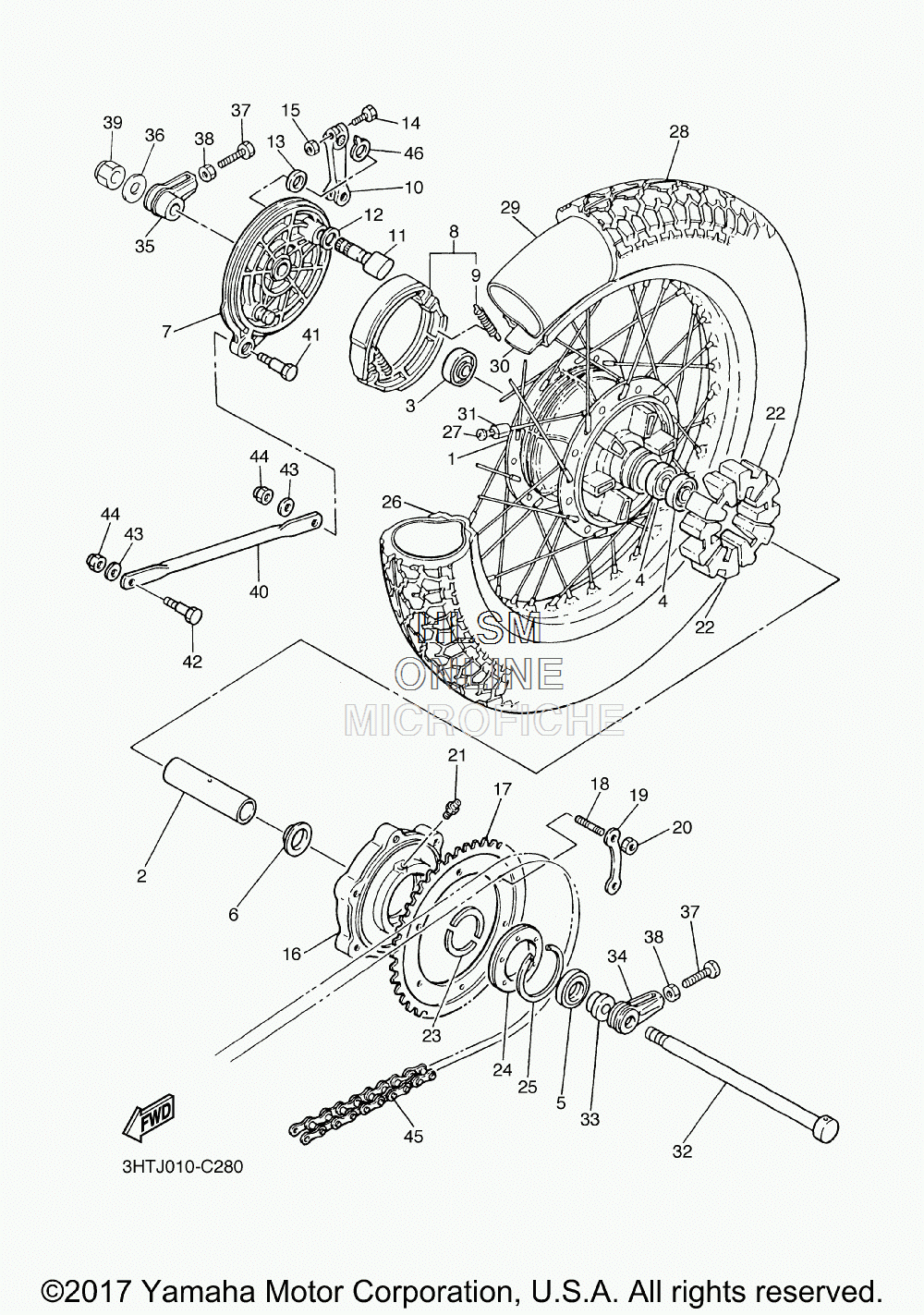

WHEEL - REAR для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
11E6-25311-00-38 HUB, REAR (CLP - CLEAR W/ BUFF)HUB, REAR (CLP - CLEAR W/ BUFF)
-
290560-17311-00 SPACERSPACER
-
393306-20348-00 BEARINGBEARING
-
493306-20348-00 BEARINGBEARING
-
593102-25061-00 OIL SEALOIL SEAL
-
6146-25315-00-00 FLANGE, SPACERFLANGE, SPACER
-
71E6-25321-12-38 PLATE, BRAKE SHOE (CLP - CLEAR W/ BUFF)PLATE, BRAKE SHOE (CLP - CLEAR W/ BUFF)
-
83GW-W253A-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
990507-20002-00 ...SPRING, TENSION...SPRING, TENSION
-
102J4-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
114L0-25351-00-00 CAMSHAFTCAMSHAFT
-
12148-25353-00-00 SHIM, CAMSHAFTSHIM, CAMSHAFT
-
13148-25359-00-00 SEAL, CAMSHAFTSEAL, CAMSHAFT
-
1490101-06278-00 BOLTBOLT
-
1595307-06600-00 NUTNUT
-
161E6-25366-00-35 CLUTCH, HUBCLUTCH, HUB
-
173HT-25456-20-00 SPROCKET, DRIVEN (56T)SPROCKET, DRIVEN (56T)
-
1890116-08218-00 BOLT, STUDBOLT, STUD
-
19583-25412-00-00 WASHERWASHER
-
2090170-08193-00 NUTNUT
-
2193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
222J2-25364-00-00 DAMPERDAMPER
-
231E6-25318-00-00 STOPPER, HUBSTOPPER, HUB
-
241E6-25319-01-00 SEAL, HUB DUSTSEAL, HUB DUST
-
2593450-78080-00 CIRCLIPCIRCLIP
-
2694421-18401-00 RIM (2.15-18)RIM (2.15-18)
-
2748U-25304-10-00 SPOKE SET, REARSPOKE SET, REAR
-
2894111-18020-00 TIRE (110/90-18M/C 61S BT45R)TIRE (110/90-18M/C 61S BT45R)
-
2994211-18003-00 TUBE (110/90-18 MC)TUBE (110/90-18 MC)
-
3094340-18086-00 BAND, RIM (2.50-18)BAND, RIM (2.50-18)
-
313HT-25398-00-00 BALANCER, WHEEL (15G)BALANCER, WHEEL (15G)
-
32150-25381-02-00 AXLE, WHEELAXLE, WHEEL
-
3390387-17530-00 COLLARCOLLAR
-
3448U-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
3548U-25389-01-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
3690201-164H4-00 WASHER, PLATEWASHER, PLATE
-
3790101-08034-00 BOLTBOLT
-
3895304-08700-00 NUTNUT
-
3995604-16100-00 NUT, UNUT, U
-
403H0-25371-00-00 BAR, TENSIONBAR, TENSION
-
4190109-085G1-00 BOLTBOLT
-
4290109-08003-00 BOLTBOLT
-
4392903-08200-00 WASHER, PLAINWASHER, PLAIN
-
4495607-08100-00 NUT, UNUT, U
-
4594582-34130-00 CHAIN (D.I.D 428HV2-130LE)CHAIN (D.I.D 428HV2-130LE)
-
464H7-2533A-02-00 PLATE, INDICATORPLATE, INDICATOR
