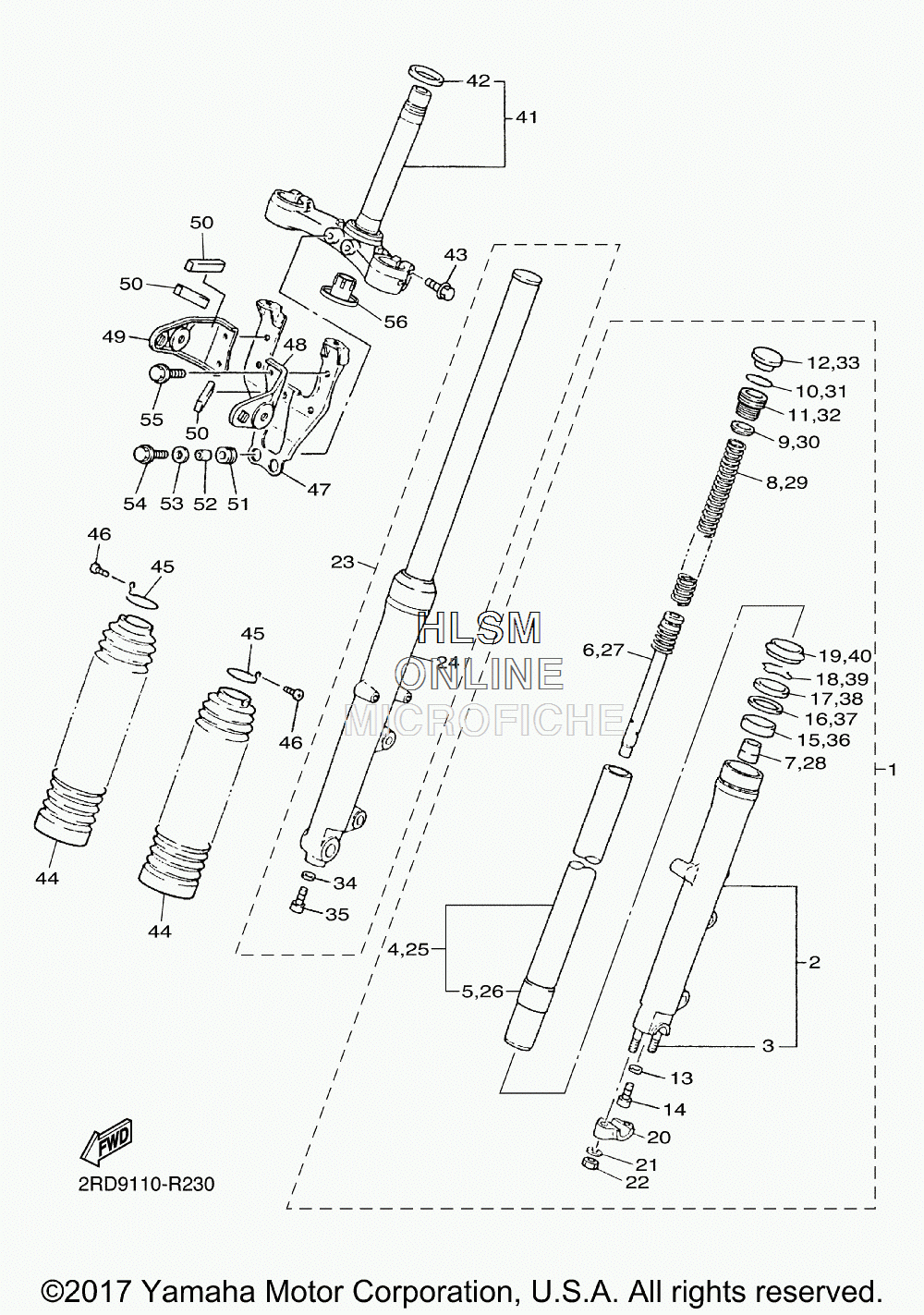

SUSPENSION - FRONT FORK для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
13HT-23102-10-00 FRONT FORK ASSY (LEFT)FRONT FORK ASSY (LEFT)
-
23HT-23126-10-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
390116-08261-00 ......BOLT, STUD......BOLT, STUD
-
43HT-23110-10-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
55JX-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
63HT-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
75JX-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
83HT-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
91JN-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
101T3-23114-50-00 ...GASKET...GASKET
-
112J4-23111-30-00 ...BOLT, CAP...BOLT, CAP
-
121T3-23168-50-00 ...CAP, FRONT FORK...CAP, FRONT FORK
-
13509-23158-L0-00 ...GASKET...GASKET
-
14278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
155JX-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
165K5-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
175JX-23145-00-00 ...OIL SEAL...OIL SEAL
-
184A1-23156-00-00 ...RING, SNAP...RING, SNAP
-
195JX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
20341-23167-50-00 ...HOLDER, AXLE...HOLDER, AXLE
-
2192901-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
223HT-23357-10-00 ...NUT...NUT
-
233HT-23103-10-00 FRONT FORK ASSY (RIGHT)FRONT FORK ASSY (RIGHT)
-
243HT-23136-10-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
253HT-23110-10-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
265JX-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
273HT-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
285JX-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
293HT-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
301JN-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
311T3-23114-50-00 ...GASKET...GASKET
-
322J4-23111-30-00 ...BOLT, CAP...BOLT, CAP
-
331T3-23168-50-00 ...CAP, FRONT FORK...CAP, FRONT FORK
-
34509-23158-L0-00 ...GASKET...GASKET
-
35278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
365JX-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
375K5-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
385JX-23145-00-00 ...OIL SEAL...OIL SEAL
-
394A1-23156-00-00 ...RING, SNAP...RING, SNAP
-
405JX-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
413HT-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
42164-23462-00-00 ...SEAL, DUST...SEAL, DUST
-
4395814-08035-00 BOLT, FLANGEBOLT, FLANGE
-
441JN-23191-00-00 BOOT (GLOSS BLACK)BOOT (GLOSS BLACK)
-
451JN-23192-00-00 BANDBAND
-
4698506-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
472J2-23121-04-00 COVER, UPPER 1COVER, UPPER 1
-
483HT-23131-00-00 STEY, HEADLIGHTSTEY, HEADLIGHT
-
493HT-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
503HT-2317J-01-00 DAMPER 1DAMPER 1
-
5190480-14052-00 GROMMETGROMMET
-
5290387-07573-00 COLLARCOLLAR
-
5390201-06380-00 WASHER PLAINWASHER PLAIN
-
5495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
5595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
564KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
