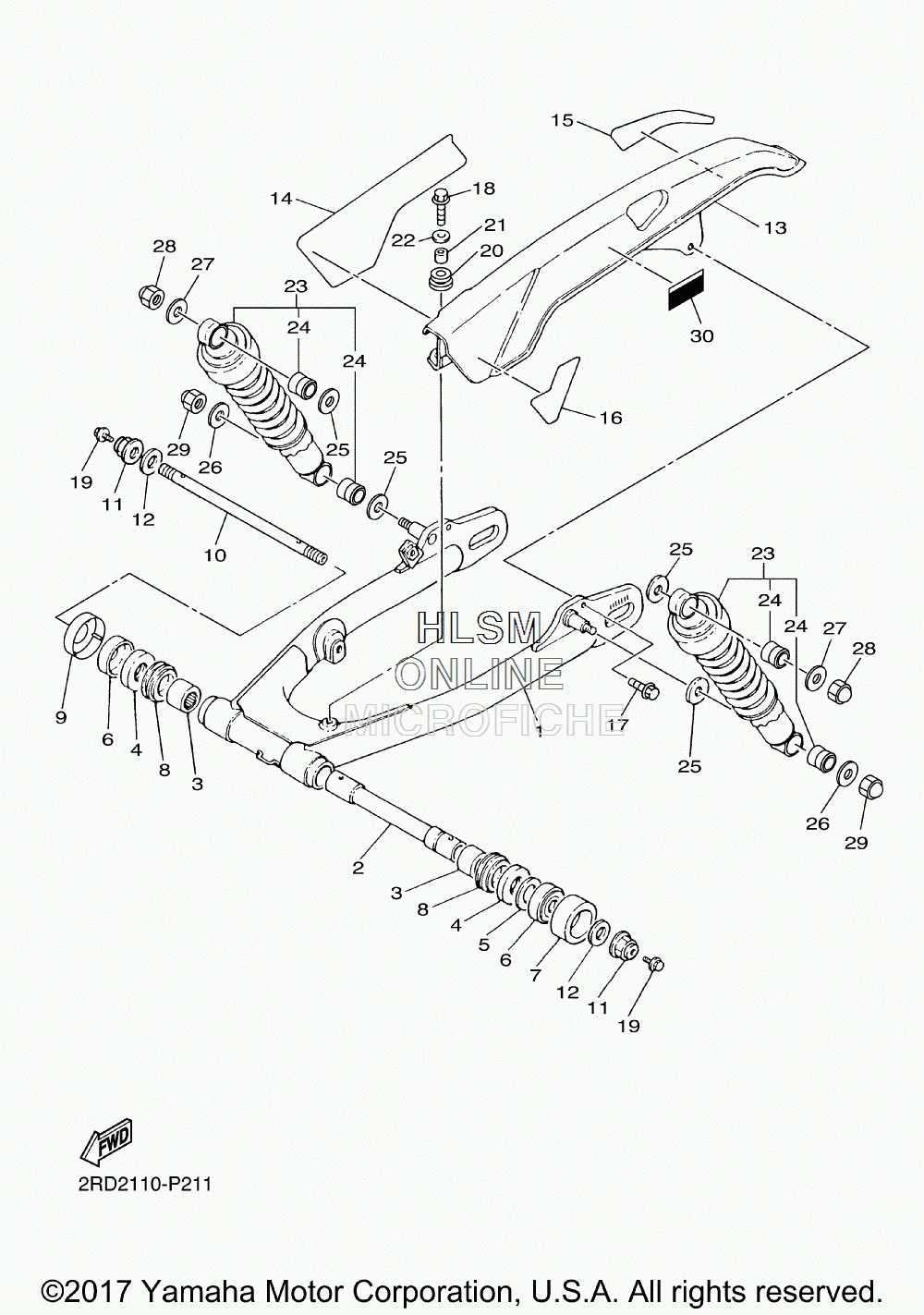

SUSPENSION - REAR ARM для Yamaha SR400 - 2017 года выпуска`
-
№АртикулНазвание
-
13H0-22110-01-00 REAR ARM COMP. (YB - YAMAHA BLACK)REAR ARM COMP. (YB - YAMAHA BLACK)
-
233Y-22124-00-00 BUSH 2BUSH 2
-
393317-22208-00 BEARINGBEARING
-
493342-22205-00 BEARINGBEARING
-
590201-22284-00 WASHER, PLATEWASHER, PLATE
-
62K8-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
7431-22151-03-00 SEAL, GUARDSEAL, GUARD
-
893108-35004-00 OIL SEAL (35-41-8)OIL SEAL (35-41-8)
-
93HT-22156-10-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
1033Y-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
1195604-16100-00 NUT, UNUT, U
-
1290201-164H4-00 WASHER, PLATEWASHER, PLATE
-
132J2-22311-01-00 CASE, CHAINCASE, CHAIN
-
143HT-2214F-00-00 DAMPER 1DAMPER 1
-
153HT-2214G-00-00 DAMPER 2DAMPER 2
-
163HT-22358-00-00 SEAL 1SEAL 1
-
1795807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1895807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1995024-06010-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
2090480-13197-00 GROMMETGROMMET
-
2190387-060A3-00 COLLARCOLLAR
-
2290201-06008-00 WASHER, PLATEWASHER, PLATE
-
231JN-22210-20-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
24447-22216-20-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
2590201-14215-00 WASHER, PLATEWASHER, PLATE
-
2690201-10696-00 WASHER, PLATEWASHER, PLATE
-
2790201-105R9-00 WASHER, PLATEWASHER, PLATE
-
2890176-10009-00 NUT, CAPNUT, CAP
-
2990176-10073-00 NUT, CROWNNUT, CROWN
-
302RD-21668-00-00 LABEL, TIRELABEL, TIRE
