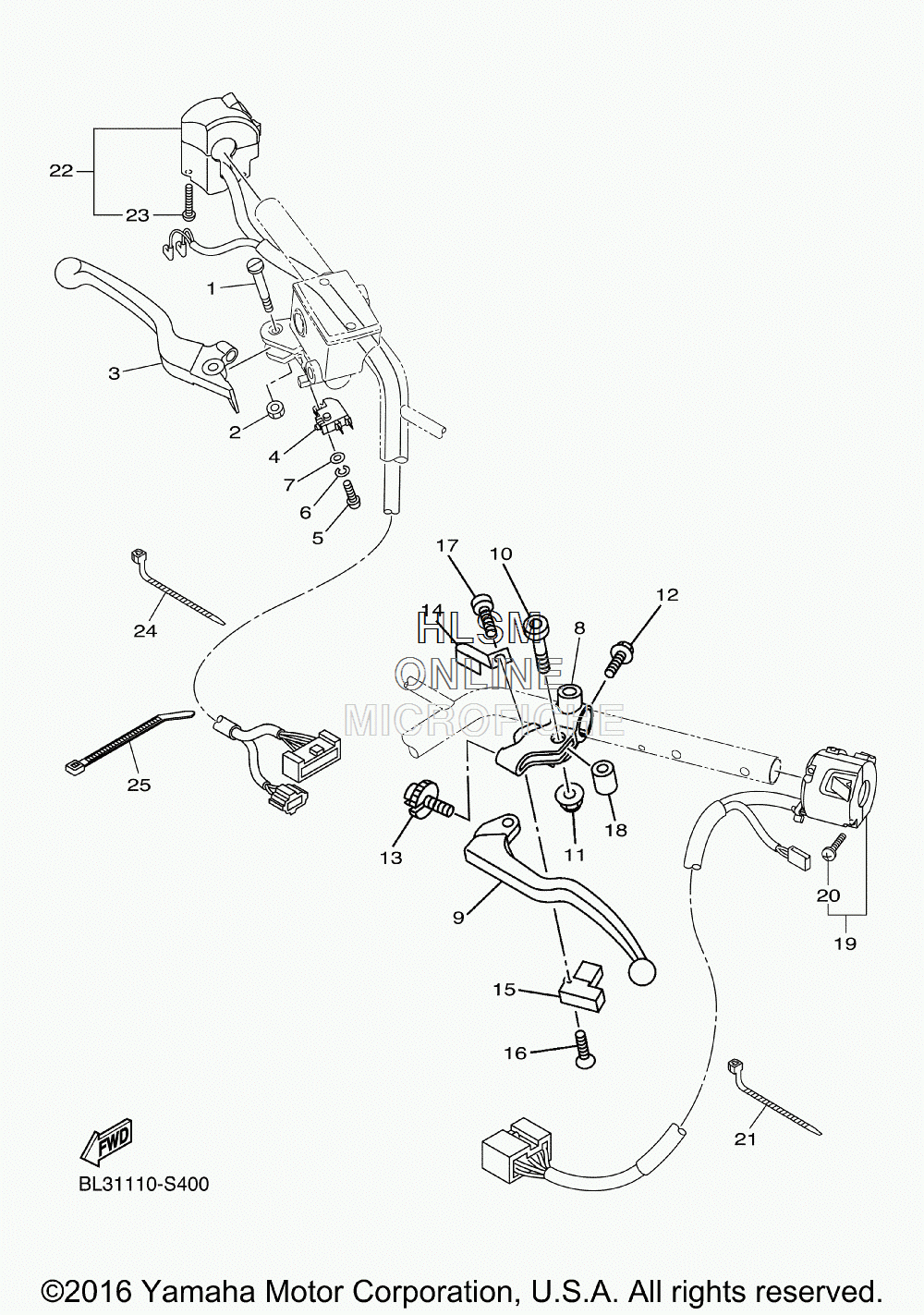

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
15VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
295617-06100-00 NUT, UNUT, U
-
3B33-83922-00-00 LEVER 2LEVER 2
-
41HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
598502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692902-04100-00 WASHER, SPRINGWASHER, SPRING
-
792902-04600-00 WASHER, PLATEWASHER, PLATE
-
81B3-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
95EB-83912-03-00 LEVER 1LEVER 1
-
102C0-83945-00-00 BOLT, LEVERBOLT, LEVER
-
1195607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
1295027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
135LV-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
144XV-83929-00-00 PLATE, SPRINGPLATE, SPRING
-
153YX-82917-01-00 SWITCHSWITCH
-
1698704-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1798507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
185JJ-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
19BL3-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
2098507-04025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2190464-13073-00 CLAMPCLAMP
-
22BL3-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2398507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2490464-13073-00 CLAMPCLAMP
-
2590465-10098-00 CLAMPCLAMP
