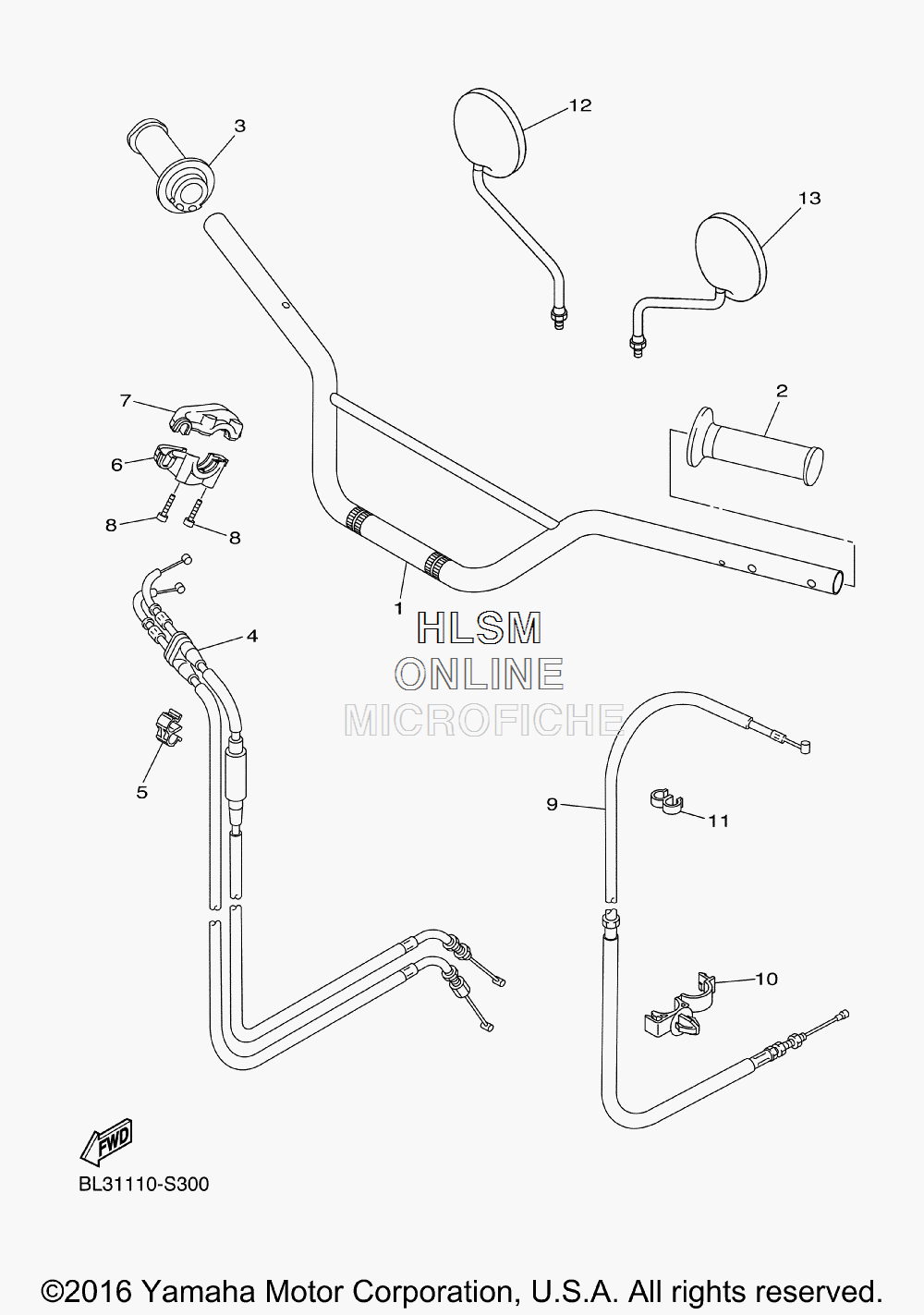

HANDLEBAR W/ CABLES для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
1BL3-26111-00-00 HANDLEBARHANDLEBAR
-
24GY-26241-00-00 GRIPGRIP
-
3BL3-26240-00-00 GRIP ASSYGRIP ASSY
-
4BL3-26301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
590468-15139-00 CLIPCLIP
-
61WS-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
71WS-26282-00-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
891317-05040-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
9BL3-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1090464-17003-00 CLAMPCLAMP
-
1190464-09M31-00 CLAMPCLAMP
-
125Y1-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
135Y1-26290-10-00 BACK MIRROR ASSY (L.H)BACK MIRROR ASSY (L.H)
