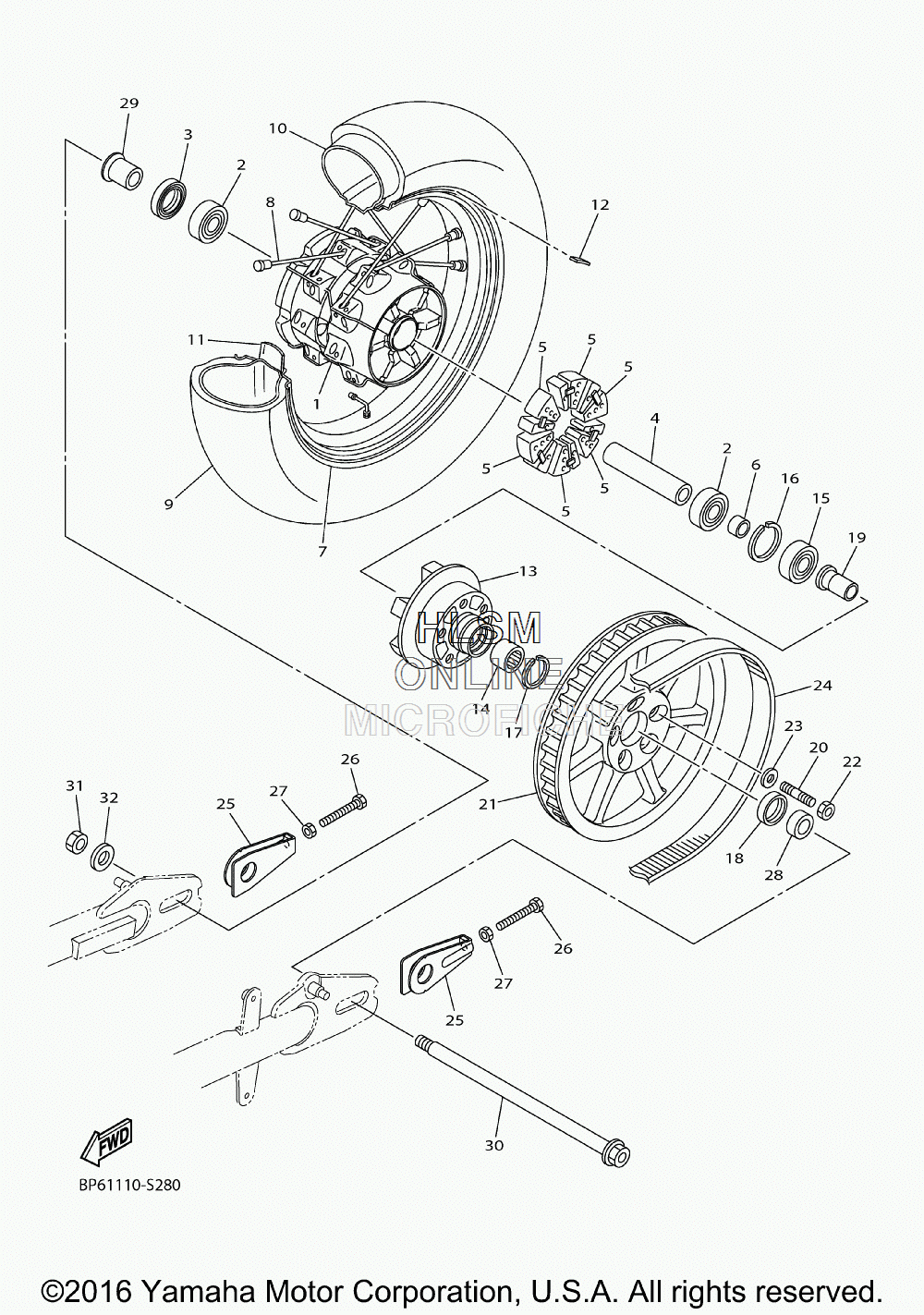

WHEEL - REAR для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
1BP6-25311-00-00 HUB, REARHUB, REAR
-
293306-20417-00 BEARINGBEARING
-
393106-28023-00 OIL SEALOIL SEAL
-
41TP-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
54WM-25364-00-00 DAMPERDAMPER
-
61TP-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
794435-17013-00 RIMRIM
-
8BL3-25304-00-00 SPOKE SET, REARSPOKE SET, REAR
-
994114-17009-00 TIRE (BRIDGESTONE)TIRE (BRIDGESTONE)
-
1094214-17003-00 TUBE (140A160/70D-R17 M/C TR-4) (BRIDGESTONE)TUBE (140A160/70D-R17 M/C TR-4) (BRIDGESTONE)
-
1194314-17035-00 BAND, RIM (MT4.00X17) (BRIDGESTONE)BAND, RIM (MT4.00X17) (BRIDGESTONE)
-
1223P-25398-00-00 BALANCER, WHEELBALANCER, WHEEL
-
131TP-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1493311-32698-00 BEARINGBEARING
-
1593306-30437-00 BEARINGBEARING
-
1699009-52500-00 CIRCLIPCIRCLIP
-
1793450-35163-00 CIRCLIPCIRCLIP
-
1893106-30004-00 OIL SEALOIL SEAL
-
194WM-25376-10-00 COLLAR, WHEELCOLLAR, WHEEL
-
2095612-12630-00 BOLT, STUDBOLT, STUD
-
211TP-25470-00-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
2295614-12100-00 NUT, UNUT, U
-
2390201-12045-00 WASHER, PLATEWASHER, PLATE
-
241TP-46241-10-00 BELTBELT
-
251TP-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2690101-08777-00 BOLTBOLT
-
2795317-08700-00 NUTNUT
-
2890387-20034-00 COLLARCOLLAR
-
2990387-202U8-00 COLLARCOLLAR
-
301TP-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3190185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-18020-00 WASHER, PLATEWASHER, PLATE
