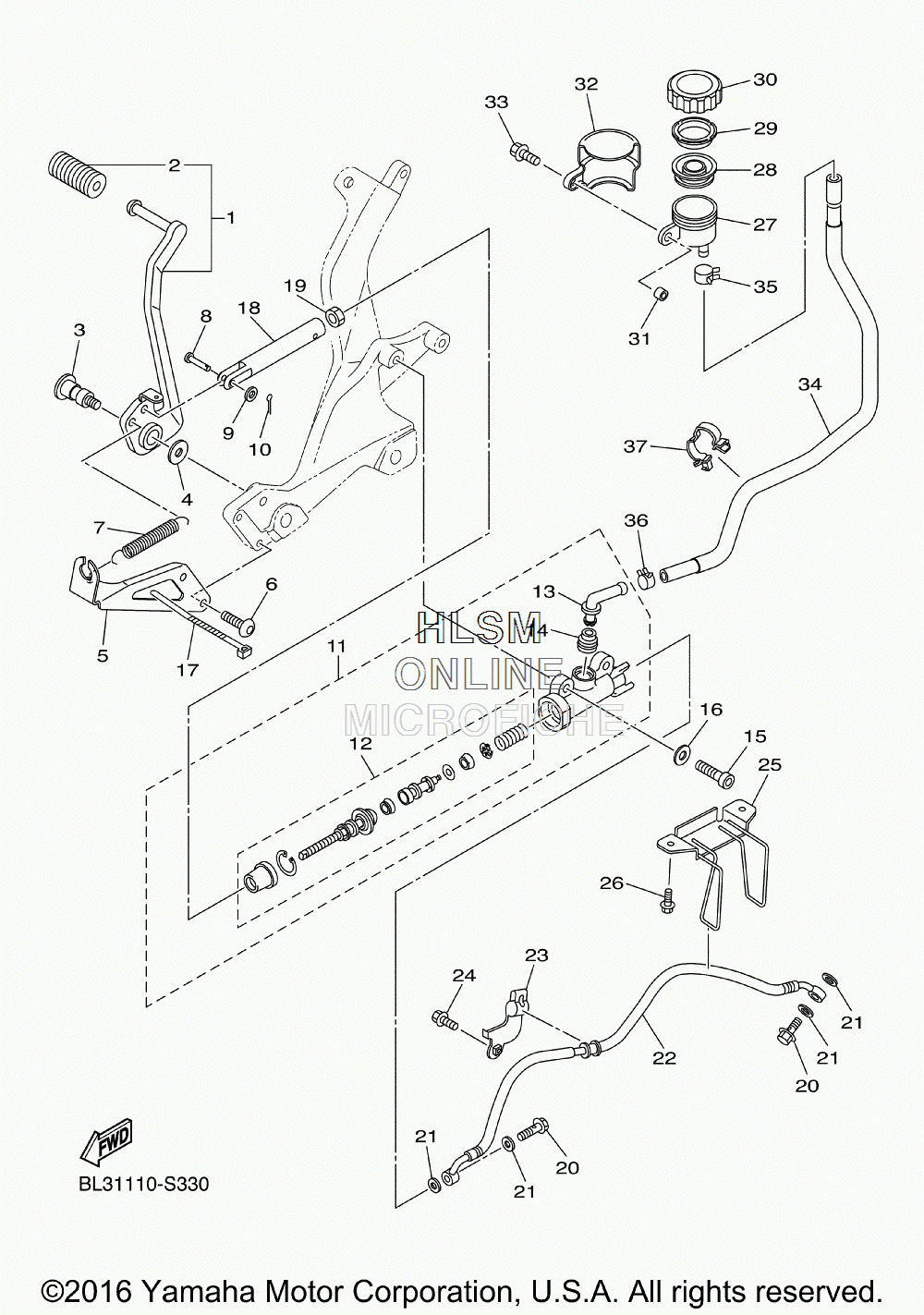

BRAKE - REAR MASTER CYLINDER для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
1BL3-27200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
35XT-27434-00-00 BOLTBOLT
-
490201-08366-00 WASHER, PLATEWASHER, PLATE
-
5B33-27263-00-00 BRACKET 1BRACKET 1
-
692017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790506-16009-00 SPRING, TENSIONSPRING, TENSION
-
891702-06018-00 PIN, CLEVISPIN, CLEVIS
-
992902-06200-00 WASHERWASHER
-
1091401-20015-00 PIN, COTTERPIN, COTTER
-
11B33-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
121TP-25808-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
13B33-2582A-00-00 ...JOINT...JOINT
-
144BP-2585F-01-00 ...O-RING...O-RING
-
1591312-08025-00 BOLTBOLT
-
1690201-082H0-00 WASHER, PLATEWASHER, PLATE
-
171UA-82591-00-00 BANDBAND
-
18B33-27222-00-00 JOINTJOINT
-
1995307-08600-00 NUTNUT
-
2090401-10020-00 BOLT, UNIONBOLT, UNION
-
2190430-10005-00 GASKETGASKET
-
221TP-2581J-01-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
231TP-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2495022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
251TP-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2695022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2731A-25894-10-00 TANK, RESERVOIRTANK, RESERVOIR
-
28360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
292GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
302KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
3190387-06072-00 COLLARCOLLAR
-
324NK-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3390105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
34B33-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
3590467-14057-00 CLIPCLIP
-
3690467-12191-00 CLIPCLIP
-
3790464-23239-00 CLAMPCLAMP
