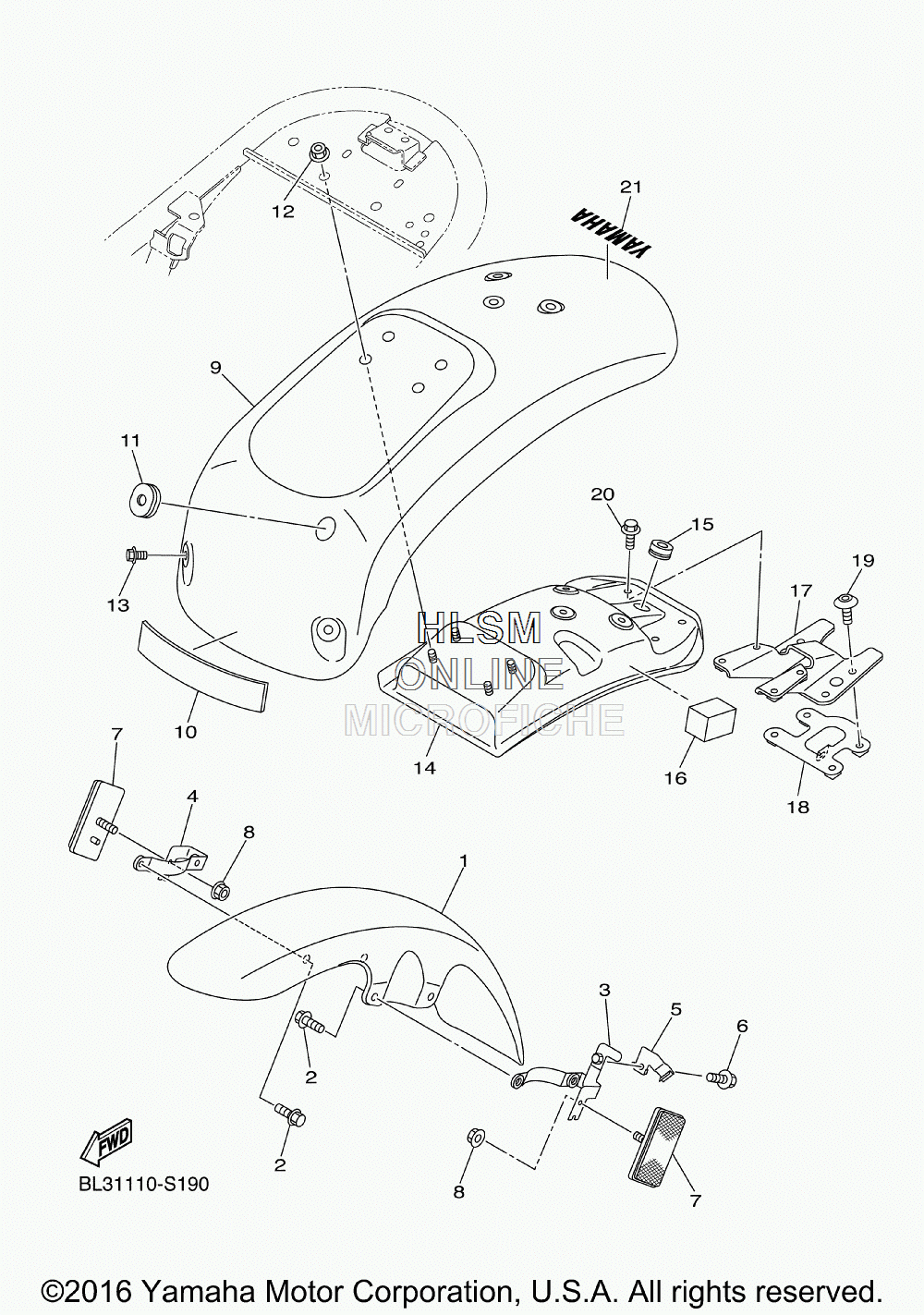

FENDER - FRONT / REAR для Yamaha SCR950 - 2017 года выпуска`
-
№АртикулНазвание
-
11TP-21510-00-P3 FRONT FENDER COMP. (OPT) (VRC1)FRONT FENDER COMP. (OPT) (VRC1)
-
11TP-21510-00-PB FRONT FENDER COMP. (OPT) (DBNM8)FRONT FENDER COMP. (OPT) (DBNM8)
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
31TP-21587-00-00 STAY 1STAY 1
-
41TP-21588-00-00 STAY 2STAY 2
-
527D-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
9BL3-21610-00-P0 REAR FENDER COMP. (OPT) (VRC1)REAR FENDER COMP. (OPT) (VRC1)
-
9BL3-21610-00-P1 REAR FENDER COMP. (OPT) (DBNM8)REAR FENDER COMP. (OPT) (DBNM8)
-
1090520-02013-00 DAMPER, PLATEDAMPER, PLATE
-
1190480-15061-00 GROMMETGROMMET
-
1295707-06500-00 NUT, FLANGENUT, FLANGE
-
1395807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
14BL3-21643-00-00 STAY, REARSTAY, REAR
-
1590480-14016-00 GROMMETGROMMET
-
1690520-20008-00 DAMPER, PLATEDAMPER, PLATE
-
17BL3-2164F-00-00 STAY 1STAY 1
-
183D7-2164G-00-00 STAY 2STAY 2
-
1990111-06089-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2199244-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
